Description

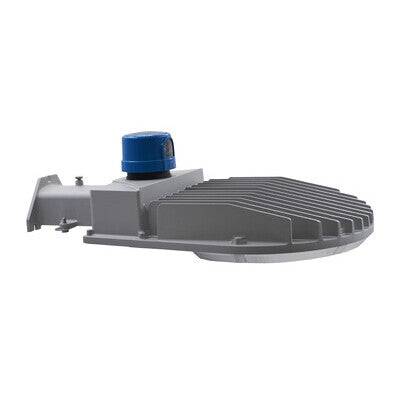

Dusk to Dawn 120W 70CRI 30/40/50K DIM Photocell
DTD/120W/7FCCT/UD/PC
-
Ordering Code:12357
- UPC Code: 031293123572
- UNSPSC: 39111544
F E A T U R E S
• 90% energy savings vs. traditional HID sources
• 13 years of maintenance-free operation with LED lifespan of 54,000 hours
• Instant-on with no warm-up, unlike HID
• Universal 120-277V photo control provides nighttime ON / daytime OFF
• Polyester powder coat gray finish for extra corrosion protection
• Suitable for wall or pole mount applications
• Multiple pole mounting options available for versatile use
• Designed for use with EiKO’s aluminum or steel poles; contact EiKO for package pricing
C E R T I F I C A T I O N S
• UL Listed for wet locations
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest
DLC qualification for efficacy and lumen maintenance
P E R F O R M A N C E
• Rated lifetime L70: 54,000 hours @ 104°F (40°C)
• 5,857lm @ 47W; 10,753lm @ 84W; 15,909lm @ 125W
• 6,247lm @ 45W; 11,137lm @ 80W; 16,102lm @ 120W
• 5000K CCT
• 5000/4000/3000K FIeldCCeT
• CRI: >70
General |
|
| Voltage Rating | 120-277
|
| Voltage Type | AC
|
| Watts | 120
|
| Lumens per Watt | 134
|
| Lumens | 16,102
|
| CCT | 3000/4000/5000
|
| CRI | >70
|
| Rated Life | 54,000
|
| Equivalent | 250 Watt Metal Halide or 200 Watt High Pressure Sodium
|
| Ambient Operating Temp Range | -40° C (-40° F) to 40° C (104° F)
|
| Approvals | cULus, DLC-P, FCC, IP65, RoHS Compliant
|
| California Title 20 | Exempt
|
| DLC Standard | False
|
| DLC Premium | True
|
| Energy Star | False
|
| Ingress Protection | IP65 |
