Description

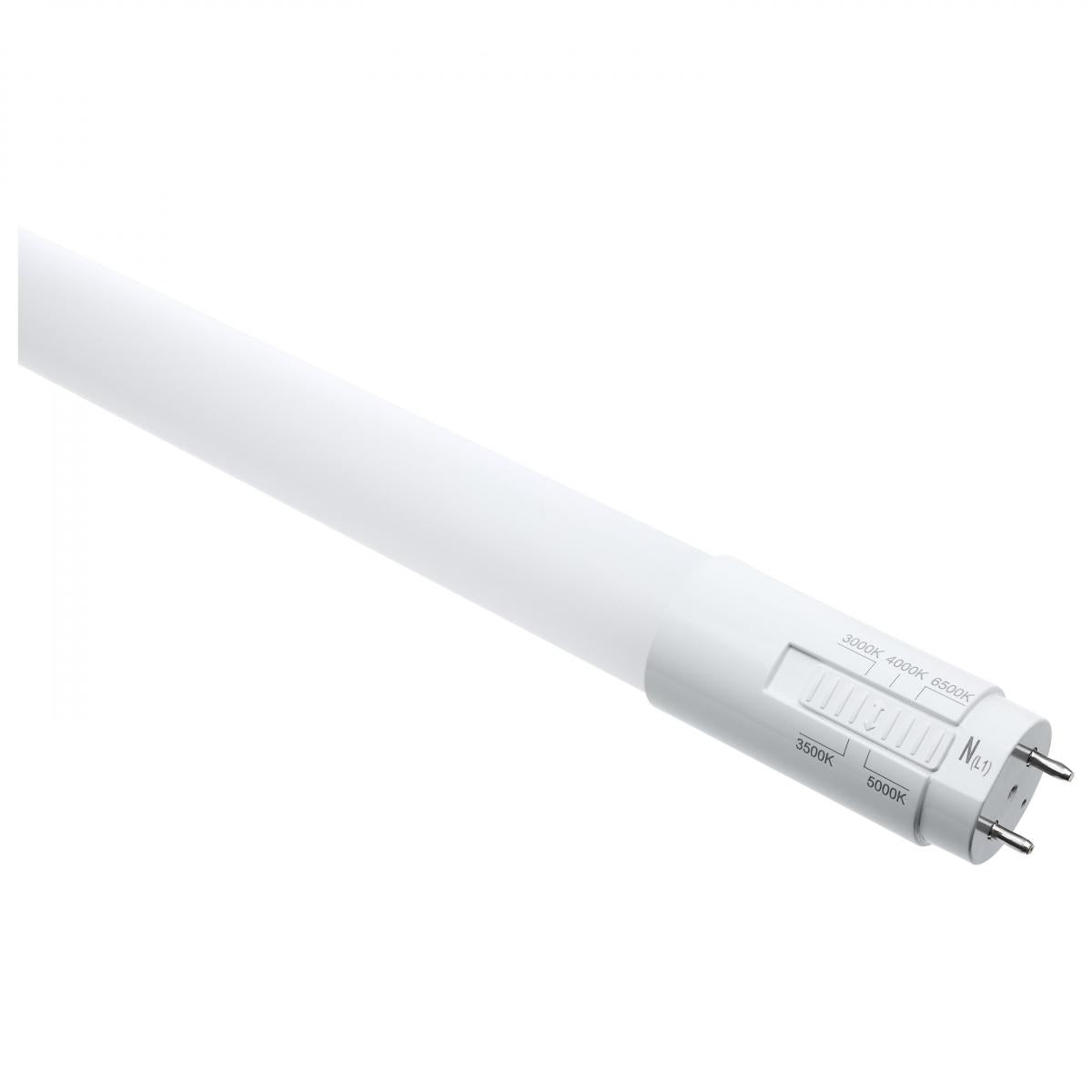

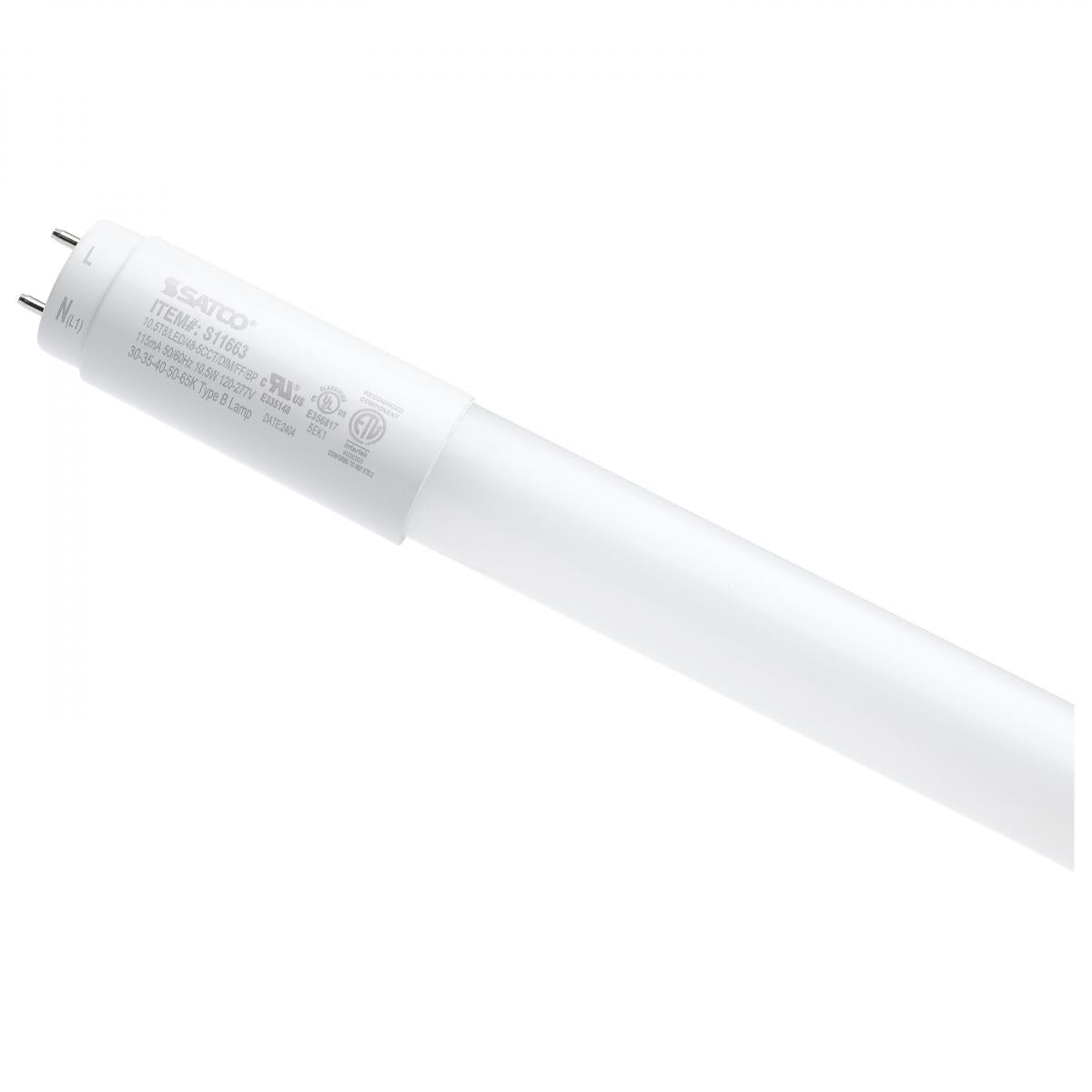

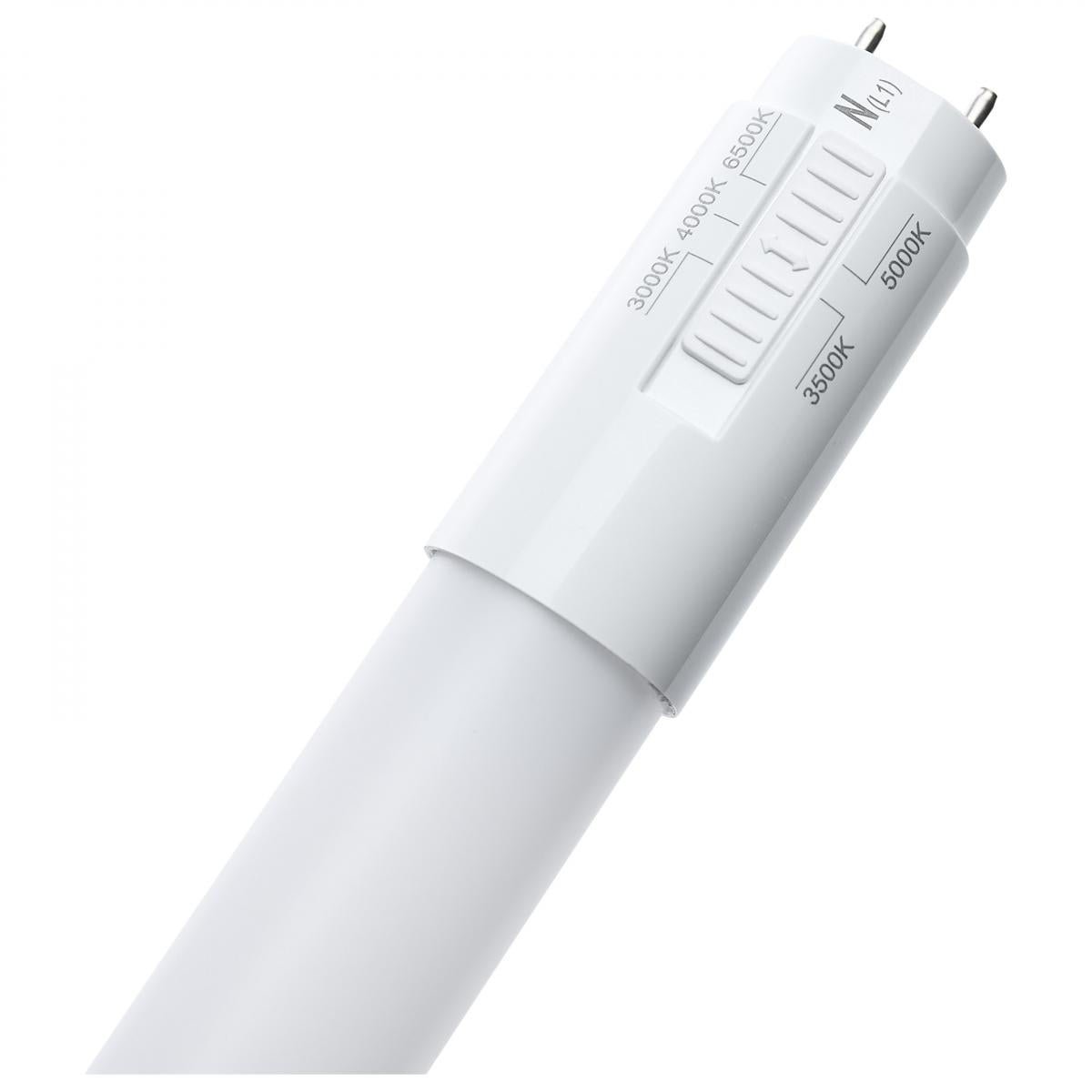

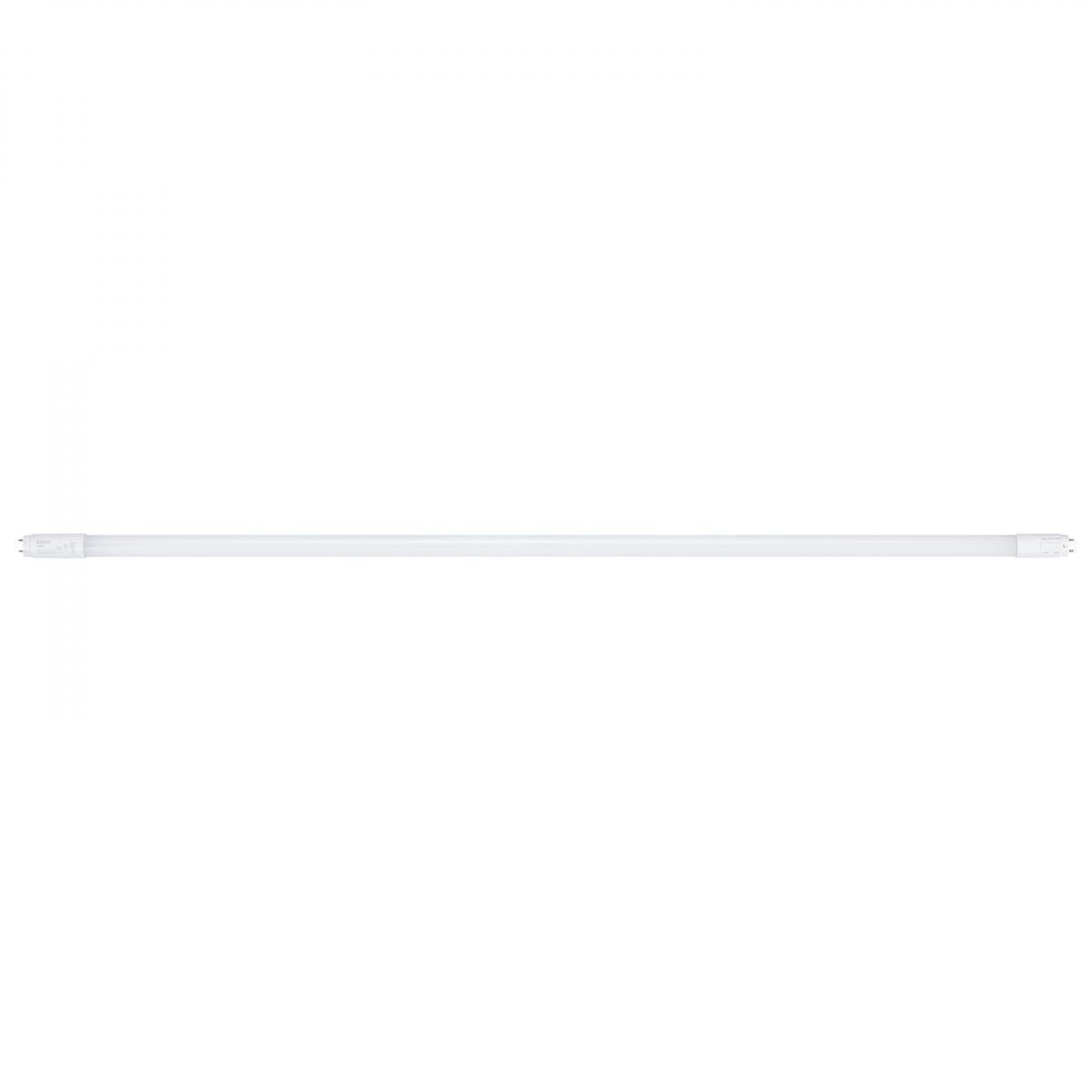

Dimmable 10.5 Watt T8 LED; 48 Inch; CCT Selectable; Type B Ballast Bypass; 120-277 Volt
Only sold in Case Quantities of 25
| Watts | 10.5W |
| Fluorescent Equivalent | 32W |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 48 |
| Finish | Frost |
| CCT (Kelvin) | 3000K/3500K/4000K/5000K/6500K |
| Temperature | Soft White to Daylight |
| CRI | 80+ |
| Lumens | 1600L/1650L/1700L/1700L/1650L |
| Beam Spread | 160 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Product Category | Linear |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 10.5W |
| Fluorescent Equivalent | 32W |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Ballast Type | Type B |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 3000K/3500K/4000K/5000K/6500K |
| Temperature | Soft White to Daylight |
| CRI | 80+ |
| Lumens | 1600L/1650L/1700L/1700L/1650L |
| Beam Spread | 160 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Reverse Phase or Phase Selectable |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| THD | <20% |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
Physical
| MOL | 47.2 |
| MOD | 1 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frost |
| Material | Glass |
| Housing Color | White |
| Weight (lb.) | 0.42 |
Additional Information
| Shatter-Proof Type | PET Coated |
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5-Years |
Compliance
| Safety Listing | cULus - Certified; cULus - Classified; cRUus - Recognized Component |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | S-VX6545 |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923116636 |
| Each Quantity | 1 |
| Each Length (in.) | 48.00 |
| Each Width (in.) | 1.18 |
| Each Height (in.) | 1.18 |
