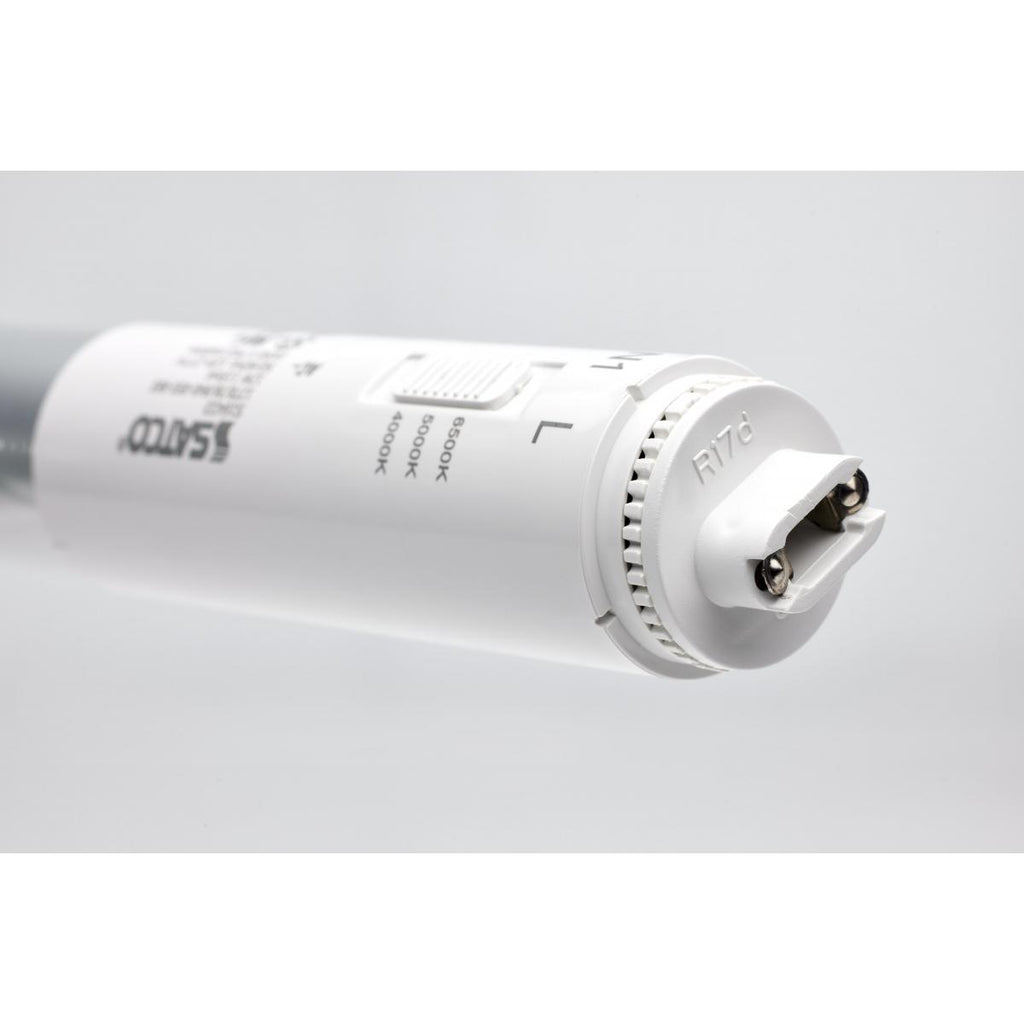

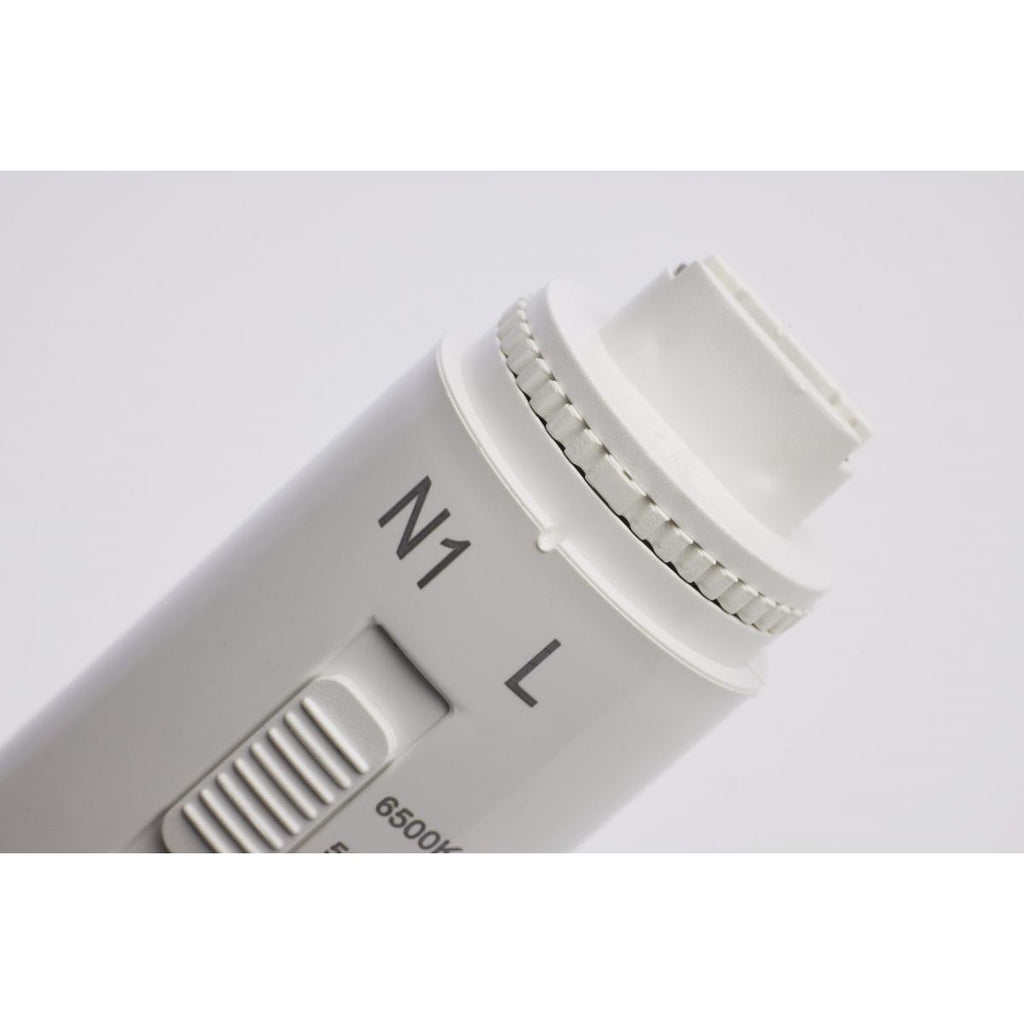

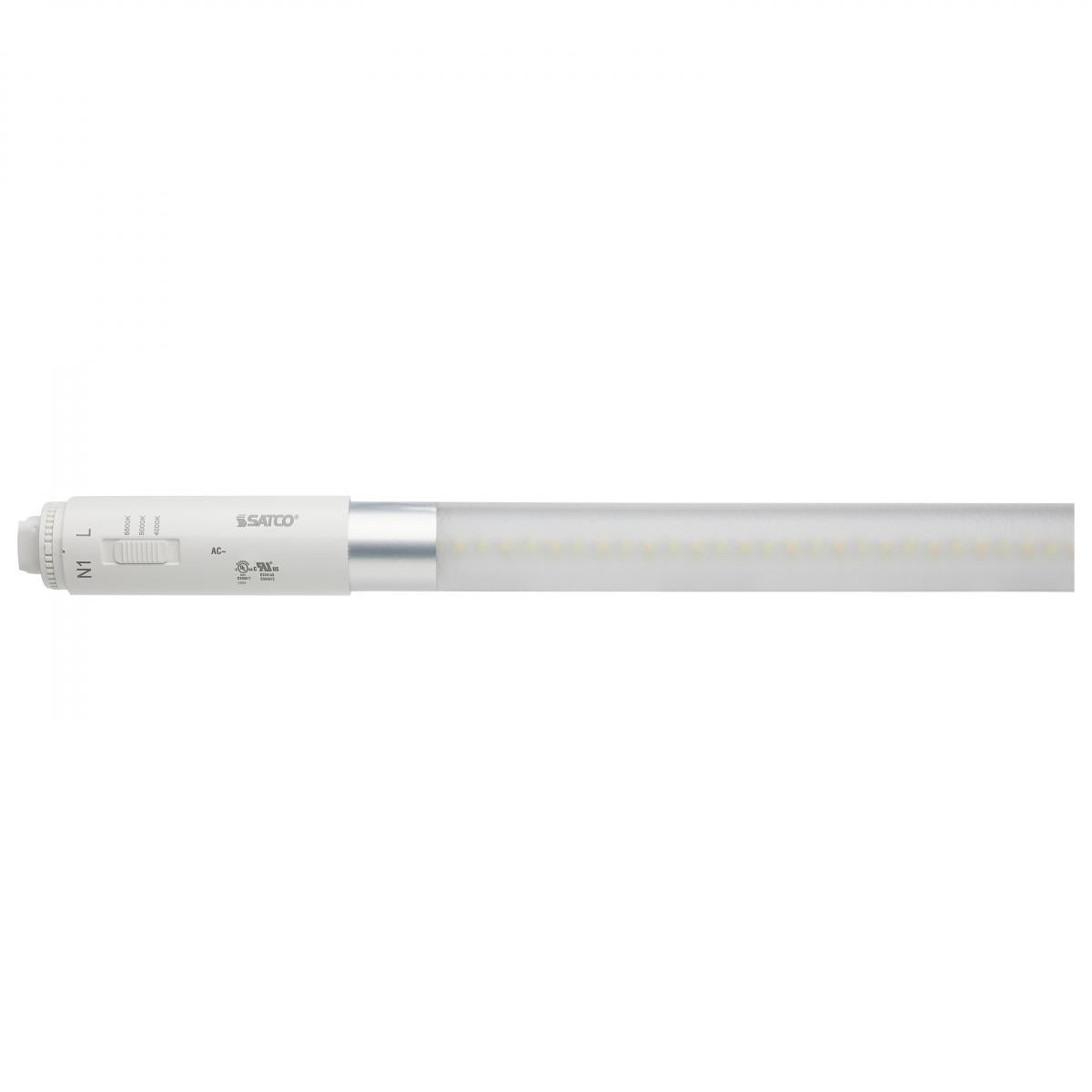

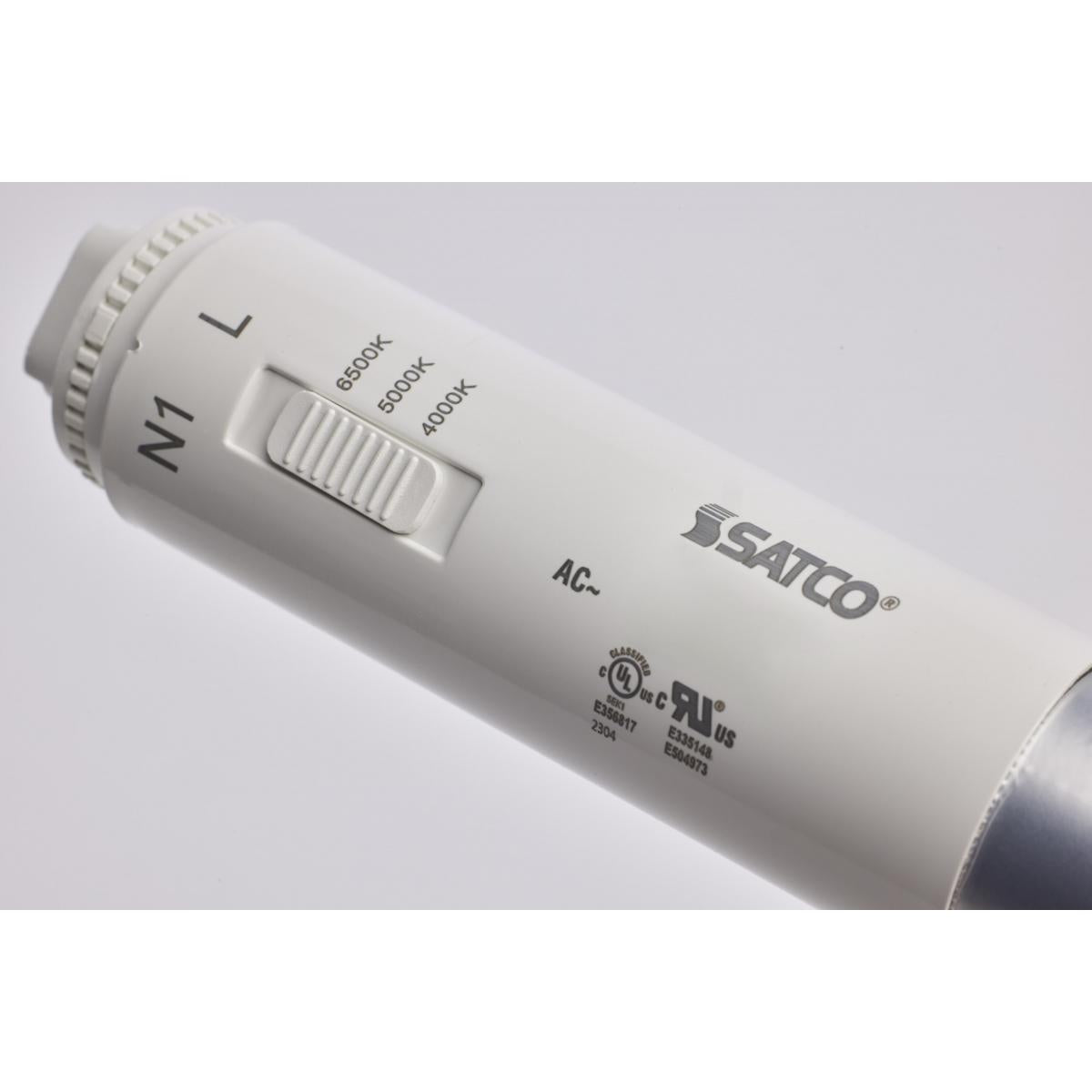

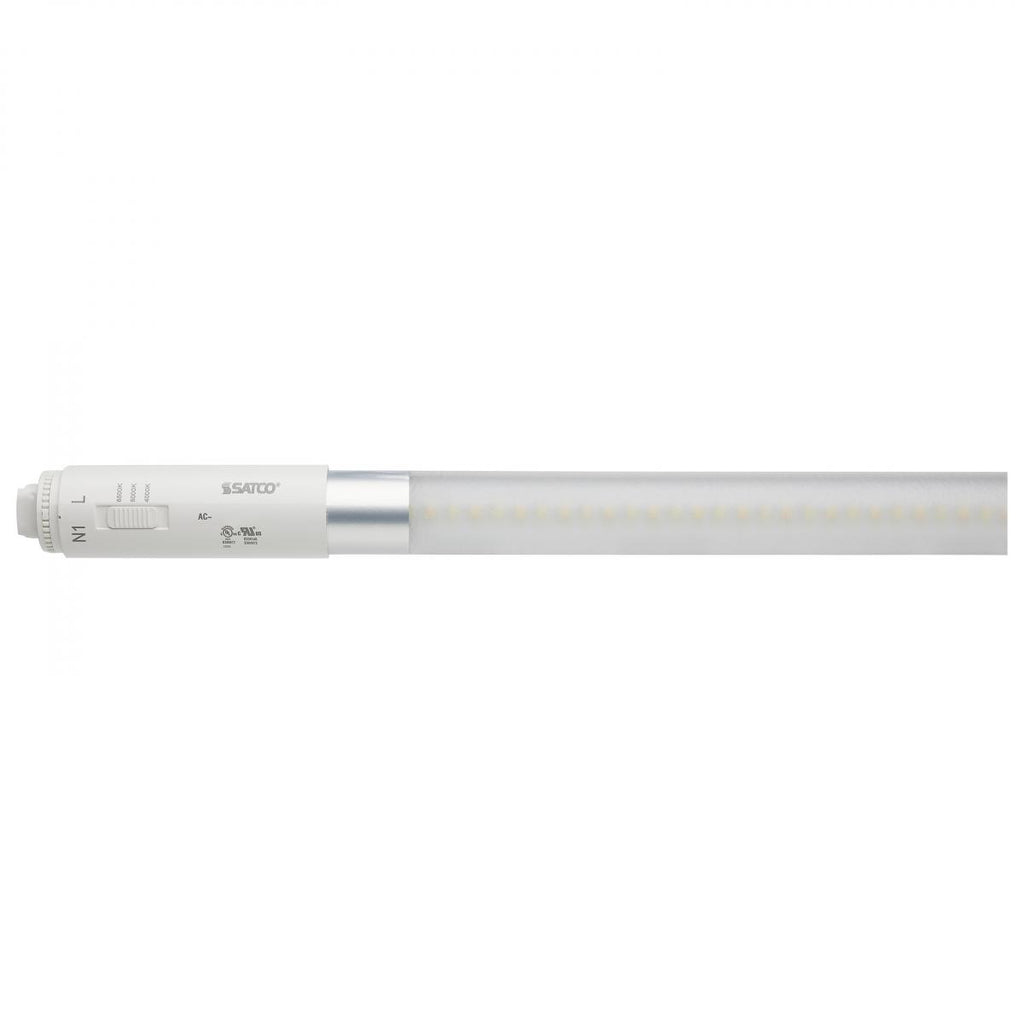

Case of 10- 3 ft. LED T8 Sign Lamps - CCT - 1750 Lumens - Type B - Operates Without Ballast

Part : S16433

Price:
Sale price$235.00

Please contact us for quantity discount


Description

Case of 10- 3 ft. LED T8 Sign Lamps - CCT - 1750 Lumens - Type B - Operates Without Ballast

Watts 12W
Incandescent Equivalent 50W
Fluorescent Equivalent 45W
Volts 120V-277V
Ballast Type Type B
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Nominal Length 36
Finish White
CCT (Kelvin) 4000K/5000K/6500K
Temperature Cool White to Daylight
CRI 80+
Lumens 1650L/1750L/1600L
Beam Spread 360
Dimmable Non-Dimmable
Hours Rated 50000
Product Category Linear
Lamp Type Linear
Technology LED
Electrical
Watts 12W
Incandescent Equivalent 50W
Fluorescent Equivalent 45W
Volts 120V-277V
Ballasting Requirements Ballast Bypass
Ballast Type Type B
Operating Frequency 50/60Hz
CCT (Kelvin) 4000K/5000K/6500K
Temperature Cool White to Daylight
CRI 80+
Lumens 1650L/1750L/1600L
Beam Spread 360
Dimmable Non-Dimmable
Power Factor 0.9
Hours Rated 50000
THD 25%
Operating Temperature -20C (-4F) to +45C (+113F)
Physical
MOL 33.81
MOD 1.13
Nominal Length 36
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Finish White
Material Polycarbonate (PC)
Lens Finish Frost
Lens Material Plastic
Housing Color White
Weight (lb.) 0.47
Additional Information
Tube Guard Use No
Installation Notes Not for use in vapor tight fixtures.
Rated For Enclosed Fixture Yes
Warranty 5-Years
Compliance
Safety Listing cULus - Certified; cULus - Classified; cRUus - Recognized Component
Location Rating Damp
DLC Approved No
RoHS Compliant Yes
FCC Compliant Yes
NSF Approved ETL Sanitation listed (conforms to NSF)
SDS Sheet LED Lamp
Packaging
Each UPC 045923164330
Each Quantity 1
Each Length (in.) 36.00
Each Width (in.) 1.15
Each Height (in.) 1.15
