Description

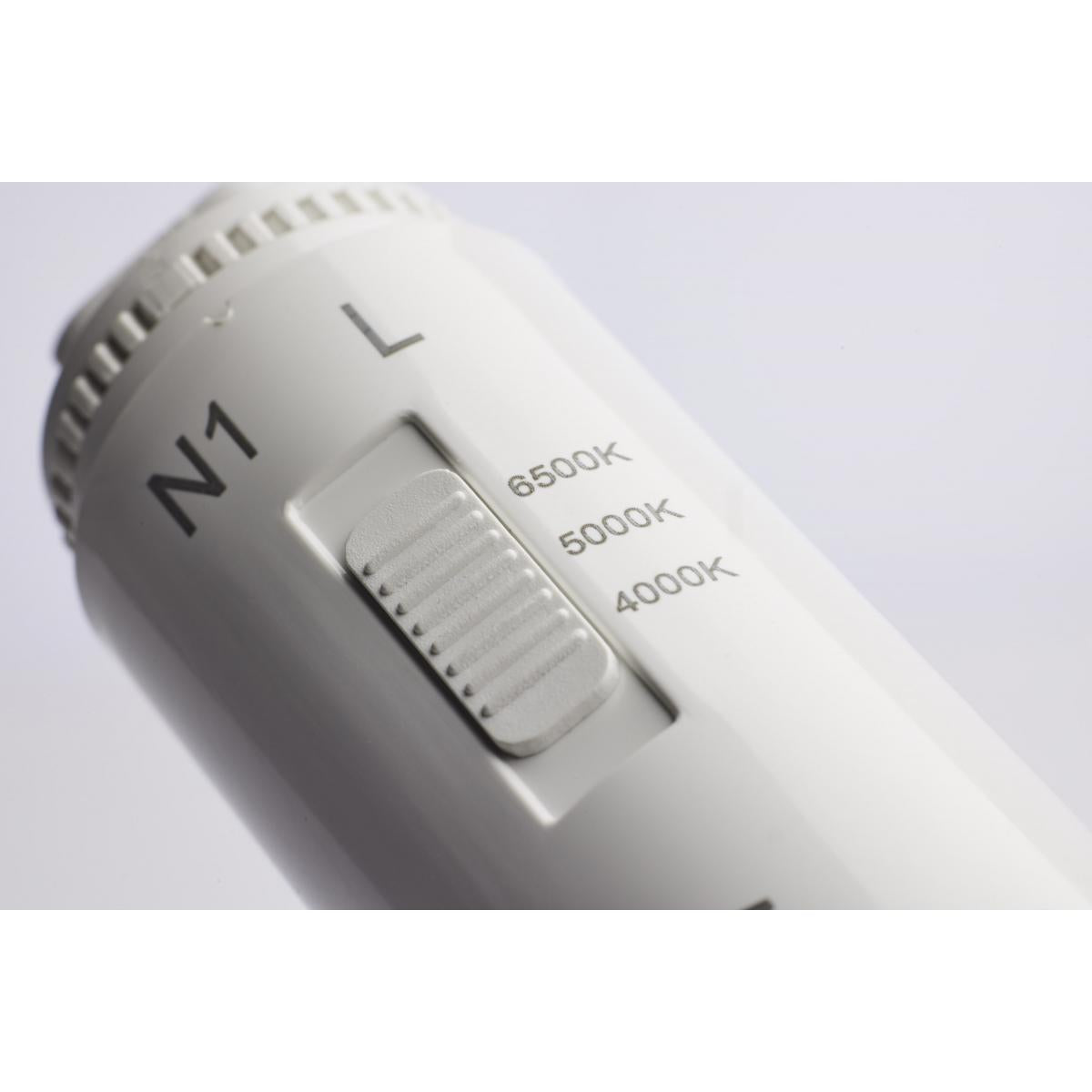

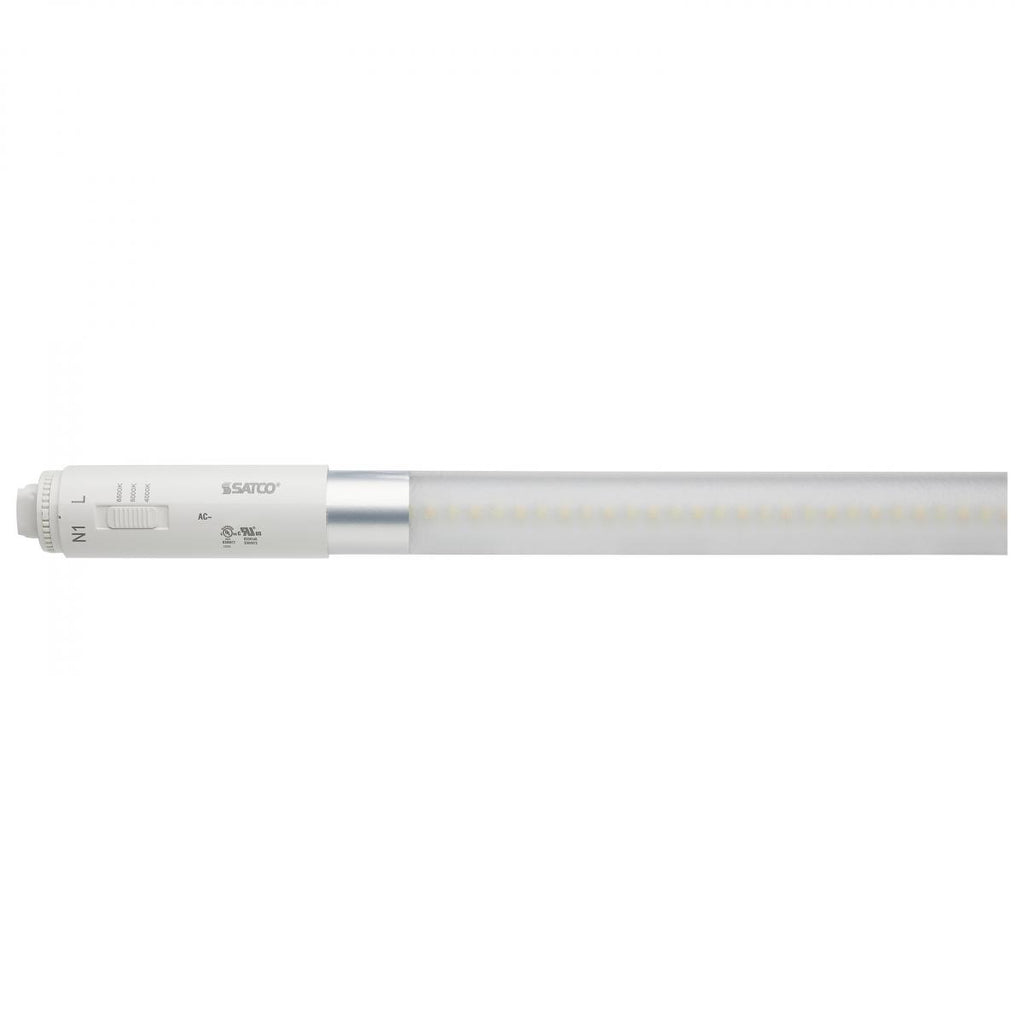

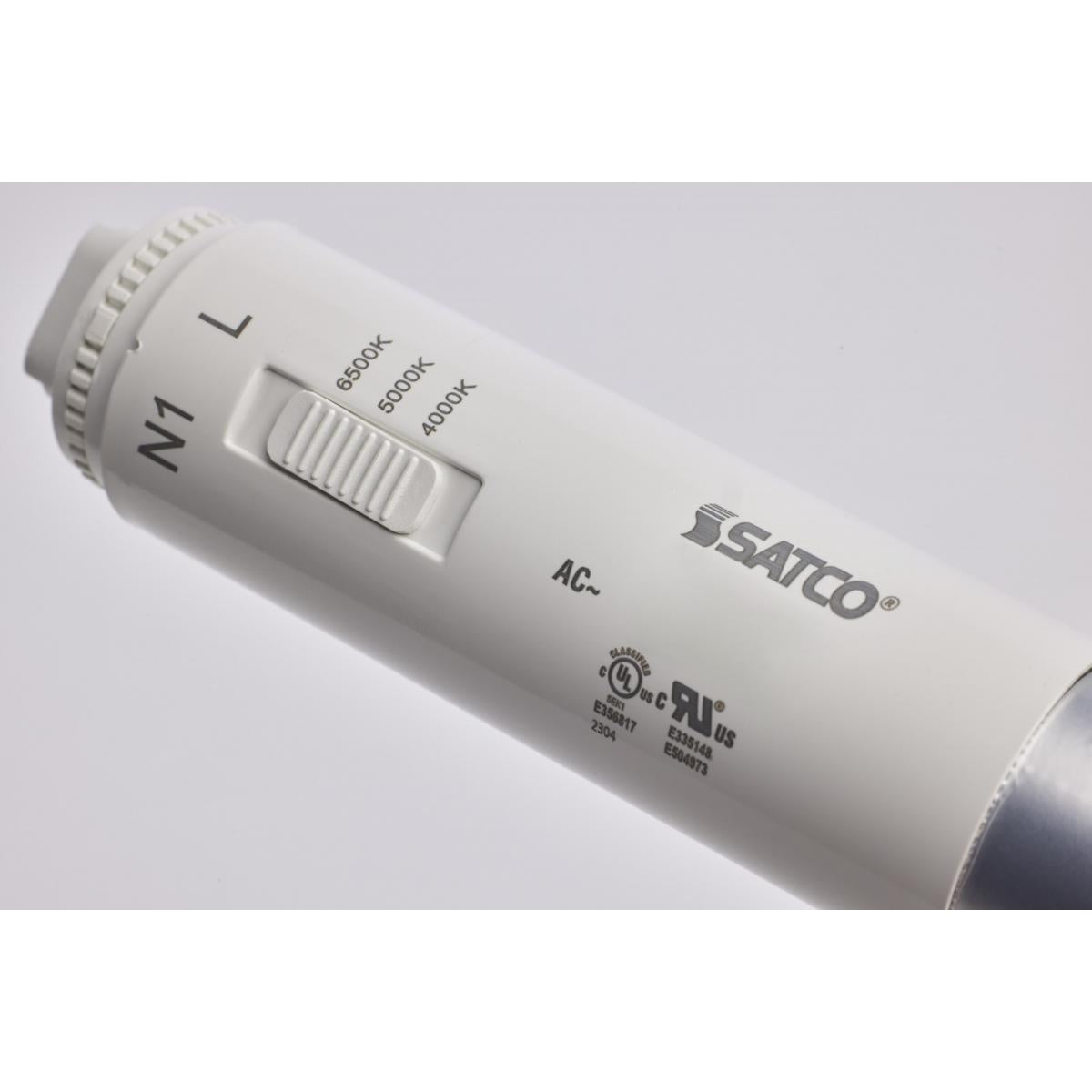

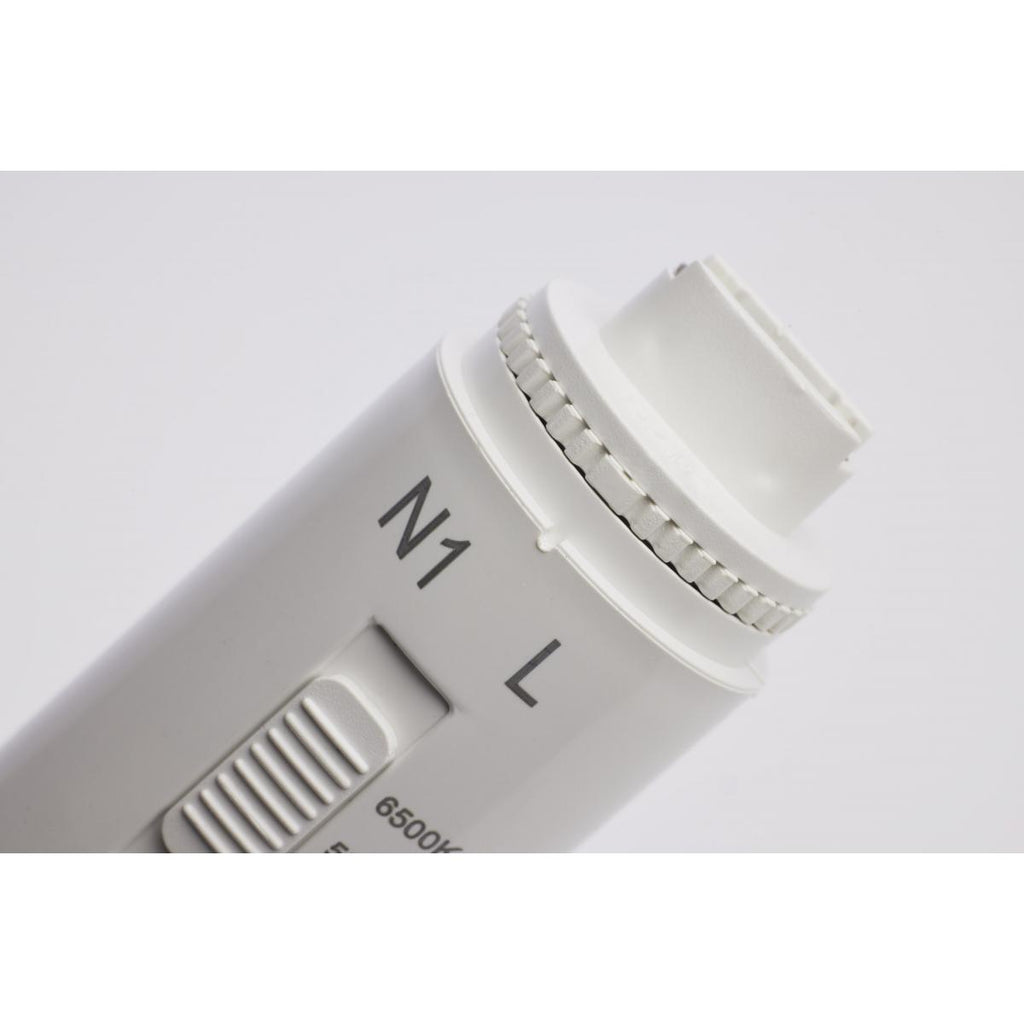

Case of 10 18 Watt LED T8 Sign Lamps; CCT Selectable; Single or Double Ended; Type B
| Watts | 18W |
| Incandescent Equivalent | 90W |
| Fluorescent Equivalent | 60W |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Recessed Double Contact HO/VHO |

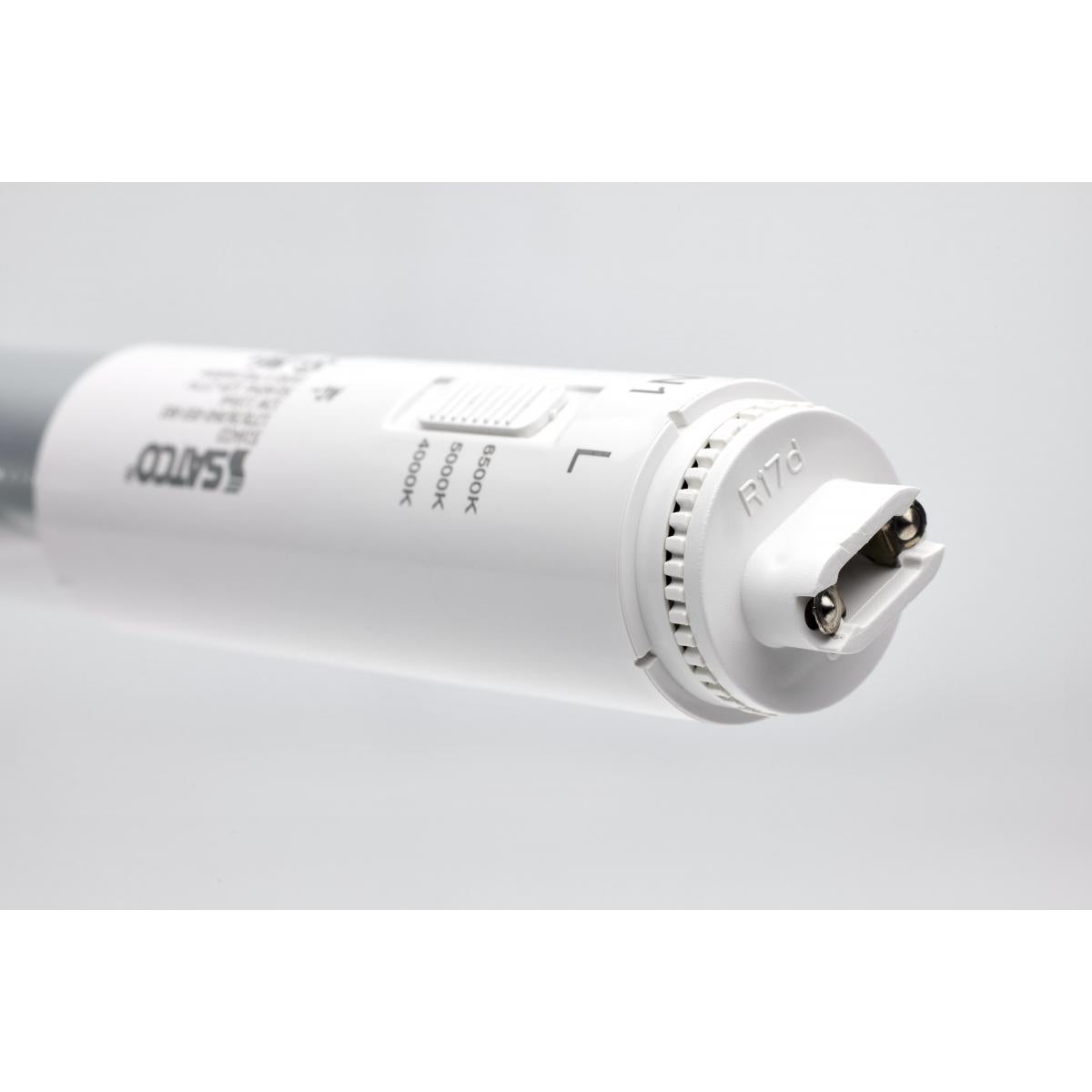

| ANSI Base | R17d |
| Nominal Length | 48 |
| Finish | White |
| CCT (Kelvin) | 4000K/5000K/6500K |
| Temperature | Cool White to Daylight |
| CRI | 80+ |
| Lumens | 2500L/2600L/2450L |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Product Category | Linear |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 18W |
| Incandescent Equivalent | 90W |
| Fluorescent Equivalent | 60W |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 4000K/5000K/6500K |
| Temperature | Cool White to Daylight |
| CRI | 80+ |
| Lumens | 2500L/2600L/2450L |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| THD | 25% |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
Physical
| MOL | 45.81 |
| MOD | 1.13 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Recessed Double Contact HO/VHO |
| ANSI Base | R17d |
| Finish | White |
| Material | Polycarbonate (PC) |
| Lens Finish | Frost |
| Lens Material | Plastic |
| Housing Color | White |
| Weight (lb.) | 0.61 |
Additional Information
| Tube Guard Use | No |
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5-Years |
Compliance
| Safety Listing | cULus - Certified; cULus - Classified; cRUus - Recognized Component |
| Location Rating | Damp |
| DLC Approved | No |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | ETL Sanitation listed (conforms to NSF) |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923164354 |
| Each Quantity | 1 |
| Each Length (in.) | 48.00 |
| Each Width (in.) | 1.15 |
| Each Height (in.) | 1.15 |
