Description

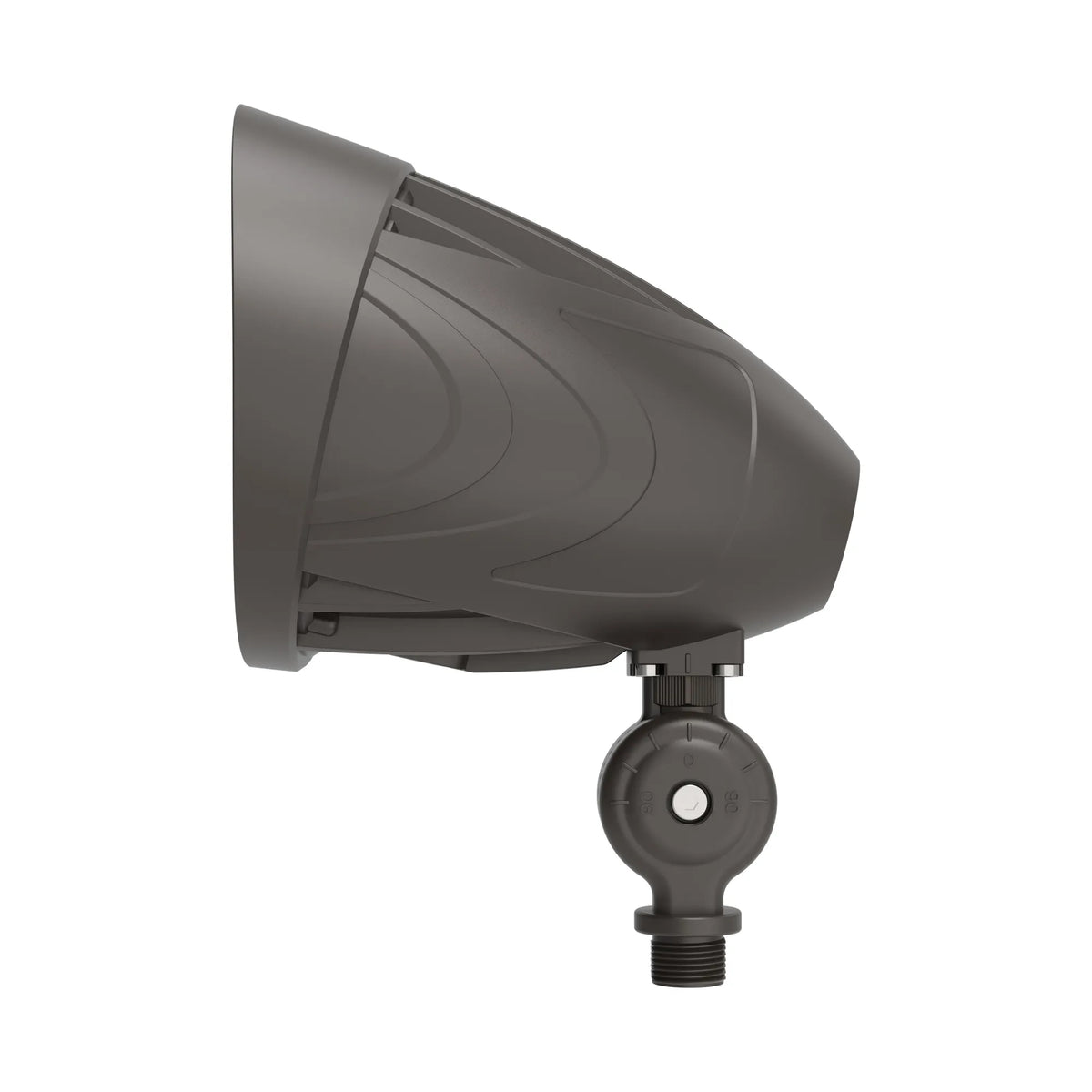

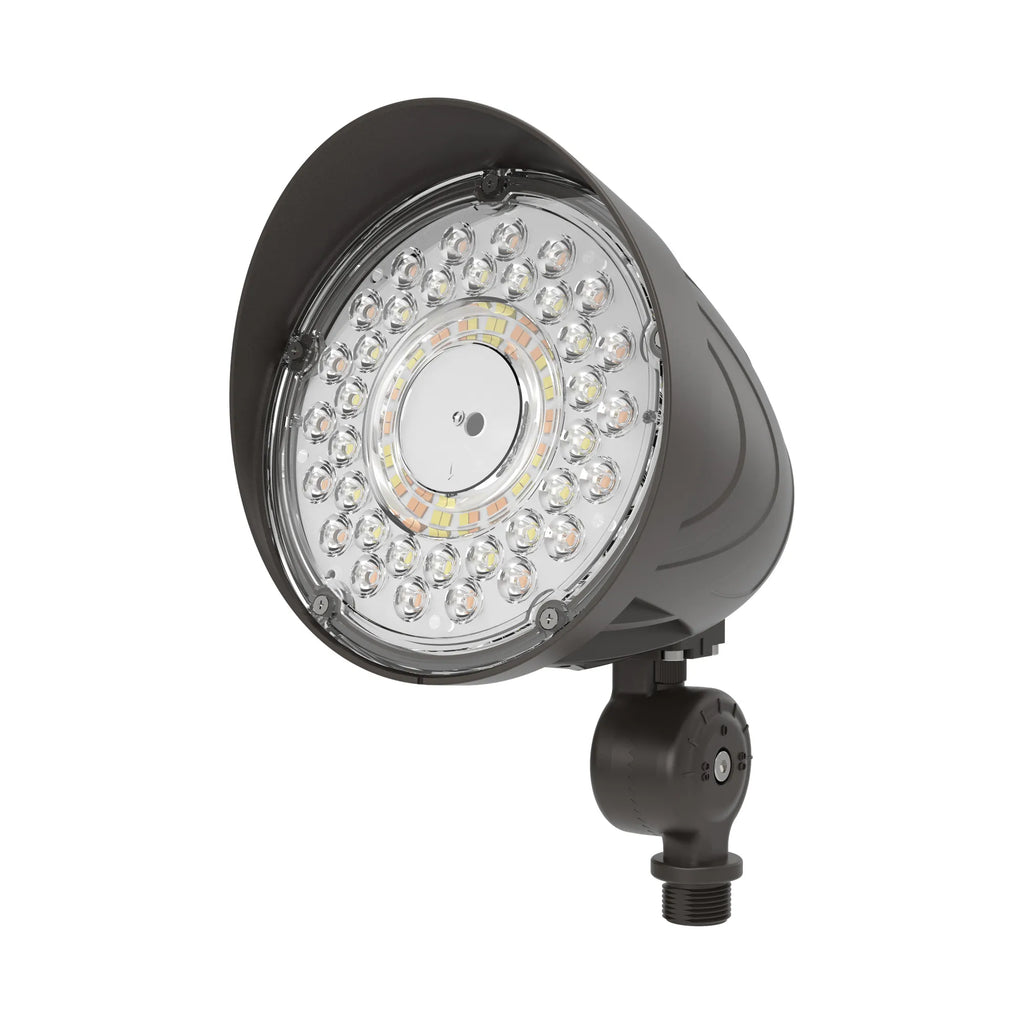

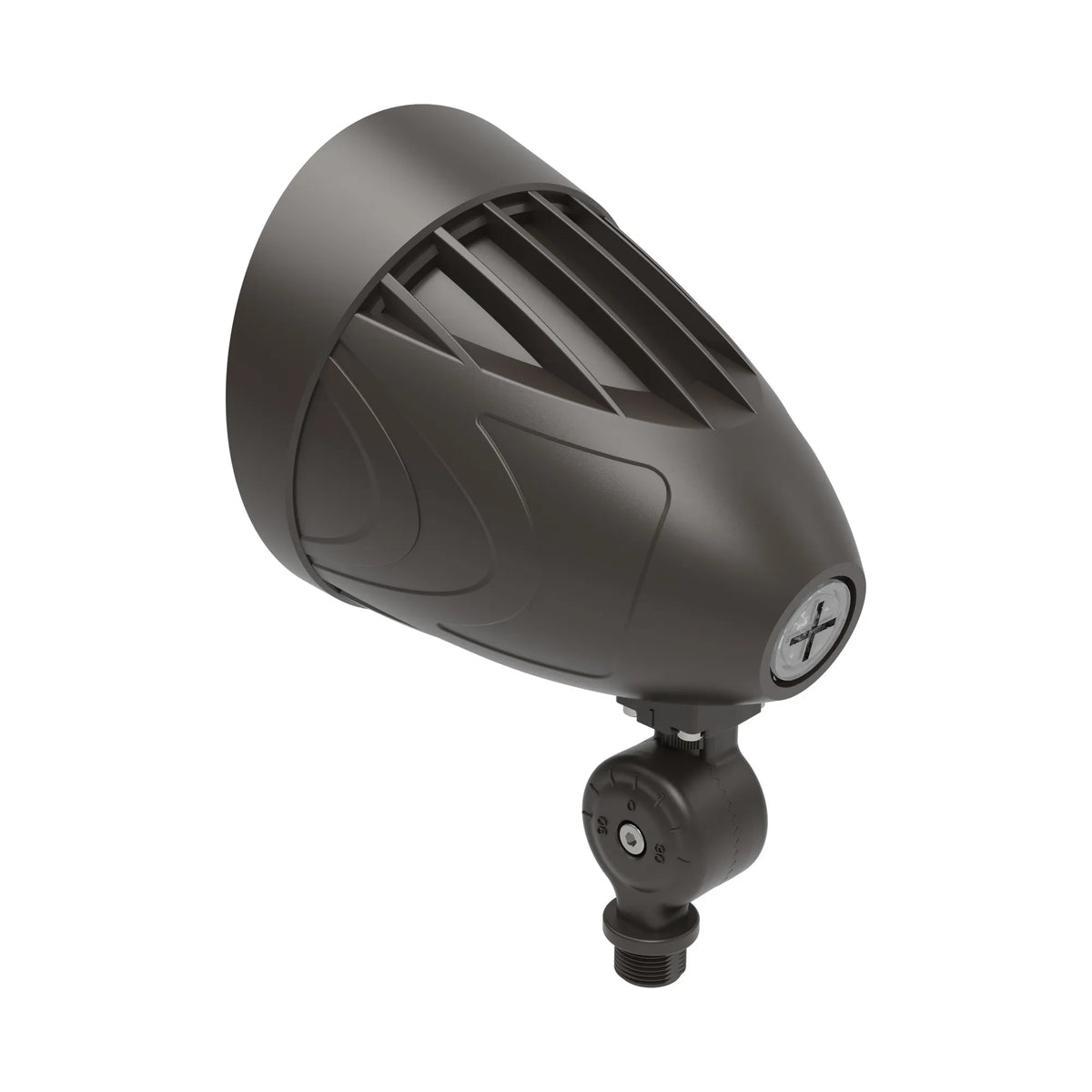

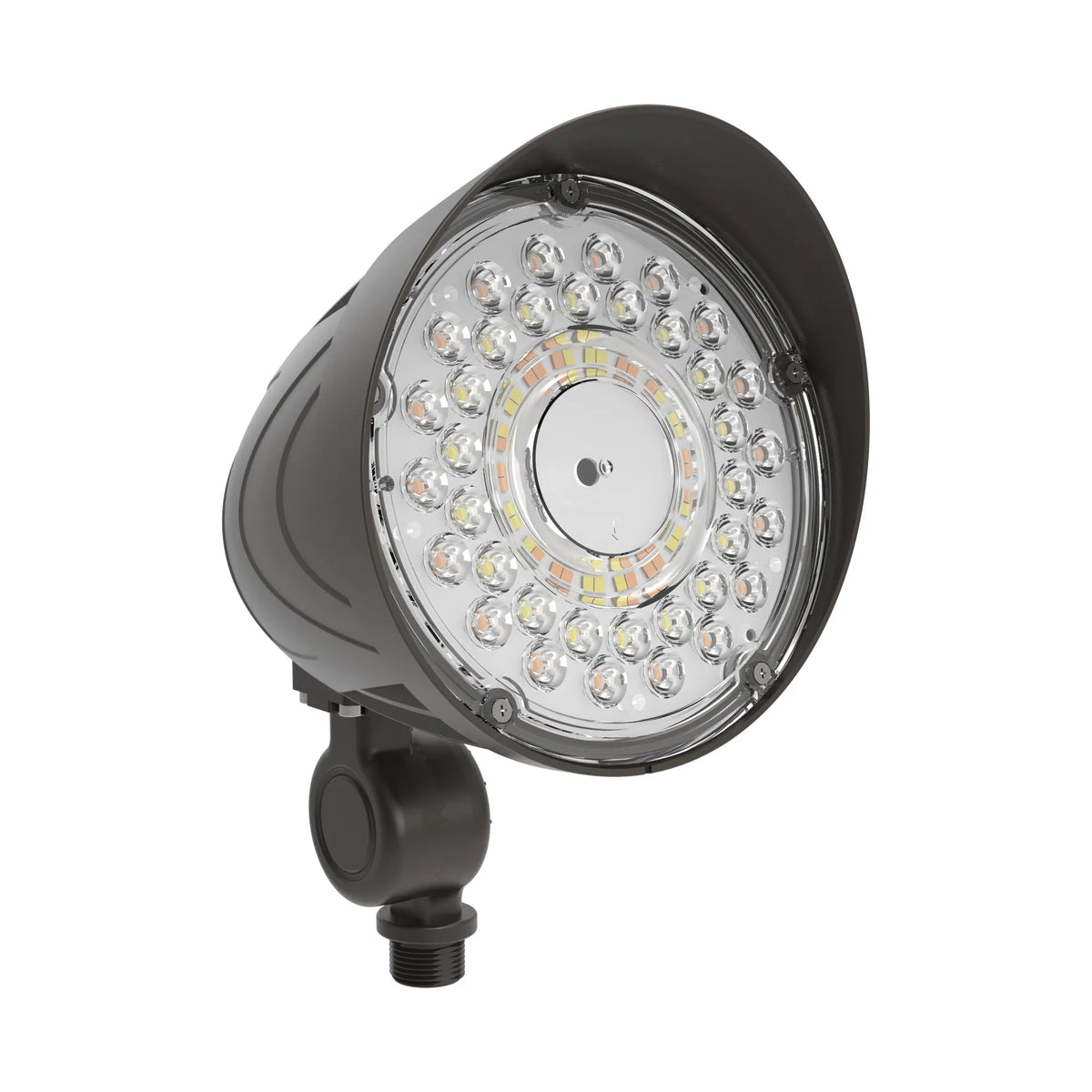

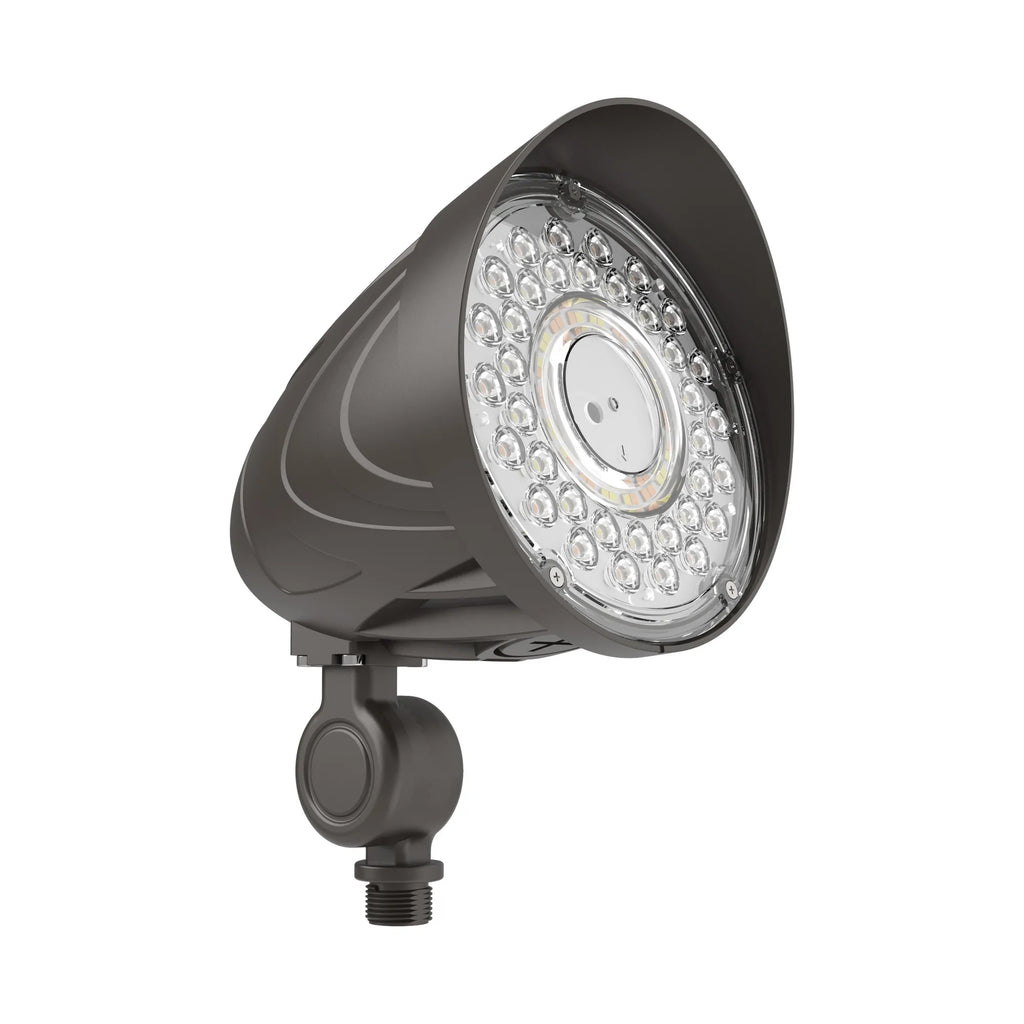

Bronze LED Landscape Flood Light, Selectable Power, CCT and Beam Angle- 120-277V
The FLD4X-25W-MCTPB-D-BR is the bronze finish version of the FLD4X X-GEN Series LED bullet flood light. Its warm bronze housing blends into brick, wood, and earth-toned building exteriors and landscaping while delivering adjustable wall wash, facade, sign, security, and general flood lighting. It shares the series field-selectable wattage, three-CCT selection, three selectable beam angles, adjustable knuckle mount, and IP65 wet rating. Choose the bronze finish over black when you prefer a warmer, less conspicuous fixture on the mounting surface.
Technical Specs
- :: Input Voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: 15W / 20W / 25W (Field-Selectable)
- :: Dimming: 0-10V Dimming, 0-100%
- :: Total Lumens: 2,250 / 3,000 / 3,750 LM (Max 3,750 LM)
- :: Efficacy: Up to 160 LM/W
- :: CCT Selectable: 3000K / 4000K / 5000K
- :: Beam Angle Selectable: 4H4V / 5H5V / 6H6V (25.8-degree / 31.0-degree / 56.5-degree Average)
- :: Integrated Photocell with ON/OFF Switch
- :: Color Rendering Index: CRI >70
- :: BUG Rating: B2-U2-G2
- :: Lens: Impact-Resistant Frosted Anti-Glare PC Lens
- :: Housing: Die-Cast Aluminum, Powder Coat Finish
- :: Finish: Bronze
- :: Mount: Adjustable Knuckle Mount Included, 180-degree Adjustable, Fits 1/2-inch Base
- :: Dimensions: 8.98-inch (H) x 6.61-inch (W) x 5.69-inch (D)
- :: Fixture Diameter: 5.69-inch
- :: Housing Height: 6.02-inch
- :: Operating Temperature: -40-degree F to 113-degree F
- :: IP Rating: IP65, Wet Locations
- :: Impact Rating: IK08
- :: Rated Life: 70,000 Hours
- :: Warranty: 7 Years
- :: Certifications: UL Listed, Wet Location
MECHANICAL
–Die-cast aluminum housing
–Powder-coat finish
–Finish options: Bronze or Black
–Knuckle mount included
–Fits 1/2” base
–Adjustable knuckle: 180°
–IP65 rated for wet locations
–IK08 impact rating
–Dimensions:
–Fixture diameter: 5.69”
–Overall height: 8.98”
–Housing height: 6.02”
–Overall depth: 6.61”
