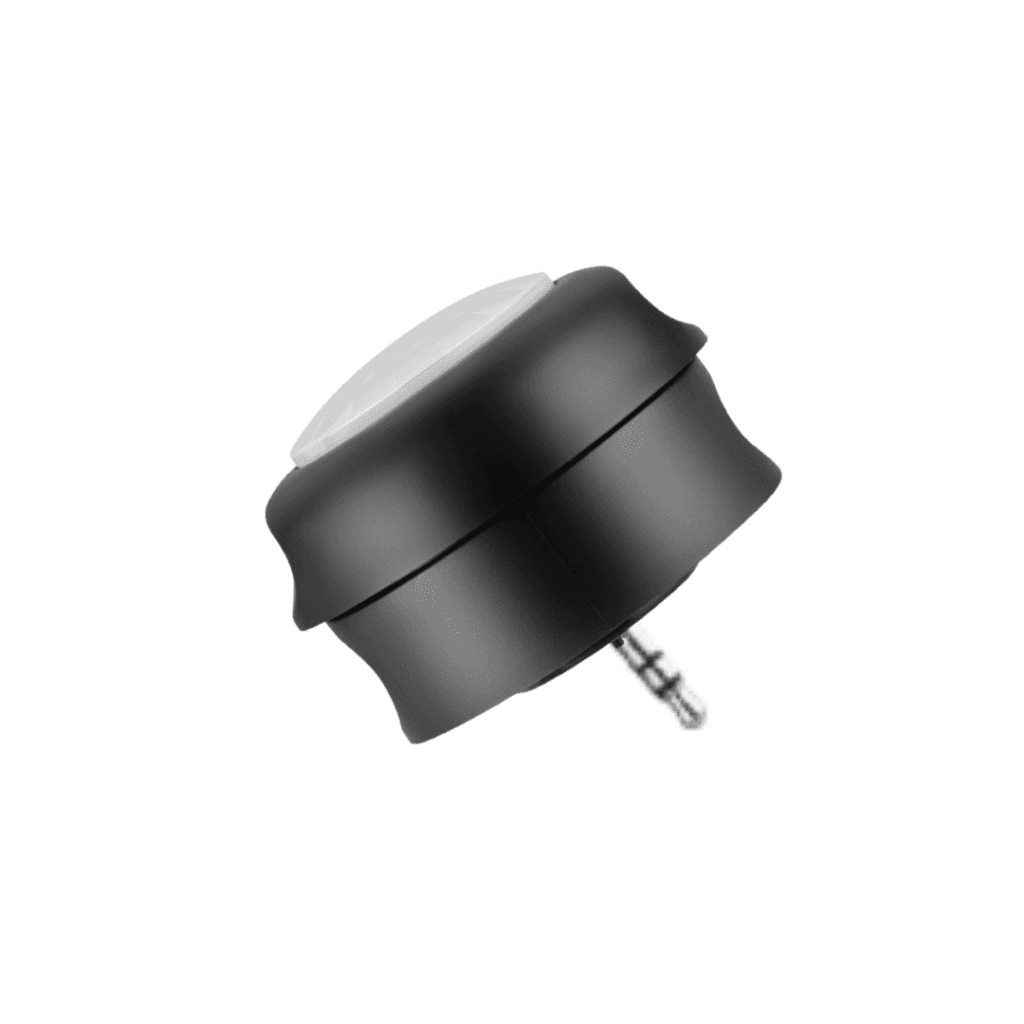

Bluetooth Mesh PIR Outdoor Sensor for LED Area Lights
PRODUCT DESCRIPTION

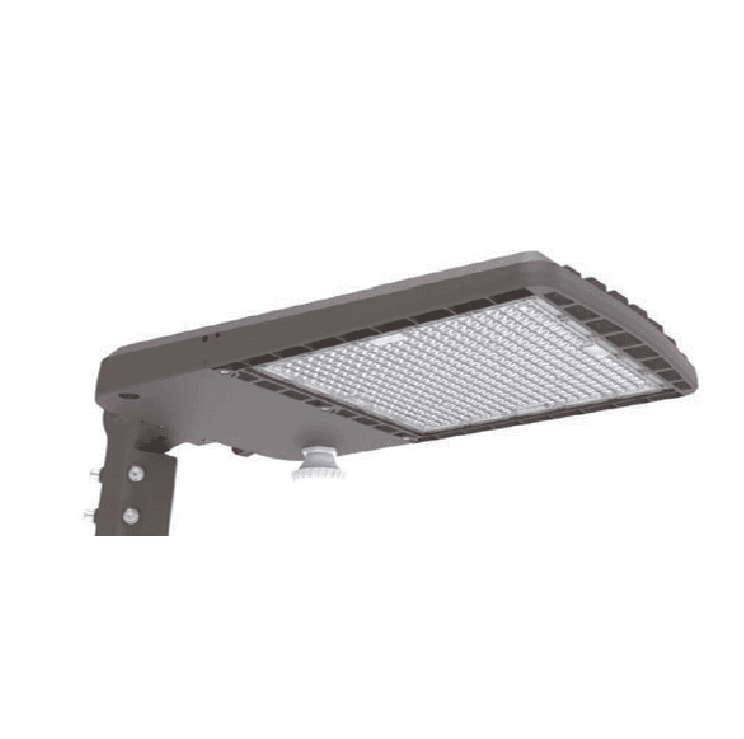

EarthConnect Area Light sensors are perfect for Luminaire Level Lighting Control (LLLC) applications, especially in outdoor or indoor settings when wet location IP66 washdown may be required. They feature integrated daylight sensing for dusk-to-dawn operation and daylight harvesting, passive infrared (PIR) motion detection, long-range antennas, and a durable UV-rated nylon housing with a sleek black finish. The EFS106-AUX-W sensors are designed for easy plug-and-play installation in EarthTronics Area Lights and other exterior fixtures that feature audio-jack receptacles. Equipped with the advanced AlgoH2 algorithm, these sensors ensure accurate motion detection for heights up to 40 feet while minimizing false triggers. The Bluetooth® transmission rate is 328 feet when installed properly. These features provide the ability to control exterior lighting from your smartphone or device with multiple energy-saving functions that help to increase the effectiveness of your security lighting system.
ELECTRICAL
Input Voltage: DC 12V
Input Current: 50mA Max
Input Power: 0.6W
Output Current: 10mA Max
Output Power: 0.1W
Dimming: 0-10V
Bluetooth Transmit:
328ft Max
Bluetooth Version: 4.2/5.0
AGENCY APPROVALS
UL: Yes, UL8750
IP Rating: IP66/ Wet Location
FCC: Yes
RoHS: Yes
PRODUCT DETAILS
Detection Range: 40-80ft
Mounting Height: 20-40ft
Housing: UL 94-5VA Nylon
Indoor/Outdoor Use:
Outdoor
Operating Temperature:
-30°C to 55°C, -22°F to 131°F
Color: Black
Warranty: 5 years warranty
