Description

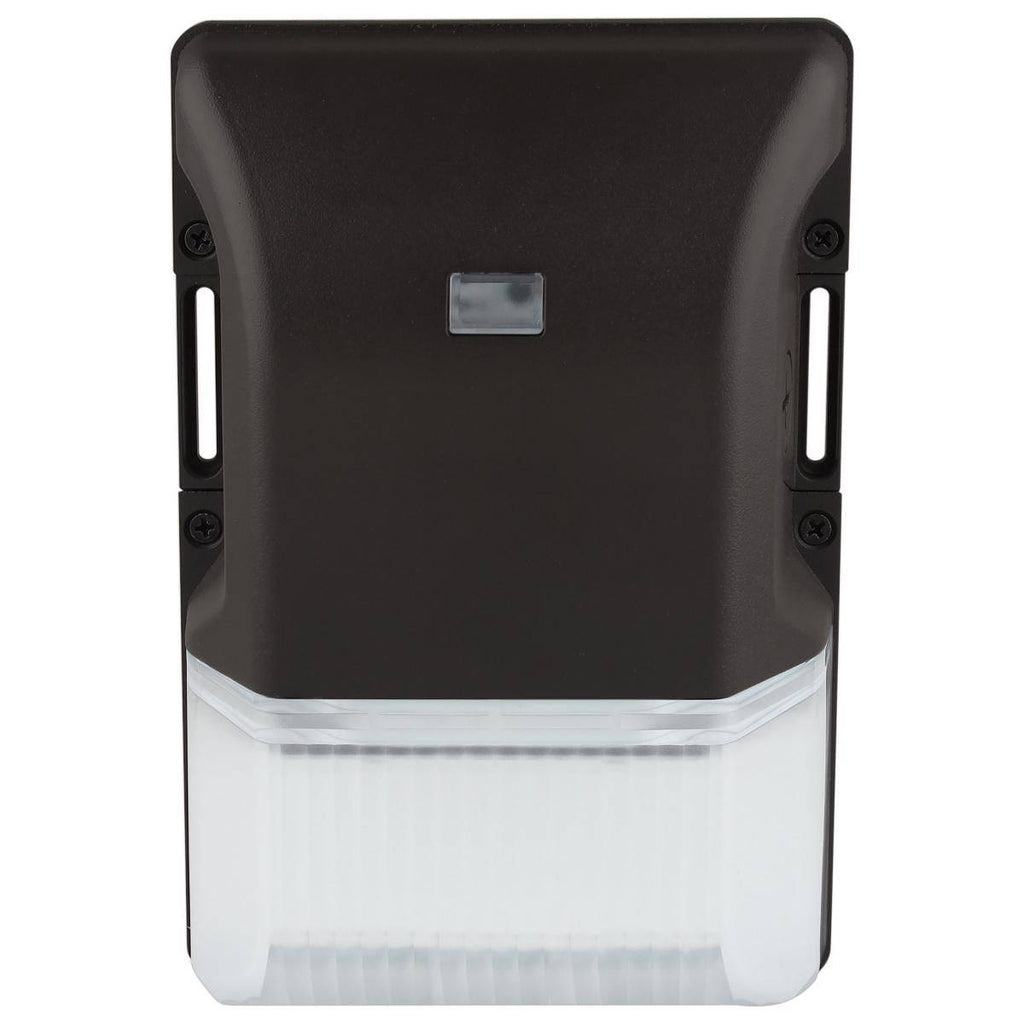

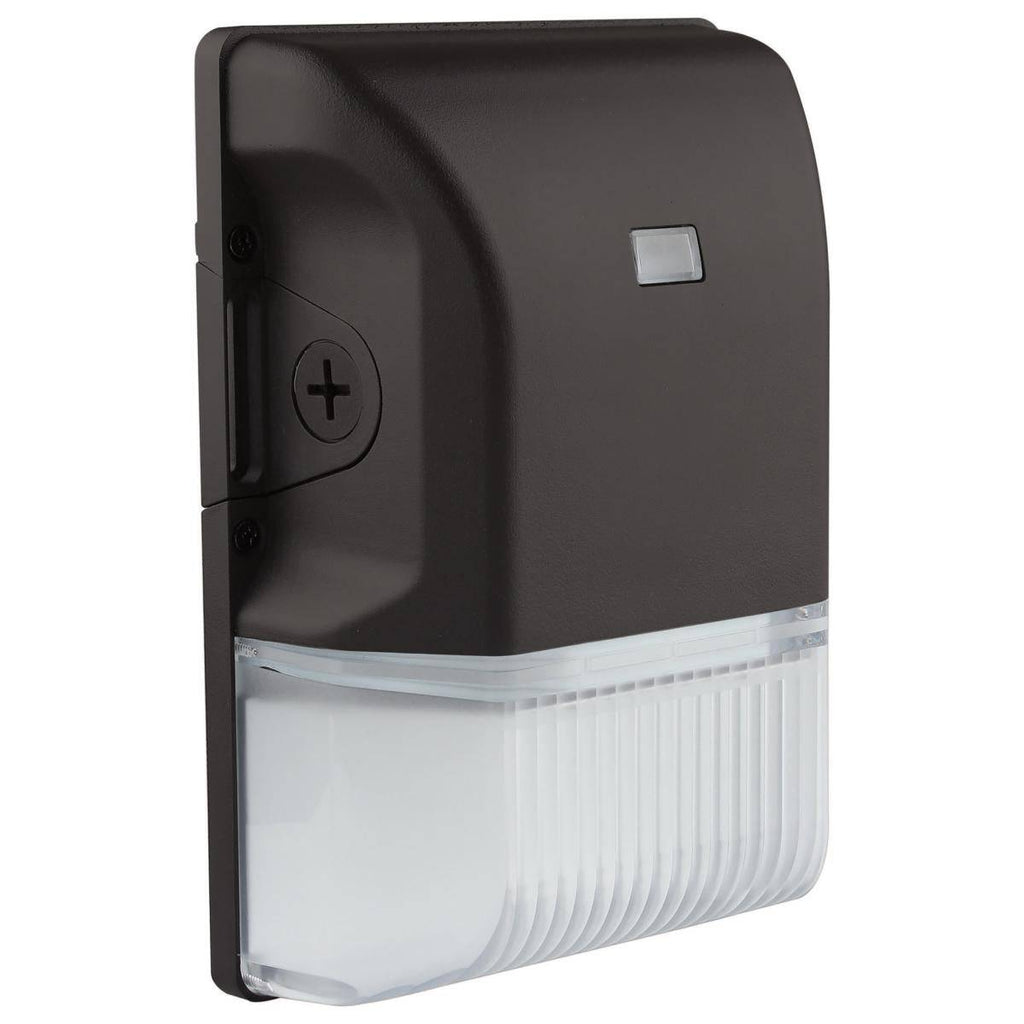

Black LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K
| Fixture Type | Wall Pack |
| Finish | Black |
| Wattage | 20W |
| Lumen Output | 2608.9L/2920.8L/2703.4L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Outdoor |
Specifications
| Technology | LED |
| Wattage | 20W |
| Lumen Output | 2608.9L/2920.8L/2703.4L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80+ |
| Voltage | 120V-277V |
| Beam Angle | 100 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Photocell or Sensor | Has Photocell |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 1.98 |
| IP Rating | IP65 |
| Material | Cast Aluminum |
Dimensions
| Height (in.) | 8.59 |
| Width (in.) | 5.81 |
| Extension (in.) | 3.09 |
Compliance
| Safety Listing | cULus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-GL6EYJ |
| ADA Compliant | Yes |
| B.U.G. Rating | B1-U3-G2 |
| NSF Approved | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923657474 |
| Each Quantity | 1 |
| Each Length (in.) | 6.10 |
| Each Width (in.) | 3.50 |
| Each Height (in.) | 8.90 |
