Description

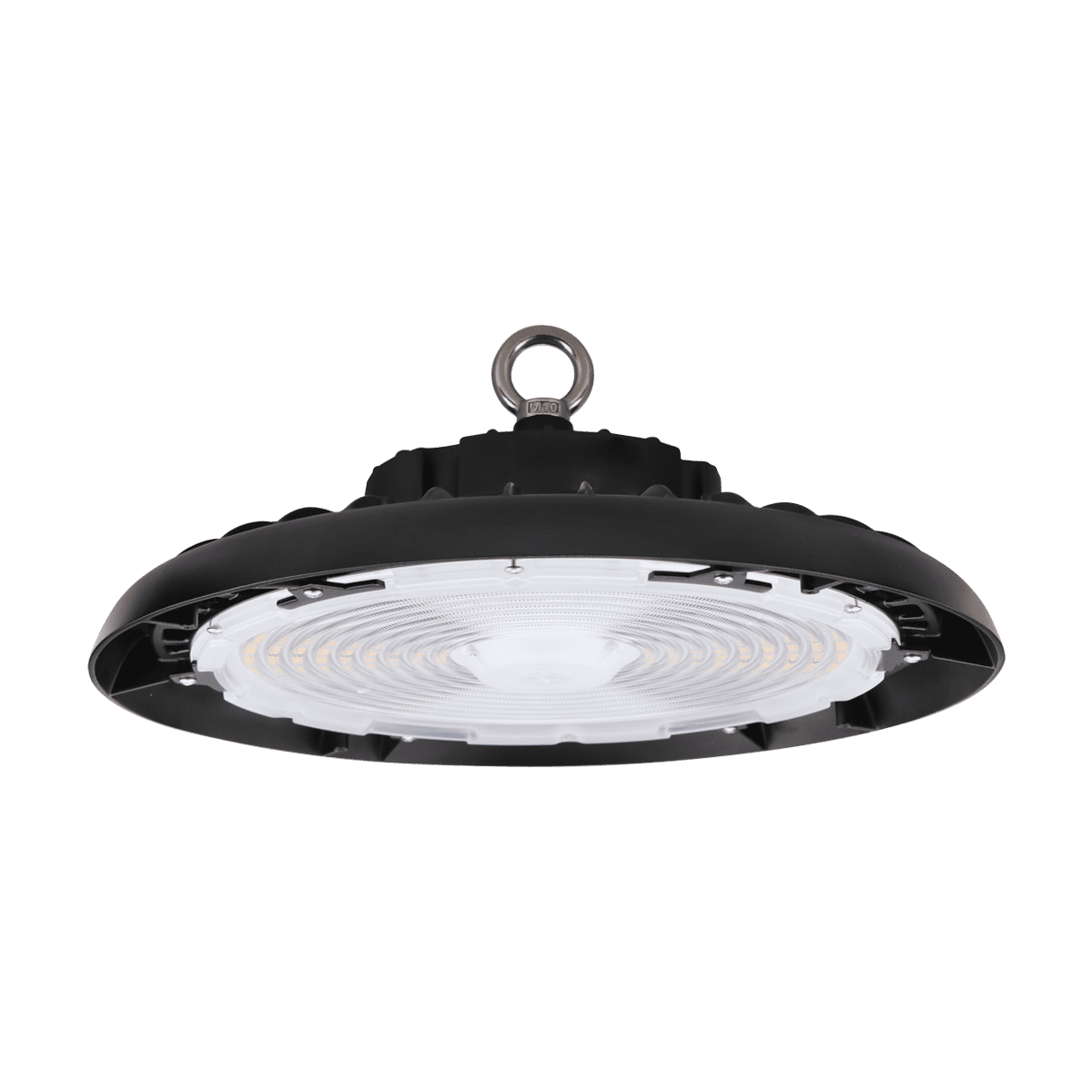

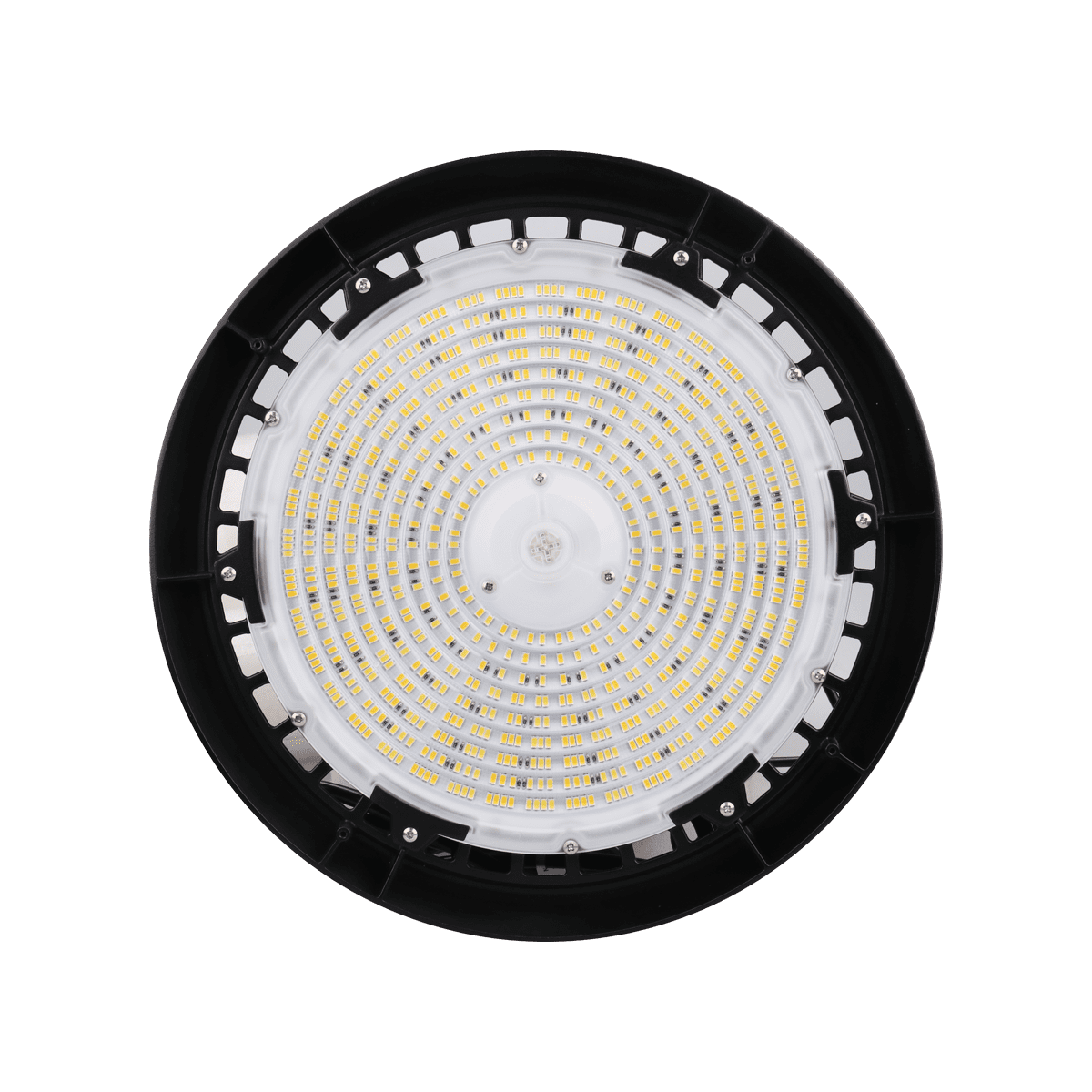

BAYE3 Round High Bay, 240/200/180W, 3500/4000/5000K, 120-277V, 0-10V Dimming, Black
BAYE3-PS240-FCCT-U
Order Code:13165
| Product Specifications | |
|---|---|
| Voltage | 120-277VAC |
| Lumens (lm) | 36,000 lm / 30,000 lm / 27,000 lm |
| Wattage | 240W / 200W / 180W |
| Efficacy (lm/W) | 150 lm/W |
| CCT (K) | 3500K / 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10 |
| Replacement for | Up to 750W HID |
| T20 Status | Exempt |
| IP Rating | IP65 |
| Wet/Damp/Dry Location | Wet |
| Dimensions (L x W x H) | L: 13 3/8" (340 mm), W: 13 3/8" (340 mm), H: 5 3/4" (146 mm) |
| Housing Color | Matte Black |
| Lens Material New | Polycarbonate (PC) |
| Ambient Temp Range | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) new | L/N-PE: 6kV, L-N: 6kV |
| Auxiliary Output | Yes (12V) |
