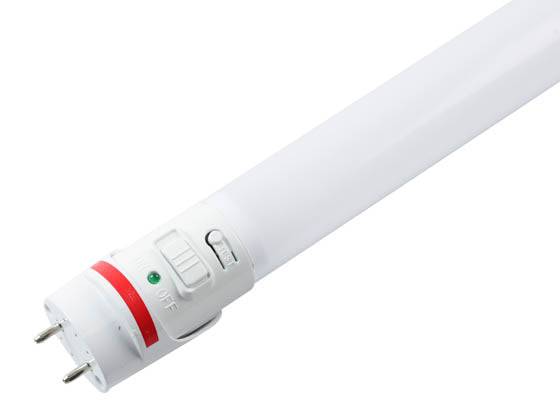

Aleddra 48" 15 Watt LED T8 Emergency Tube - Type B - Double-End Wired, 4000K

Part : LLT-4-EM-T8-G4-15W-40K

Aleddra: Aleddra
Price:
Sale price$86.95

Please contact us for quantity discount

Description

Aleddra 48" 15 Watt LED T8 Emergency Tube - Type B - Double-End Wired, 4000K - 1,800 Lumens - 120-277V

SOLD IN CASES OF 25- $ 15 Broken case fee if sold less than 25.

The price is for one tube.

pdf download

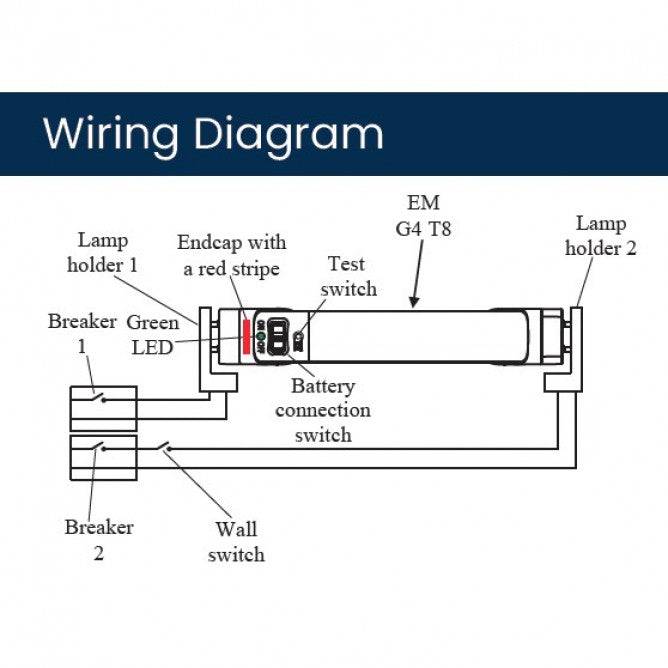

Aleddra’s Gen4 Emergency T8 lamp sets another industry standard as the first self-testing/self-diagnosis T8. The lamp operates as an energy-efficient T8 during normal operation and can be turned on/off via a wall switch. During a power outage, it will last over 90 minutes on battery. More importantly, the lamp will automatically self-test for 30 seconds monthly and for 90 minutes annually, thus meeting the emergency lighting audit requirements with no labor cost. This saves a facility management team a tremendous amount of labor from manually testing every single lamp of this kind in its facilities. Should any malfunction be detected during self-testing, such as insufficient battery capacity, the warning indicator on the lamp will flash and alert the team. With its labor saving, the lamp gives the end user the best return on investment and the best emergency lighting option. Please follow the installation instruction to wire the lamp.



LISTINGS AND CERTIFICATIONS

pdf download    pdf download    pdf download

  • ETL certified for Type B (ballast bypass)
  • DLC Listed
  • IES Progress Report 2020 Selection
  • 90 minutes battery time per industry standard
FEATURES
  • 2-in-1 tube: regular T8 lighting and emergency lighting
  • Manual testing button
  • Automatic self-testing: 30-second test monthly and 90-minute test annually
  • Self-diagnosis with flashing indicator if the battery time drops below 90 minutes
  • Built-in lithium batteries
  • Controllable by wall switch
  • Easy battery shutoff switch for a long stocking time
  • Patented



Length 2ft / 4ft Color 3000K-6000K LED Type SMD2835
CRI >80 Input Voltage AC100-277V Battery Operating Temperature 68ºF to 104ºF
Battery Backup Time 90 minutes Wattage 15W Light Output 1800lm
Power Factor >0.92 Luminous Efficiency >120lm/W Light Output When on Battery 420lm at 3.5W
Warranty 5-year * Rated Hours 50,000 hours
