Description
S9622
9.5BR30/LED/4000K/750L/120V/D

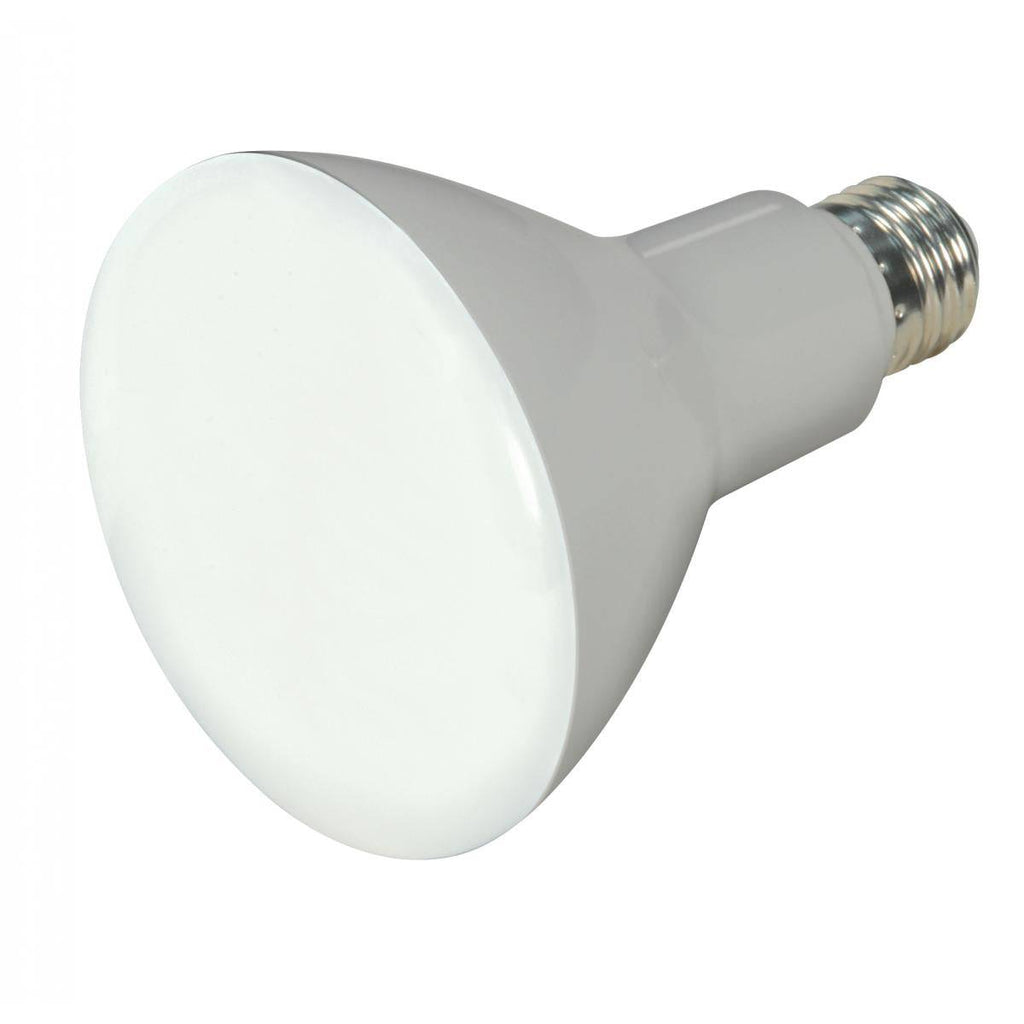

9.5 Watt; BR30 LED; 105 deg. Beam Angle; 4000K; Medium base; 120 Volt; Dimmable
General
| Status | Active |
| Watts | 9.5W |
| Incandescent Equivalent | 65W |
| Volts | 120V |
| Shape | BR30 |
| Base | Medium |
| ANSI Base | E26 |
| Finish | Frost |
| CCT (Kelvin) | 4000K |
| Temperature | Cool White |
| CRI | 80 |
| Lumens | 750L |
| Beam Spread | 105 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Lamp Type | Reflector |
| Technology | LED |
Electrical
| Watts | 9.5W |
| Incandescent Equivalent | 65W |
| Volts | 120V |
| CCT (Kelvin) | 4000K |
| Temperature | Cool White |
| CRI | 80 |
| Lumens | 750L |
| CBCP | 260 |
| Beam Spread | 105 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Forward Phase or Reverse Phase or Phase Selectable |
| Power Factor | 0.91 |
| Hours Rated | 25000 |
| Operating Temperature | -25C (-13F) to a maximum of +45C (+113F) |
Physical
| MOL | 5.19 |
| MOD | 3.75 |
| Shape | BR30 |
| Base | Medium |
| ANSI Base | E26 |
| Finish | Frost |
| Lensed | Lensed Lamp |
| Lens Finish | Frost |
| Housing Color | Gray |
Additional Information
| Rated For Enclosed Fixture | No |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | Yes |
| ES Unique ID | ESID-2275532 |
| California Status | Non-Compliant |
| California Compliant Substitute | S8492 |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923096228 |
