Description

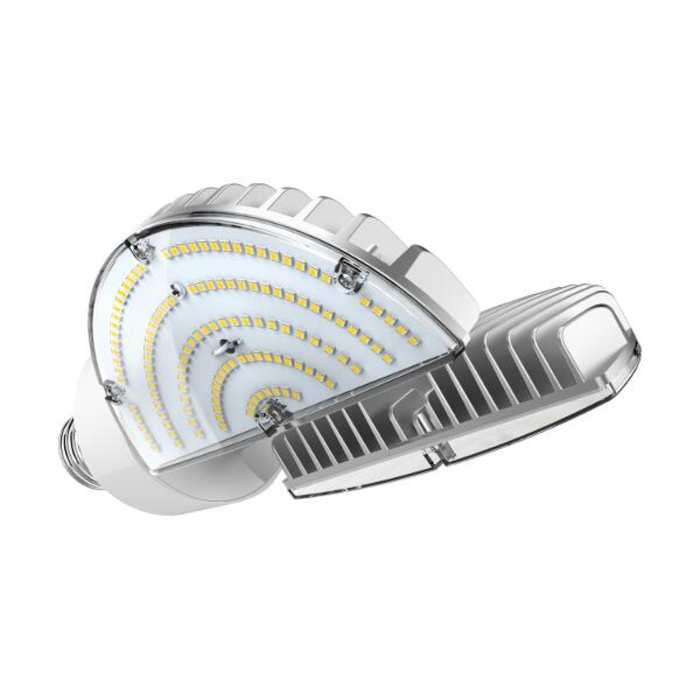

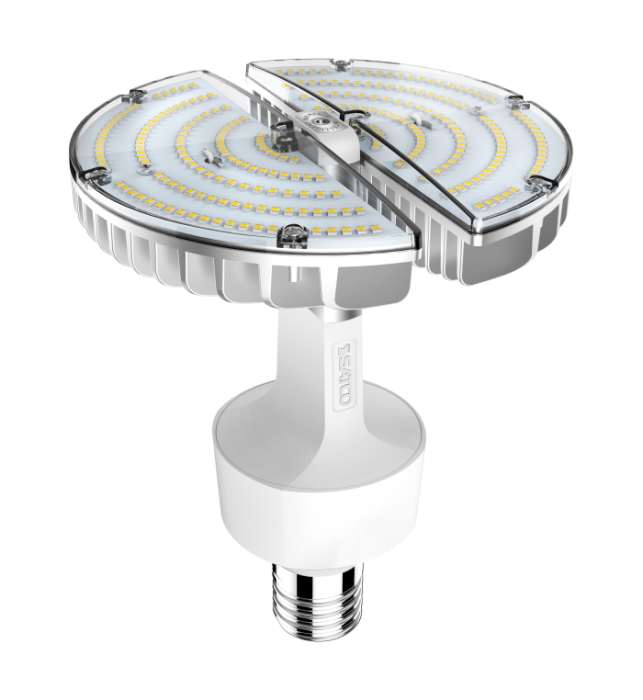

70 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;120-277 Volt
- 70 Watt LED HID Replacement
- 4000K
- Mogul extended base
- Type B Ballast Bypass
- 120-277 Volt
Electrical
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | Dimmable with optional modules |
| Operating Frequency | 50/60Hz |
| Operating Temp | -22F to +140F (-30C to +60C) |
| HID Equivalent | 250W |
| Lumens | 10500L |
| Volts | 120V-277V |
| Watts | 70W |
General
| Company | SATCO |
|---|---|
| EA Height | 12.8 |
| EA Width | 4.65 |
| EA Length | 7.95 |
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Candle Power | 3377.0 |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Product Notes | This is not to be used with a ballast |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 4KV |
| Thermal Management | 2 step thermal management: 1 - When the lamp body temperature is > 203F, the output of the lamps will reduce to 75 percent; 2 - When the driver temperature is >257F, the output of the lamps will reduce to 55 percent. |
| Working Voltage | Direct wire range voltage 100-277V |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | Clear |
| Additional Info | 80-954 - Dimmable via WiFi accessory; 80-955 - Hi-Pro Motion Sensor / PIR; 80-956 - Hi-Pro Photocell; 80-957 - Hi-Pro Motion Sensor / MW |
| Amps | 0.700-0.253A |
| IOT Enabled | Yes |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lensed | Yes |
| Minimum Compartment Size | Length: 7.87 in. Width: 7.87 in. |
| Operating Position | Universal |
| Photo Cell | Multiple Optional Sensors Available |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Incandescent Equivalent | 250W |
