Description

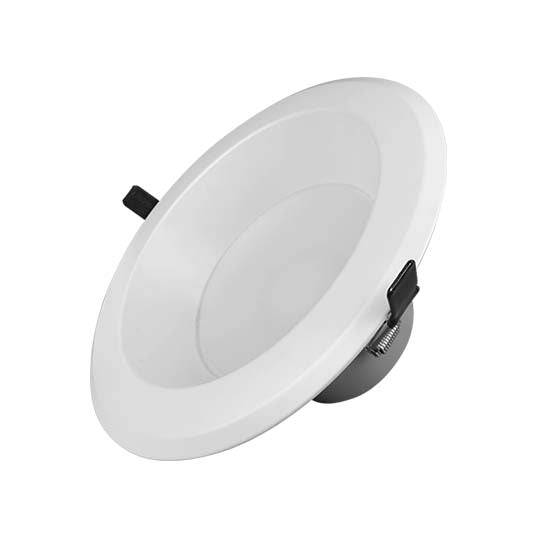

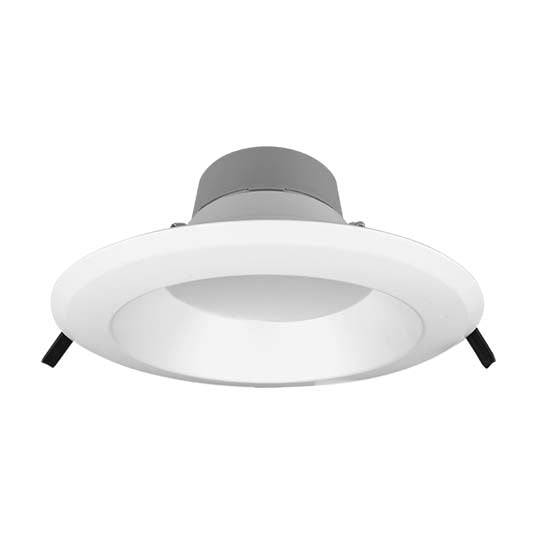

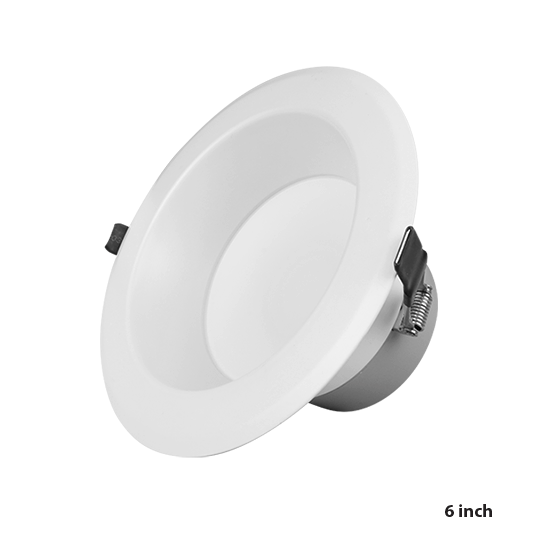

6 Inch Commercial Recessed LED Downlight-CCT 3000, 3500, 4000, or 5000K
Product Description
Designed for both new construction and retrofit applications, the CLR Select series

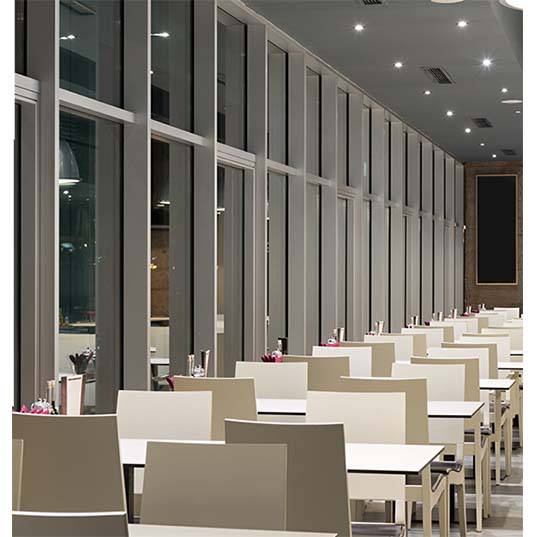

can be installed directly into drywall, a ceiling grid or an existing 4”, 6” or 8” mounting frame using spring loaded retention tabs. The CCT and output selectable design allows for easy adjustment to 3000, 3500, 4000, or 5000K and standard, medium or high output. With accessory trims in black and offering a full range of dimming via 1-10 volts, the CLR Select is adaptable to most any environment. The versatility of this light source is perfect for commercial applications, such as educational, governmental, retail and grocery, office or hospitality lighting.
Construction
• Spun aluminum trim
• Plastic driver housing
• 3’ flexible metal conduit (FMC) whip
• Matte white powder coat
• Black faceplates available
Optical System
• Precision engineered polystyrene diffuser provides high uniformity, and reduced glare
• No visible diodes, hot-spots, or shadows

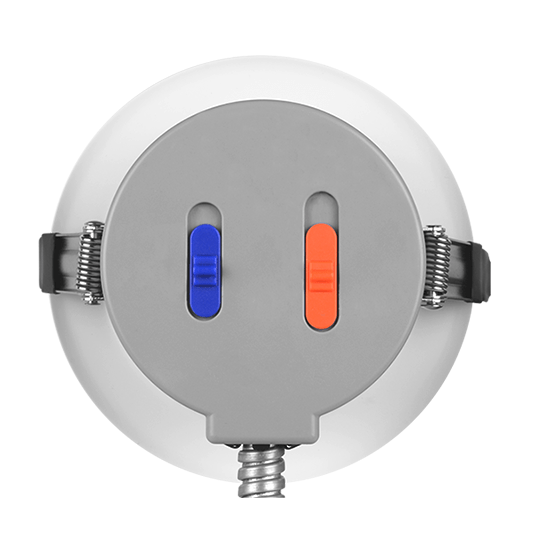

• 4 CCT selection (3000K, 3500K, 4000K, 5000K) via switch on driver cover
Electrical
• 5 Wire whip - 3 Input (L,N,G) and 2 controls (DIM+, DIM-)
• Universal range input 120 - 277 VAC, 60Hz
• 3 wattage selection (Standard, Medium, High) via switch on driver cover
• Default Setting of 4000K and Standard output
Controls
• Dimming via 1-10VDC controls
• Available Bluetooth Wireless Controls Accessory. See:
Mounting and Installation

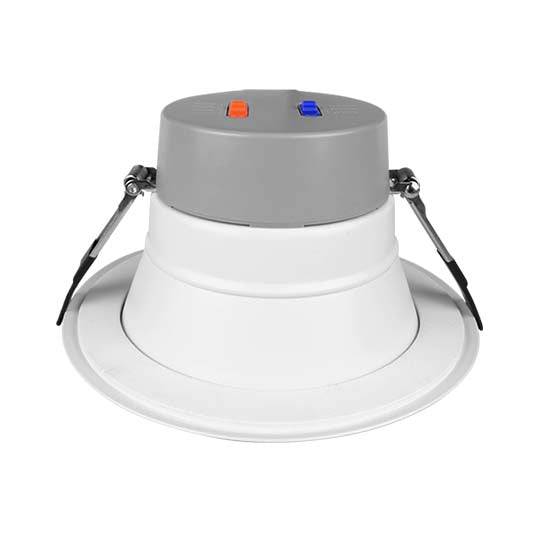

• Adjustable, spring-loaded retention tabs ensure secure fixture retention on ceilings up
to 1 1/2” thick
• Easy installation into most 4”, 6” or 8” incandescent or fluorescent frames
• Frame not needed for new construction installation
• NON-IC Operating temperature of 0°F to 104°F (-18°C to 40°C)
• IC Operating temperature of 0°F to 77°F (-18° to 25°C)
• Metal rough-in templates and frames available
• For installations where power surge may be possible, NICOR recommends installing
additional surge protection at the fixture or electrical distribution pane
