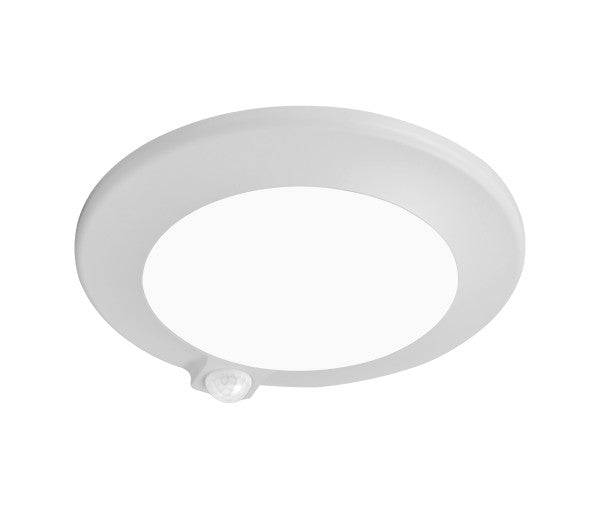

6 in. Selectable Surface Mount Downlight with PIR Motion Sensor

Nicor
Part : RSD61120SWHM
Price:
$39.95

Please contact us for quantity discount

Description

6 in. Selectable Surface Mount Downlight with PIR Motion Sensor

Features
  • Three selectable color temperatures (3000K, 4000K, and 5000K)
  • Integrated passive infrared (PIR) motion sensor
  • The light turns ON when motion is detected, and OFF after 30 seconds of inactivity
  • Installs into any 4” pancake, 4" non-metallic, or 4/O junction box
  • Removeable twist-n-lock lens for seamless installation
  • Durable aluminum body with UV-stabilized diffuser lens
  • Dimmable down to 5% using standard TRIAC or ELV dimmers
  • Produces up to 988 Lumens using less than 16-Watts
  • RoHS compliant, Airtight, and Wet-Location rated
  • Energy Star, Title 24, and JA8 compliant
  • Protected by NICOR’s 5-year limited warranty
NICOR’s RSDS-M Series 6" Selectable LED Surface Mount Disk Light with Integrated Passive Infrared (PIR) Motion Sensor provides a fully dimmable flush-mount solution to provide automated on/off control. The PIR motion sensor turns on automatically when entering a room and turns off 30 seconds after leaving the room. The high-performance RSDS-M downlight lets you easily switch between 3 different color temperature options (3000K, 4000K, 5000K) using a switch located on the backside of the fixture. In terms of light output quality, the RSDS-M features an impressive CRI rating of 92 with an R9 value of 54. This helps to produce vibrant colors that are true in appearance. Installation is easier than ever, done behind a removable twist-n-lock diffuser lens to simply mount directly to any 4” junction box using the hardware included. The RSDS-M is perfect for bringing efficient and energetic lighting with motion controls to any room for a clean and professional look. The RSDS-M comes ready to install right out of the box and requires no other parts or components. It's available in both 4" and 6" sizes and protected by NICOR’s 5-year limited warranty.

SPECS

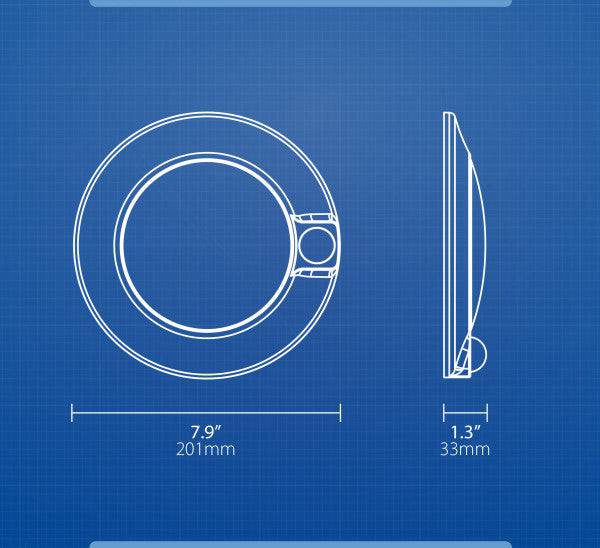

Size (in.)
6
Product Color
White
Finish
Powder Coat
Light Source
LED
Wattage
14.46 (3000K)
15.55 (4000K)
14.61 (5000K)
Wattage Equivalent
65
Voltage
120VAC
Lumen Output
832 (3000K)
988 (4000K)
856 (5000K)
Lumens Per Watt
57.5 (3000K)
63.7 (4000K)
58.6 (5000K)
Color Temperature (CCT)
3CCT Selectable (30K-40K-50K)
CRI
92
R9 Value
54
Dimmable?
Yes
Dimming Type
TRIAC
ELV
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Listings/Certifications
ETL Intertek Listed
cETL Intertek Listed
Title 24
JA8 Compliant
Energy Star
Airtight
RoHS Compliant
FCC Class B
NFPA 70 Compliant
NEC 410.16 (A)(3)
NEC 410.16 (C)(5)
Wet-Location (cETLus 1598)
