Description

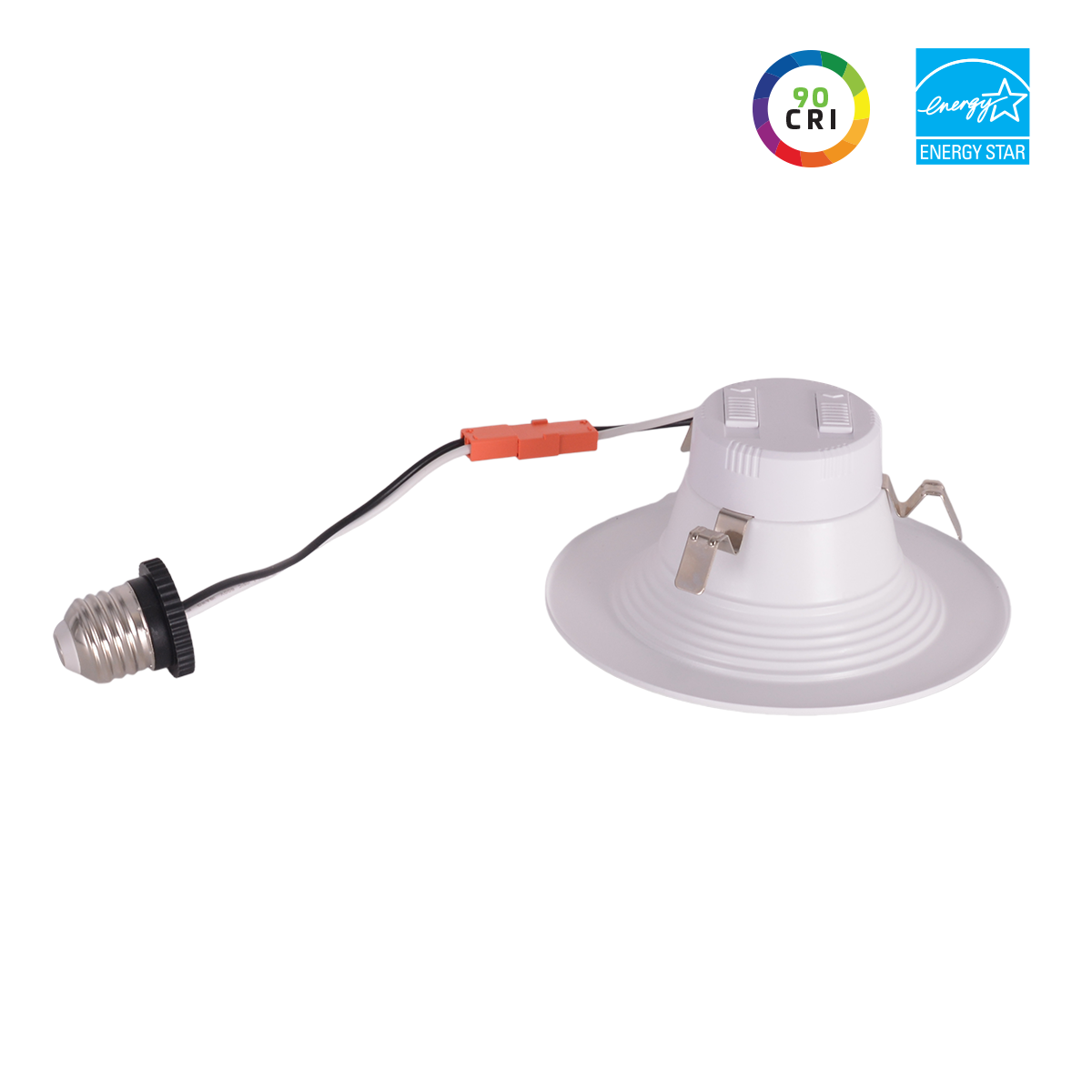

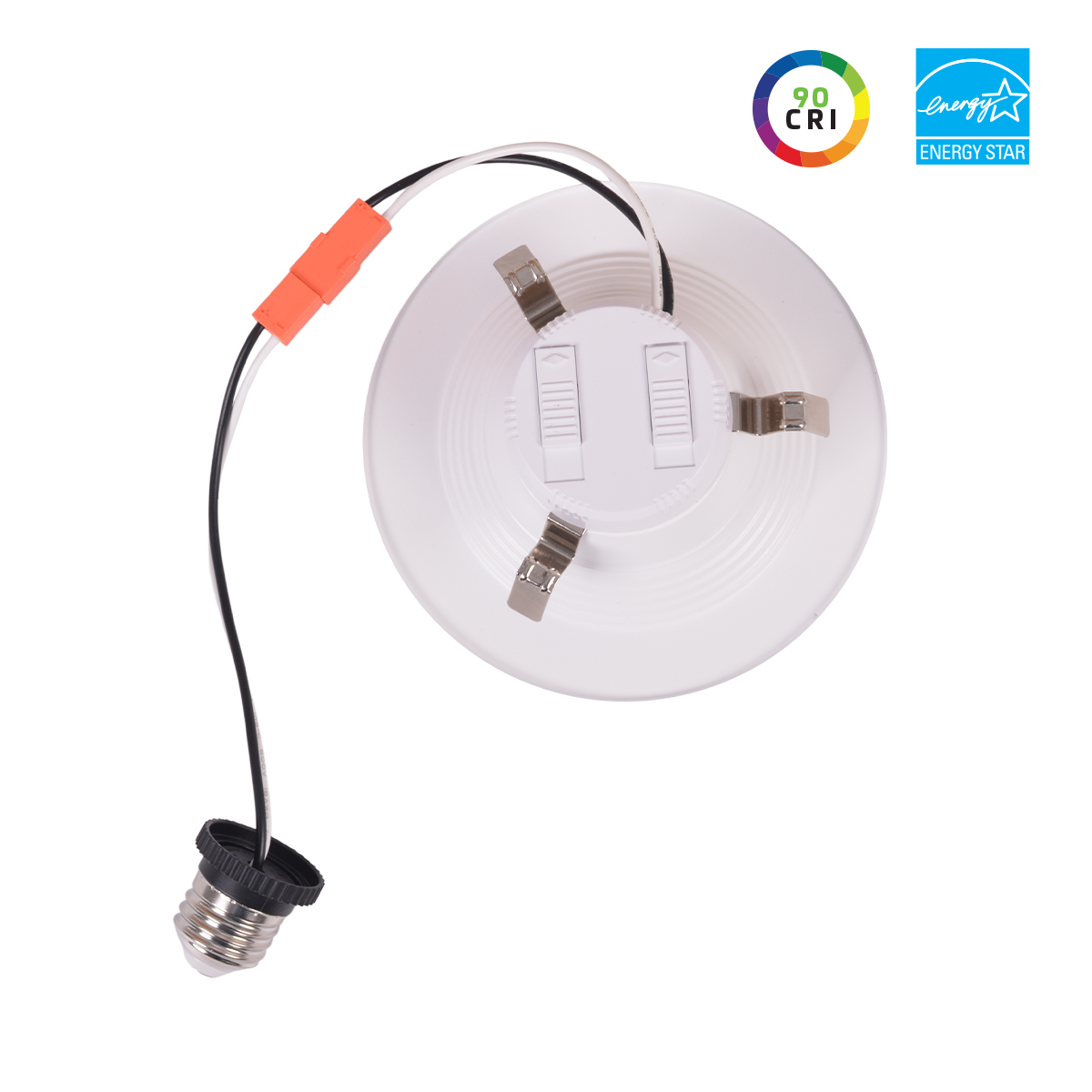

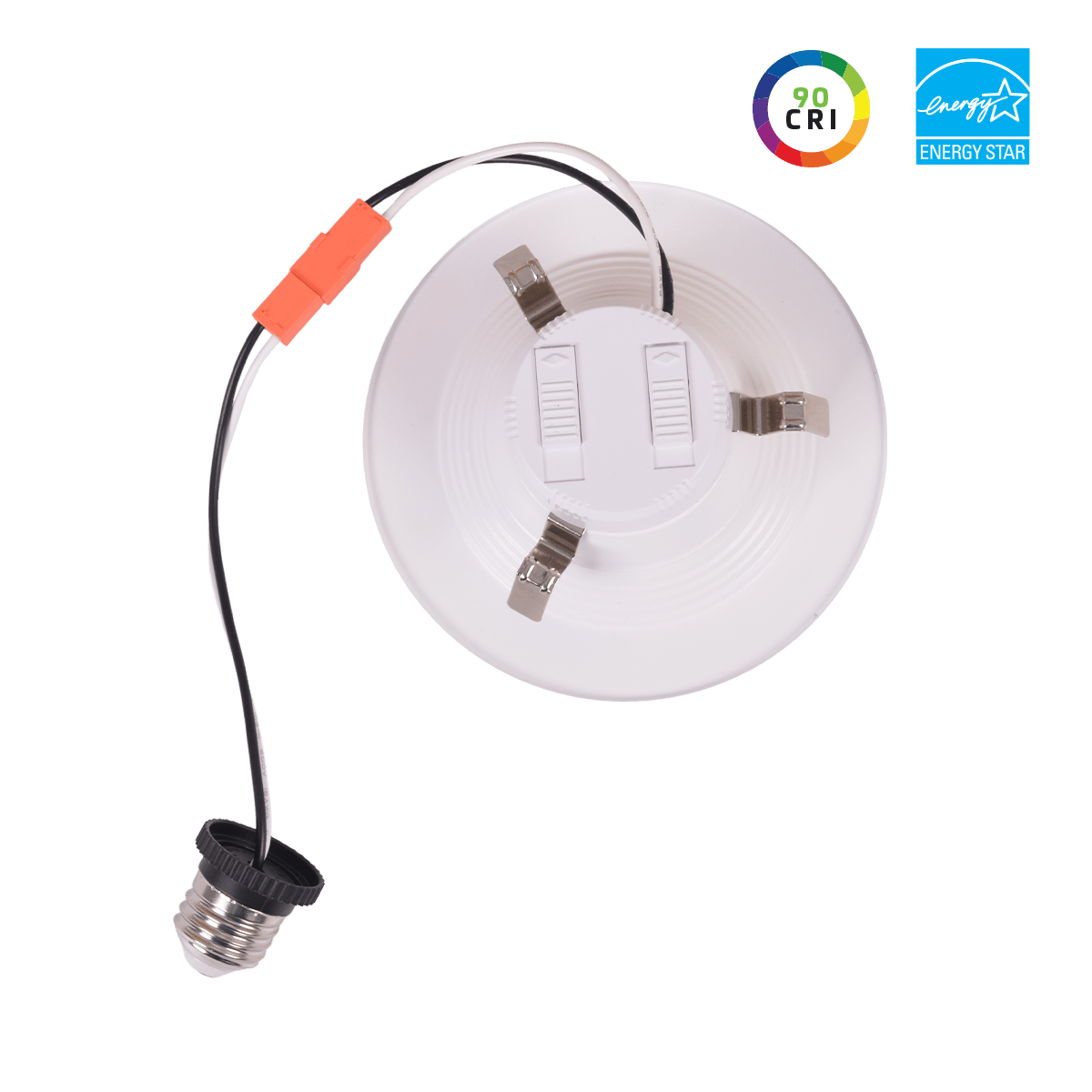

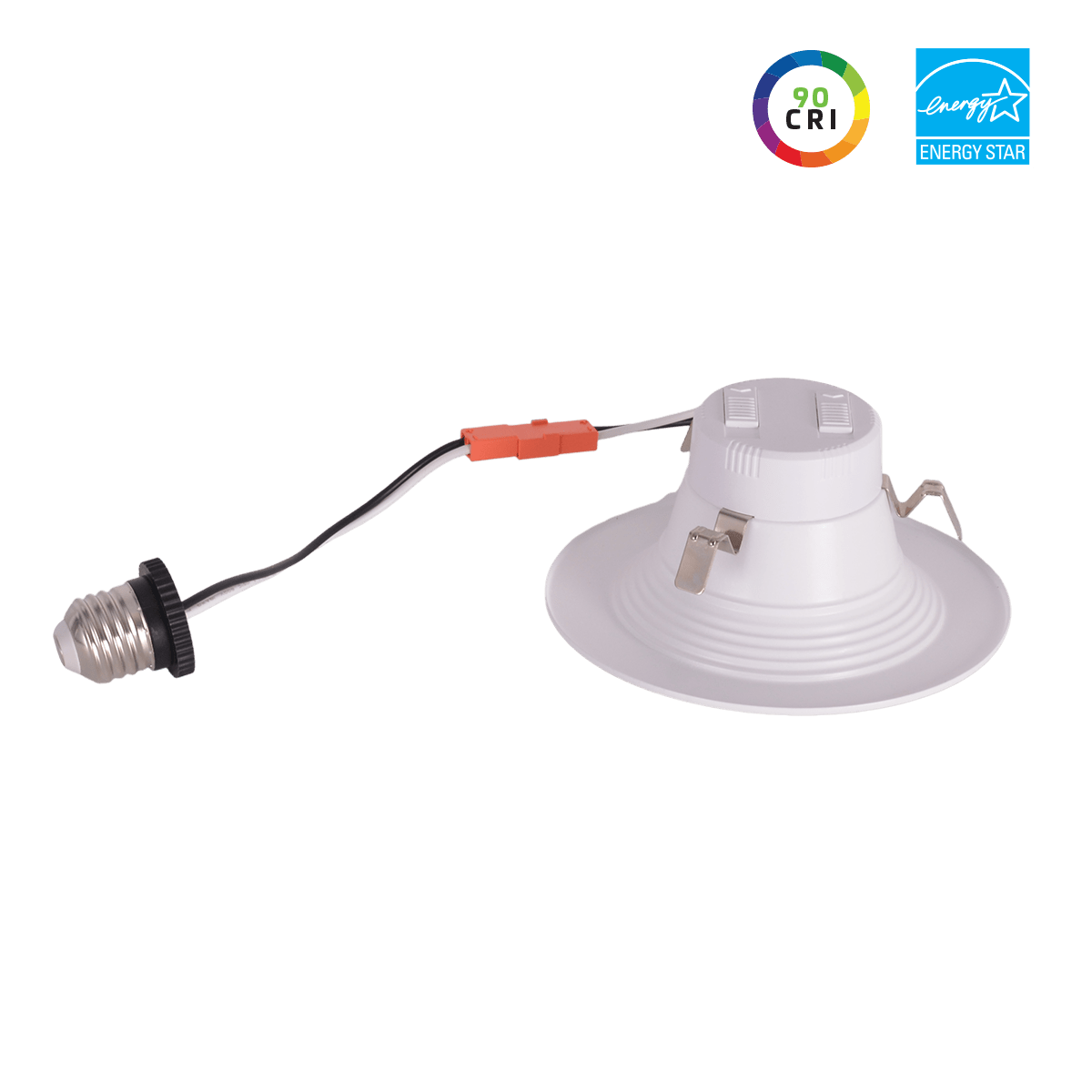

4IN, Downlight Retrofit, Wattage 12/9.5/7.3W, 90CRI, CCT 27/30/35/40/50K, 120V, Triac Dim, White
EiKO RDR Downlight Retrofit replaces 4” CFL or incandescent fixtures with field-adjustable lumen output and color temperature in one unit. Smooth, diffused illumination, TRIAC dimming, long life, and Title 20 compliance ensure efficient, code-ready performance for residential and commercial upgrades.
CONSTRUCTION & INSTALLATION
• Includes E26 Medium Base adapters
• White Frosted PC Lens for Diffused Lighting
• Integrated white baffled trim reflector
• Friction Clamps on 4”, torsion V Spring for 6”
• Injection-molded plastic construction is impact-resistant and noncorrosive
• Non-conductive construction meets most local dead-front code
requirements
E L E C T R I C A L
• PowerSET: 3 Step power models for field customization via dip switch (12/9.5/7.3W & 15/11.5/7.9W)
• Input Voltage: 120V, 60 Hz
• Dimmable to 10% with 120V TRIAC & ELV dimmers
• Power Factor: >0.9, THD: <20%
• In-Built Surge Protection: 2.5kV
| Product Specifications | |
|---|---|
| Input Voltage | 120VAC |
| Lumens (lm) | 1,000/ 900/ 720 lm |
| Wattage | 12W/ /9.5W/ 7.3W |
| Efficacy (lm/W) | 98 |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ |
| Dimming | TRIAC |
| Nominal Size | 4 Inch |
| Replacement For/Equivalent | 80W Incandescent |
| DLC Version | Exempt |
| TITLE 20 | Yes |
| TITLE 24/JA8 | Yes |
| Energy Star | Yes |
| UL Location Rating | Wet/Damp |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL / ETL | cETLus Listed |
| Color | White |
| Operating Temp Range (°F/°C) | -13F to 104F (-25C to 40C) |
| Surge Protection (kV) | 2.5kV |
| Warranty | 5 Years |
| Brand | |
