Description

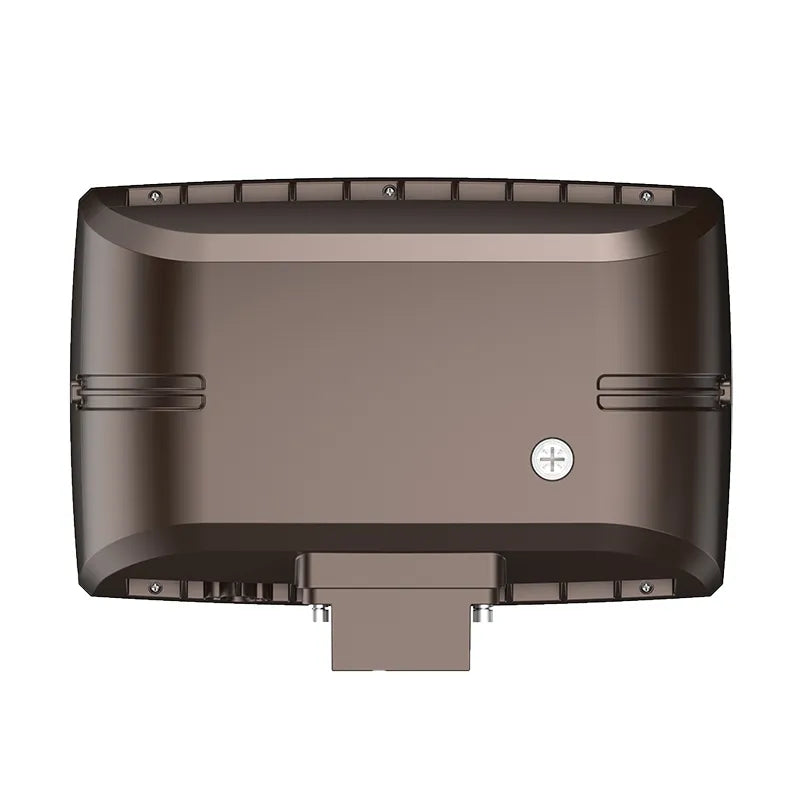

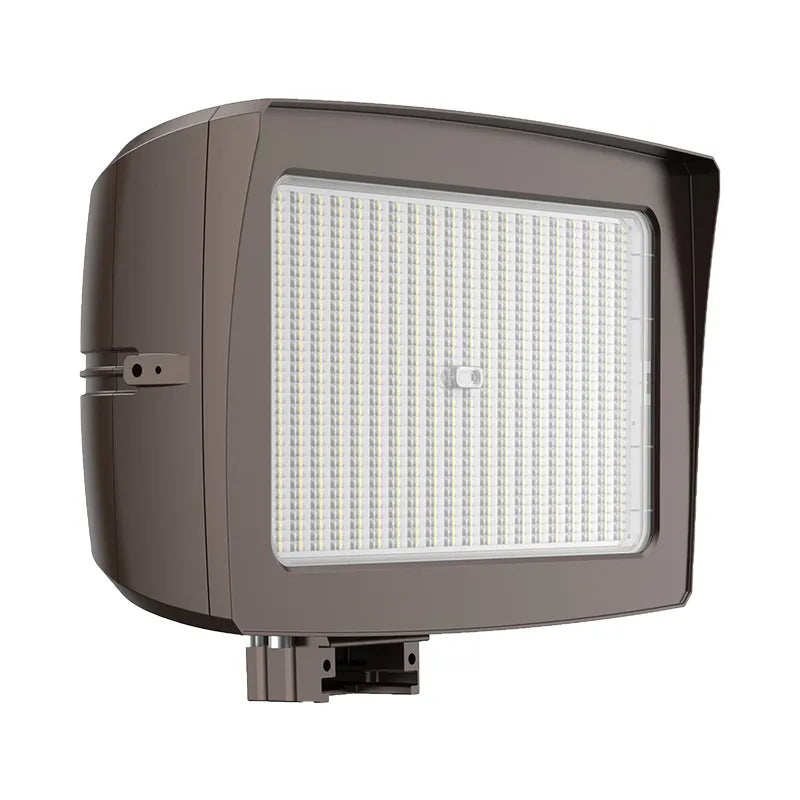

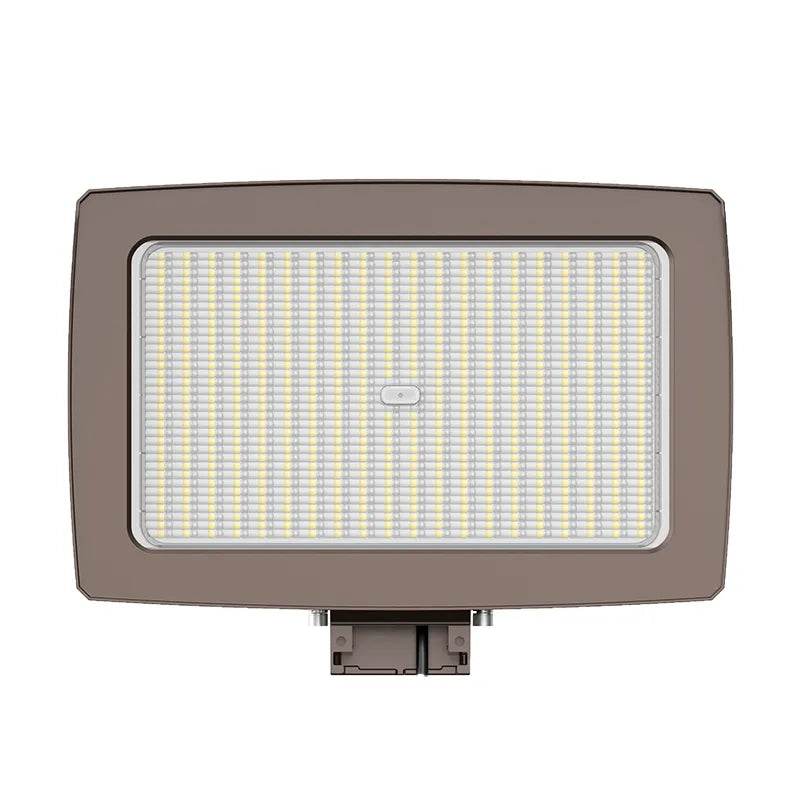

480V LED High Lumen Architectural Flood Light with Adjustable Wattage and Beam Angle- CCT
MOUNTING HARDWARE SOLD SEPARATELY
Technical Specs
- :: Voltage: 480V AC/50~60 Hz
- :: Wattage: 200W/240W/300W
- :: Power Factor: >0.9
- :: Efficacy: 140LPW
- :: Housing: Die-cast Aluminum Housing with Powder Coat Finish
- :: Photocell Included (With Disconnect Switch)
- :: 6KV Lightning Surge Protection
- :: Cord Type: 6’ SJTW 18/3 AWG cable
- :: Operating Temperature: -40°F to 104°F
- :: Suitable for Wet Locations
- :: Effective projected areas (EPA’s) are: Front = 0.38 square feet Side = 0.30 square feet Face = 1.05 square feet
- :: IP Rating: IP65
- :: 7-Year Warranty
- :: Dimming: 0~10V Dimmable
- :: Multi-CCT & Multi-Power - The Switches are on the Bottom of the Fixture
- :: Total Lumens: 42000LM
- :: Color Temperature: 3000K/4000K/5000K
- :: Color Rendering Index: ≥ 70
- :: Adjustable Beam Angle: 135°x125°/120°x120°/90°x90°
- :: 70,000 Hours Rated Life
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Replace existing HID flood lights/ wall pack
W-6.69 in x D-11.50 in x H-16.35 in
