Description

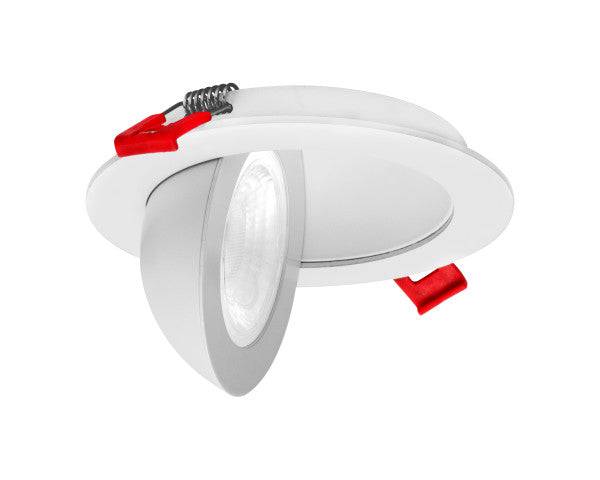

4-inch White Canless Floating Gimbal LED Recessed Downlight
Features
-
Includes 2700K, 3000K, 4000K, 5000K LED downlight, plenum-rated cable, and off-board driver
-
Installs directly into the ceiling; No housing or junction box required
-
Adjustable directional lighting at 90° tilt and 360° rotation
-
Precision optics provide smooth, uniform lighting at a narrow 29° beam angle
-
Dimmable to less than 5% using standard TRIAC Dimmers
-
Produces 756 Lumens at 8.8-Watts (65W Equivalent)
-
Insulation Contact rated, Damp-Location rated, Airtight, FCC compliant, and RoHS compliant
-
Lifetime rated for over 54,000 hours and protected by NICOR's 5-Year limited warranty
Model Number
DGF43120SRDWH
Product Title
4-inch White Canless Floating Gimbal 3000K LED Recessed Downlight
UPC
767706187656
The NICOR DGF4 4-inch floating canless gimbal LED downlight is fully adjustable and features 360° rotation, 90° tilt, and a narrow 29° beam angle to highlight architectural or artistic elements in your home. The high-performance DGF4 is fully dimmable and features an incredible 95 CRI rating (color rendering index) with an R9 value over 50. This means that your reds will be brighter, and your blues will be truer. Installation no longer requires a recessed housing or a junction box. Instead, the DGF4 installs directly into the ceiling using the 4.25-inch template provided. The adjustable spring-loaded retention tabs ensure a secure fit directly to the ceiling. This all-in-one kit includes everything you need to install custom directional lighting anywhere in your home. Available In Oil-Rubbed Bronze and White.
Size (in.)
4
Product Color
White
Finish
Matte
Light Source
LED
Wattage
8.8
Wattage Equivalent
60
Voltage
120VAC
Lumen Output
756
Lumens Per Watt
85.9
CRI
95
R9 Value
Dimmable?
Yes
Dimming Type
TRIAC
Operating Temperature
0°F to 120°F (-18°C to 49°C)
Listings/Certifications
ETL Intertek Listed
UL 1598 Listed
cUL 1598 Listed
Damp-Location
IC-Rated
RoHS Compliant
FCC Class B
Airtight
ASTM 283 Compliant
Other Certifications
LM-79, LM-80 testing performed in accordance with IESNA standards
COB maintains 4-step MacAdams with duv <±0.003
Meets or exceeds ASTM-283 Air-Tight Requirements
Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
