Description

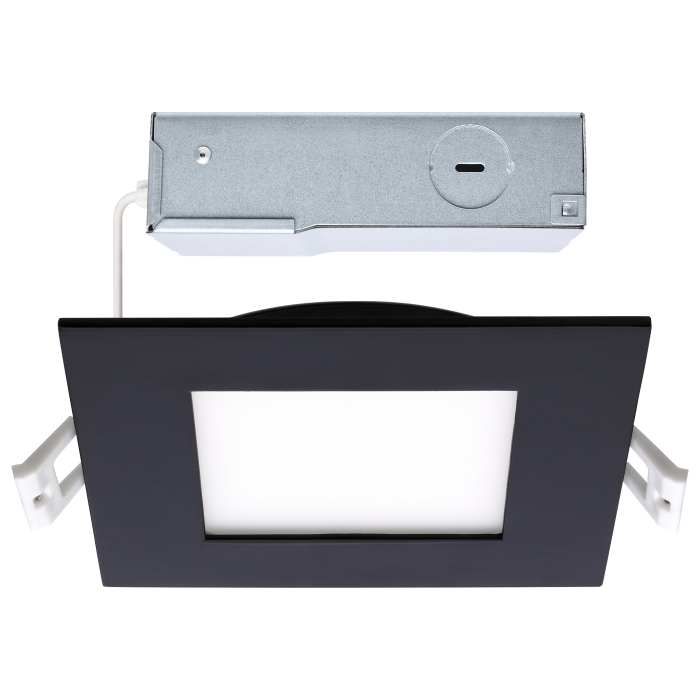

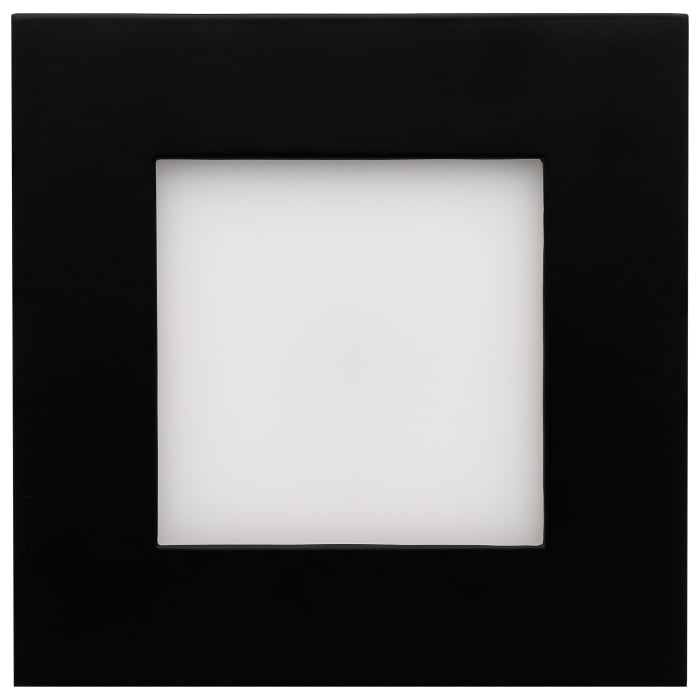

4 Inch Black Square 10 Watt LED Direct Wire Downlight; CCT Selectable
- 10 Watt LED Direct Wire Downlight
- 4-Inch
- CCT Selectable
- Square

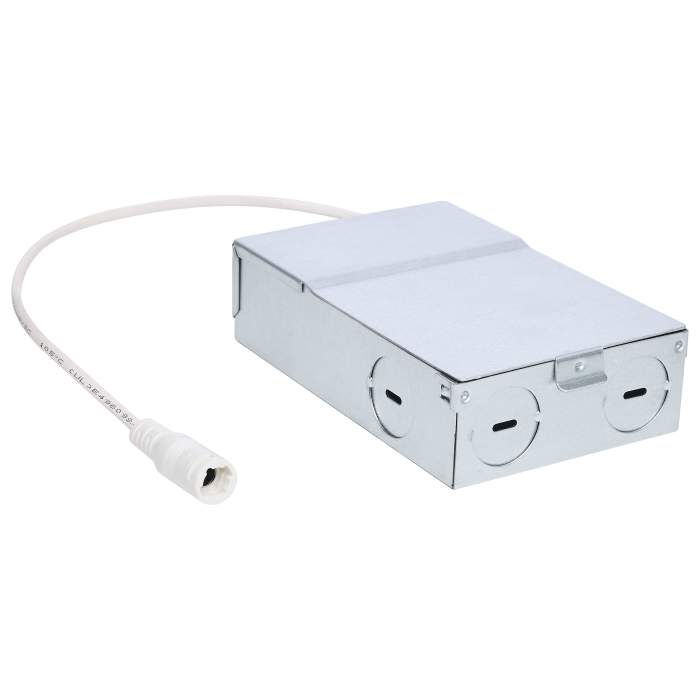

- Remote Driver
- Black Finish
General
| Company | SATCO |
|---|---|
| EA Height | 5.39 |
| EA Width | 2.36 |
| EA Length | 5.91 |
| Mounting Height | 2.28 |
| Mounting Length | 4.25 |
| Bulb Included | Integrated |
| Center Beam Candle Power | 330 |
| Material | Aluminum |
| Fixture Type | Direct Wire LED Downlight |
| Product Notes | Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <20% |
| Up Down Installation | Down |

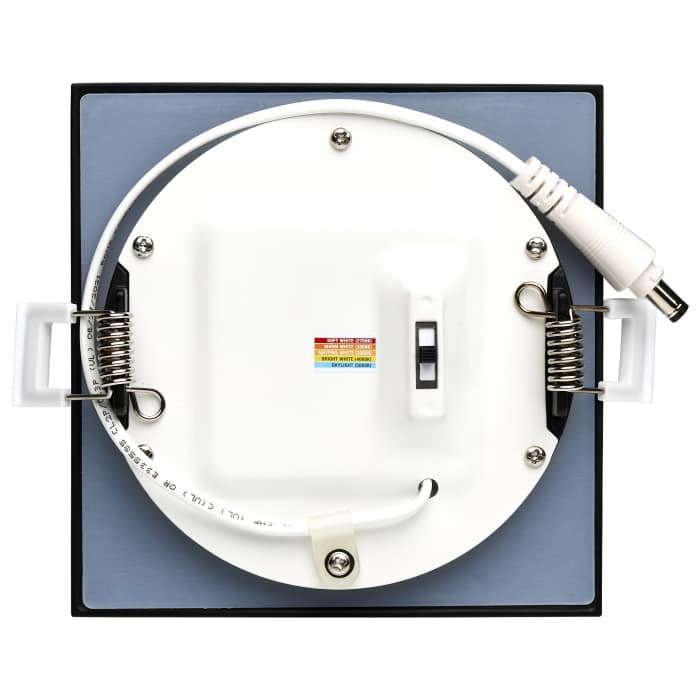

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | Black |
| Amps | 0.100A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Polymethyl methacrylate (PMMA) |
| Nominal Length | 4.0 |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | Yes |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 65W |
Electrical
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Linear Dimming, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Lumens | 850L |
| Volts | 120v |
