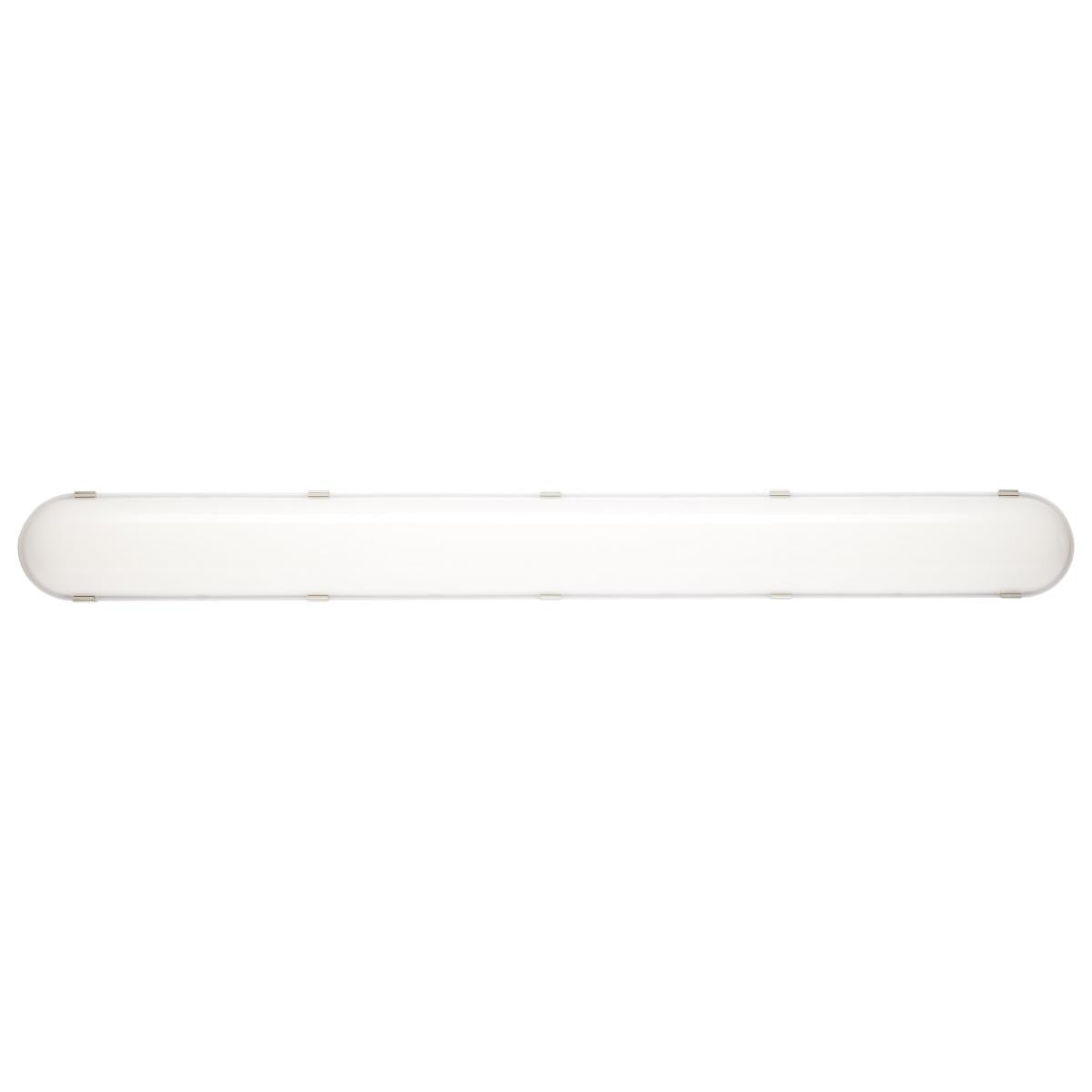

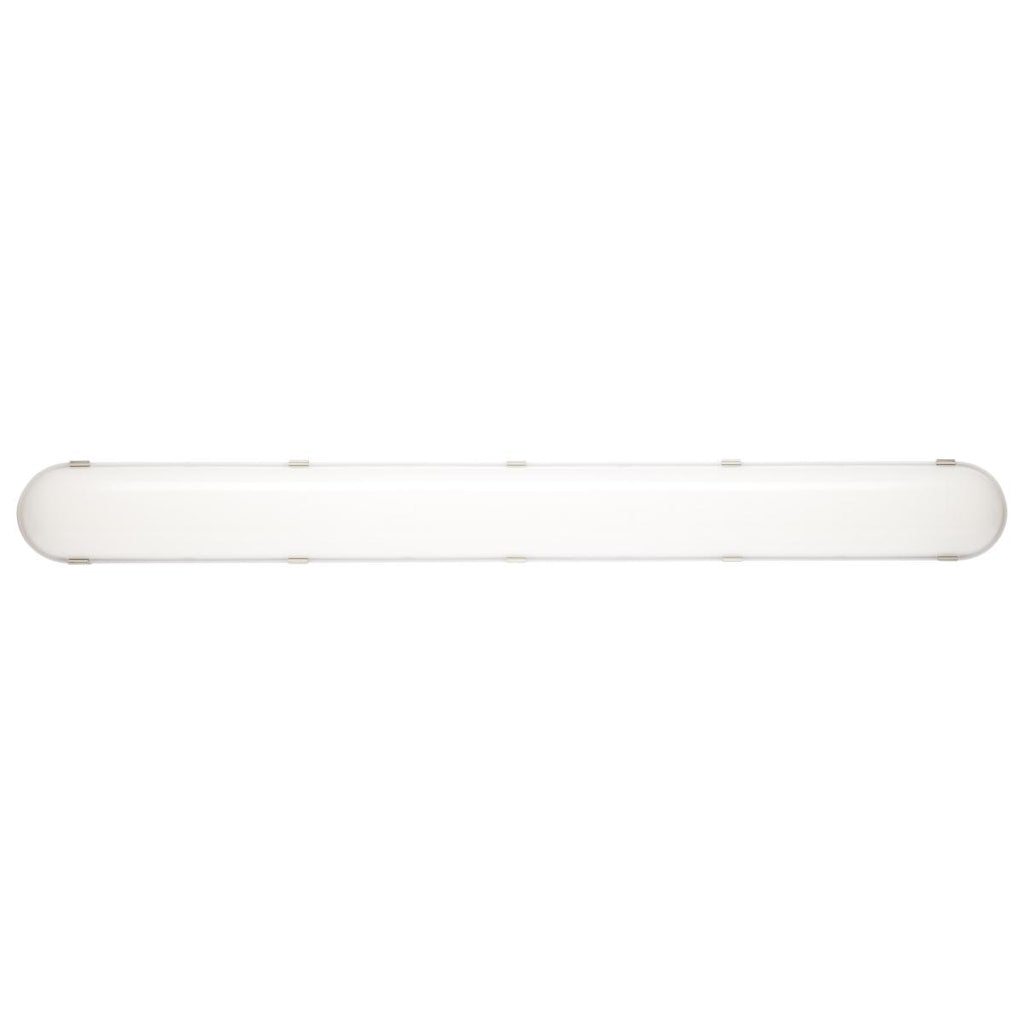

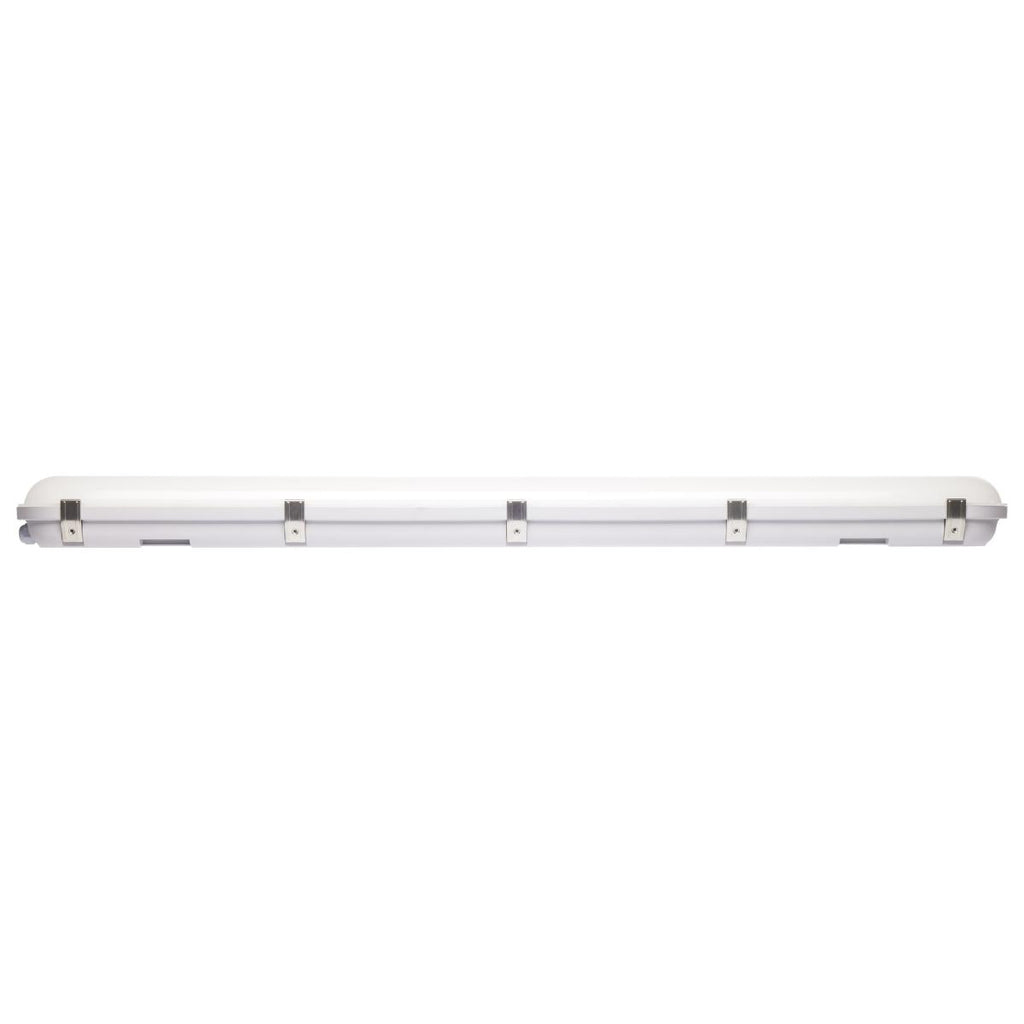

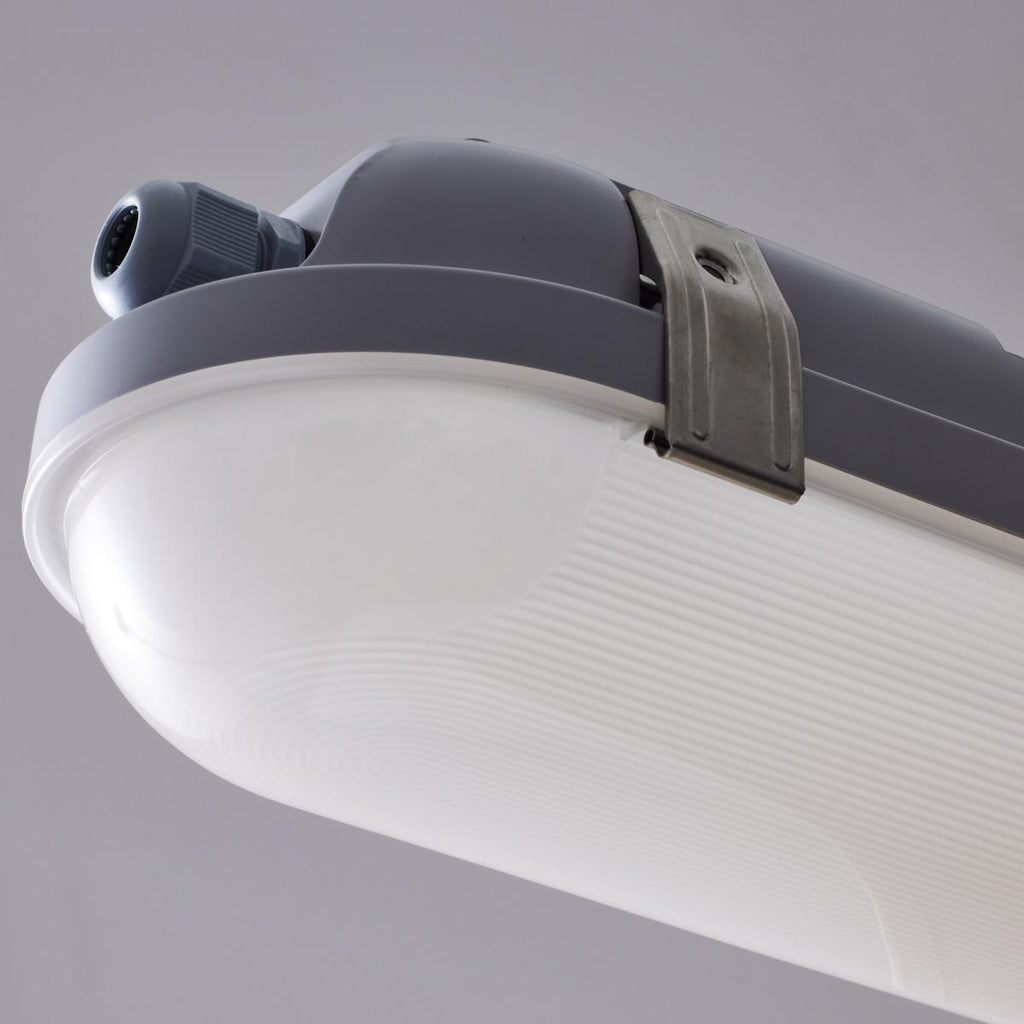

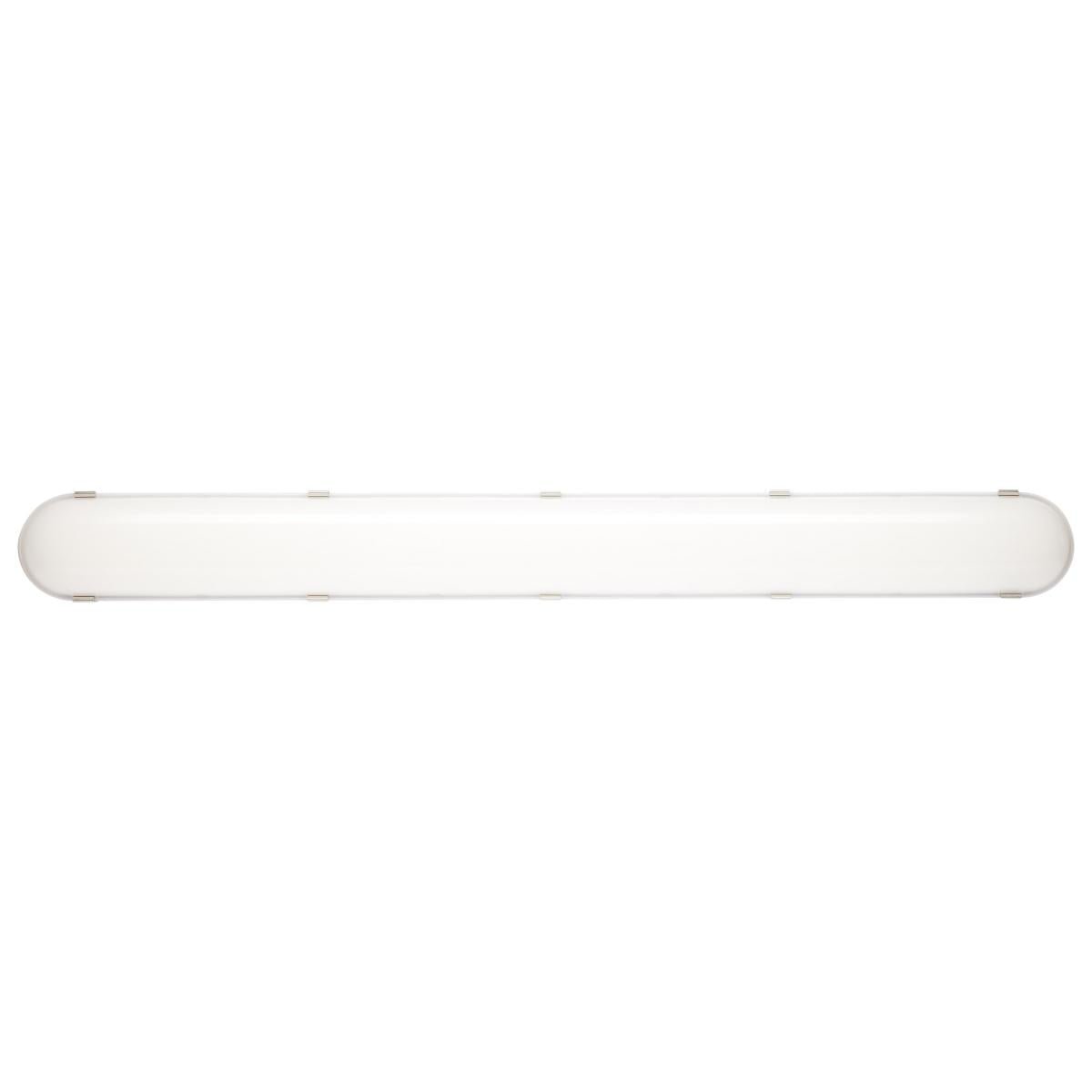

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

Part : 65-821R1

Price:
Sale price$114.99

Please contact us for quantity discount

Description

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

pdf download

Our LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These products are offered with or without integrated microwave sensors. All of this makes for a versatile fixture family that will cover multiple applications. No matter how difficult the environment, there's a fixture to meet the need.

  • 120-347 Voltage - FOR USE IN CANADA
  • Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories
  • IP65 and IK08 Rated
  • CCT and Wattage Selectable
  • 2KV built-in Surge Protection
  • Non-corrosive (PC) polycarbonate housing
  • 0-10V Dimmable

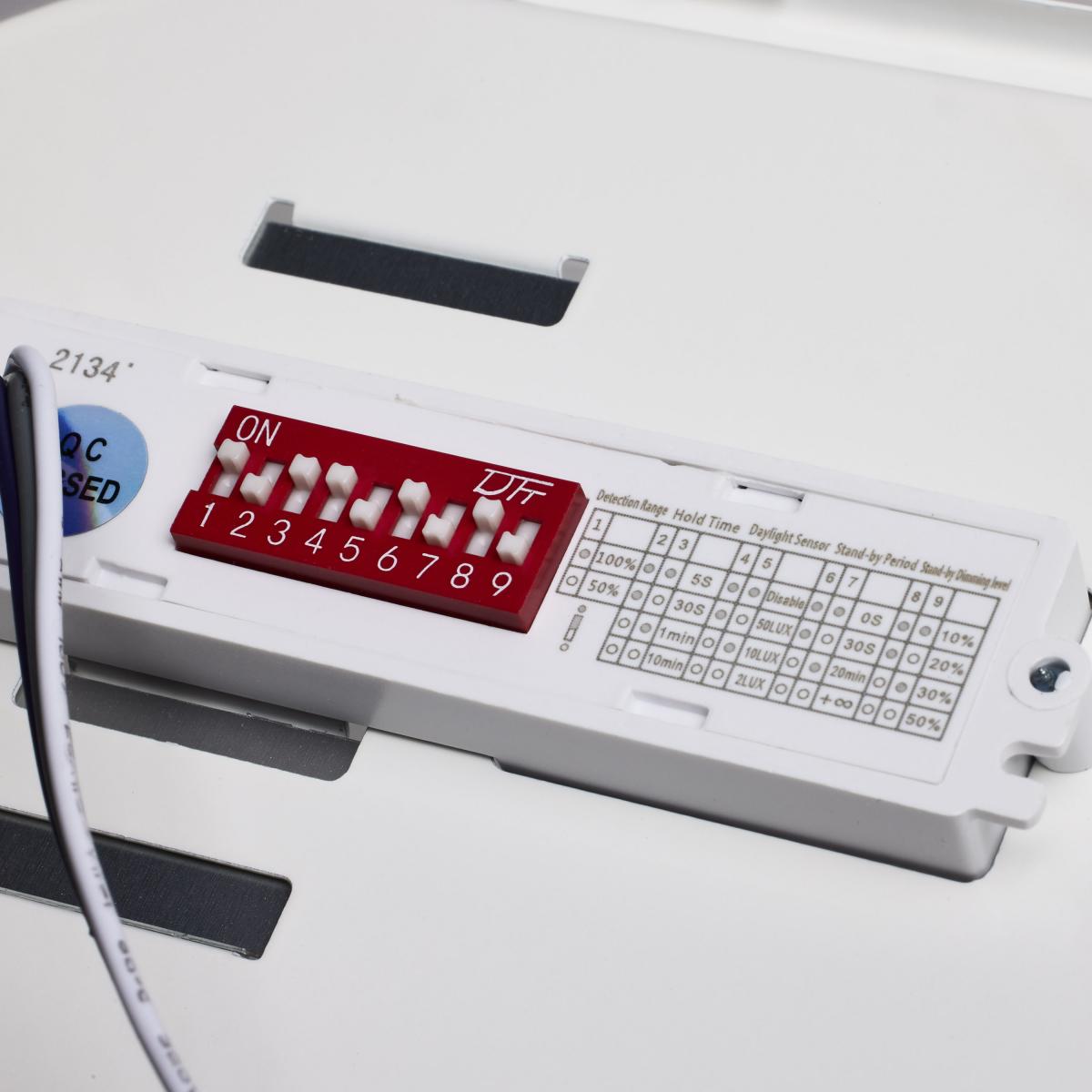

  • Integrated Microwave Sensor
  • 5 Year Warranty



General
Status Active
Fixture Type Vapor Tight
Finish Gray
Wattage 40W/50W/60W
Lumen Output 5360L-7991L
CCT (Kelvin) 3000K/4000K/5000K
Temperature Warm to Cool White
IP Rating IP65
Indoor or Outdoor Fixture Indoor; Outdoor
Specifications
Technology LED
Wattage 40W/50W/60W
Lumen Output 5360L-7991L
CCT (Kelvin) 3000K/4000K/5000K
Color Temperature Warm to Cool White
CRI 80
Voltage 120V-347V
Beam Angle 120
Rated Hours 50000
Operating Temperature -40C (-40F) to +45C (+113F)
Dimmable Yes-Dimmable
Dimming Note 0-10V Dimming
Lens Material Polycarbonate (PC)
Surge Protection Built-in surge protection - 2KV
Weight (lb.) 5.07
IP Rating IP65
Material Plastic
Dimensions
Height (in.) 3.46
Width (in.) 4.92
Length (in.) 47.24
Compliance
Safety Listing cETLus - Listed
Location Rating Wet
Energy Star No
DLC Approved Yes
DLC ID S-8CX59R; S-QRI8BK
NSF Approved Yes
CA T20 / T24 Rationale T20 Exempt - Fixtures Not Regulated
California Status Lawful for sale in California
Title 20 / 24 Status Lawful for sale
California Prop 65
RoHS Compliant Yes
FCC Compliant Yes
Flicker Free No
SDS Sheet LED Fixture
Additional Information
Warranty 5 Year Limited - Fixtures
Packaging
Each UPC 045923650963
Each Quantity 1
Each Length (in.) 49.61
Each Width (in.) 5.71
Each Height (in.) 3.94
Each Weight (lb.) 6.17
