3 In. Black Canless LED Downlight Kit- CCT

Part : REL31120SRDBK

Price:
Sale price$22.00

Please contact us for quantity discount


Description

3 In. Black Canless LED Downlight Kit- CCT

Features

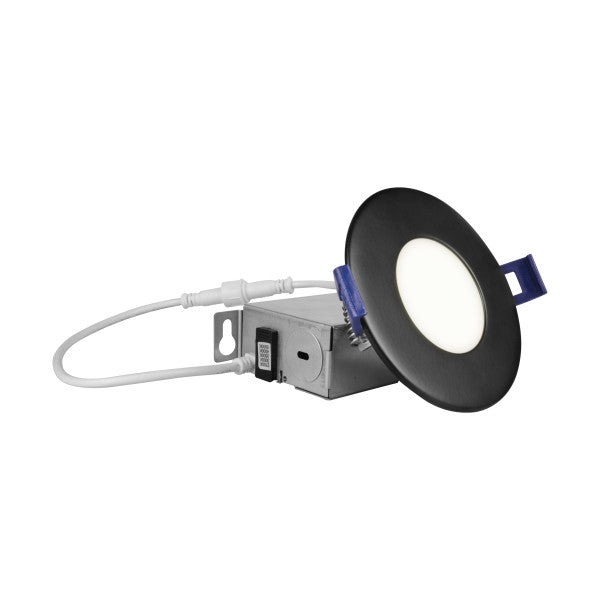

  • Includes Black downlight, driver/junction box, and linking cable
  • Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
  • Available in four sizes: 3-inch, 4-inch, 6-inch, and 8-inch fixtures
  • Produces up to 616 Lumens using less than 8-Watts
  • Installs directly into ceiling, no housing required

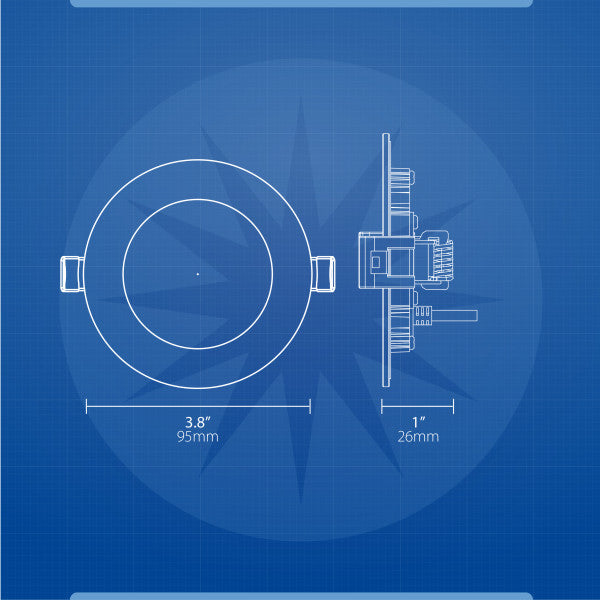

  • 3.25” diameter cut-out template included
  • Dimmable to 5% using standard TRIAC or ELV dimmers
  • Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
  • Energy Star rated, Title 24, JA8, and RoHS Compliant
  • Protected by NICOR's 5-year limited warranty

ATTRIBUTES

Model Number
REL31120SRDBK
Product Title
REL Selectable 3 in. Black Remodel LED Downlight Kit
UPC
767706213676

DESCRIPTION

-

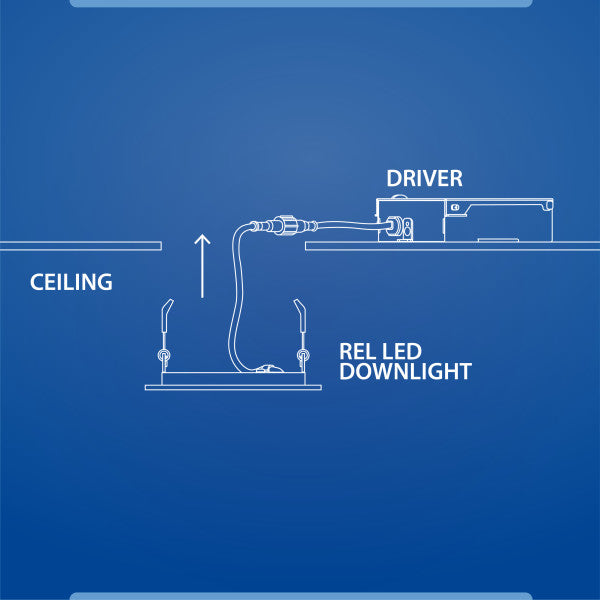

NICOR’s REL Series 3-inch Selectable CCT Round Canless LED Downlight offers a clean and attractive aesthetic with a low-profile. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. Easily change between 5 color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) with the CCT selector switch on the driver. The high-performance REL Fixture features an impressive 92 CRI rating (R9 >50) to produce an incredible light output quality. Installation no longer requires a recessed housing, but rather a simple 3.25” diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Protected by NICOR's 5-year limited warranty.

SPECS

Size (in.)
3
Product Color
Black
Finish
Powder Coat
Light Source
LED
Wattage
7.79 (2700K)
7.65 (3000K)
7.52 (3500K)
7.63 (4000K)
7.78 (5000K)
Wattage Equivalent
60
Lumen Output
553 (2700K)
587 (3000K)
608 (3500K)
616 (4000K)
607 (5000K)
Lumens Per Watt
71.0 (2700K)
76.8 (3000K)
80.9 (3500K)
80.7 (4000K)
78.1 (5000K)
Color Temperature (CCT)
2700K
3000K
3500K
4000K
5000K
CRI
92
R9 Value
54
Dimmable?
Yes
Dimming Type
TRIAC ELV
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Listings/Certifications
ETL Intertek Listed
cETL Intertek Listed
Title 24 (Except 5000K)
JA8 (Except 5000K)
IC-Rated
Airtight (ASTM E283)
NFPA 70 Compliant
NEC 410.16 (A)(3)
NEC 410.16 (C)(5)
RoHS Compliant
FCC Class B
Wet-Location (ETL 1598)
