Description

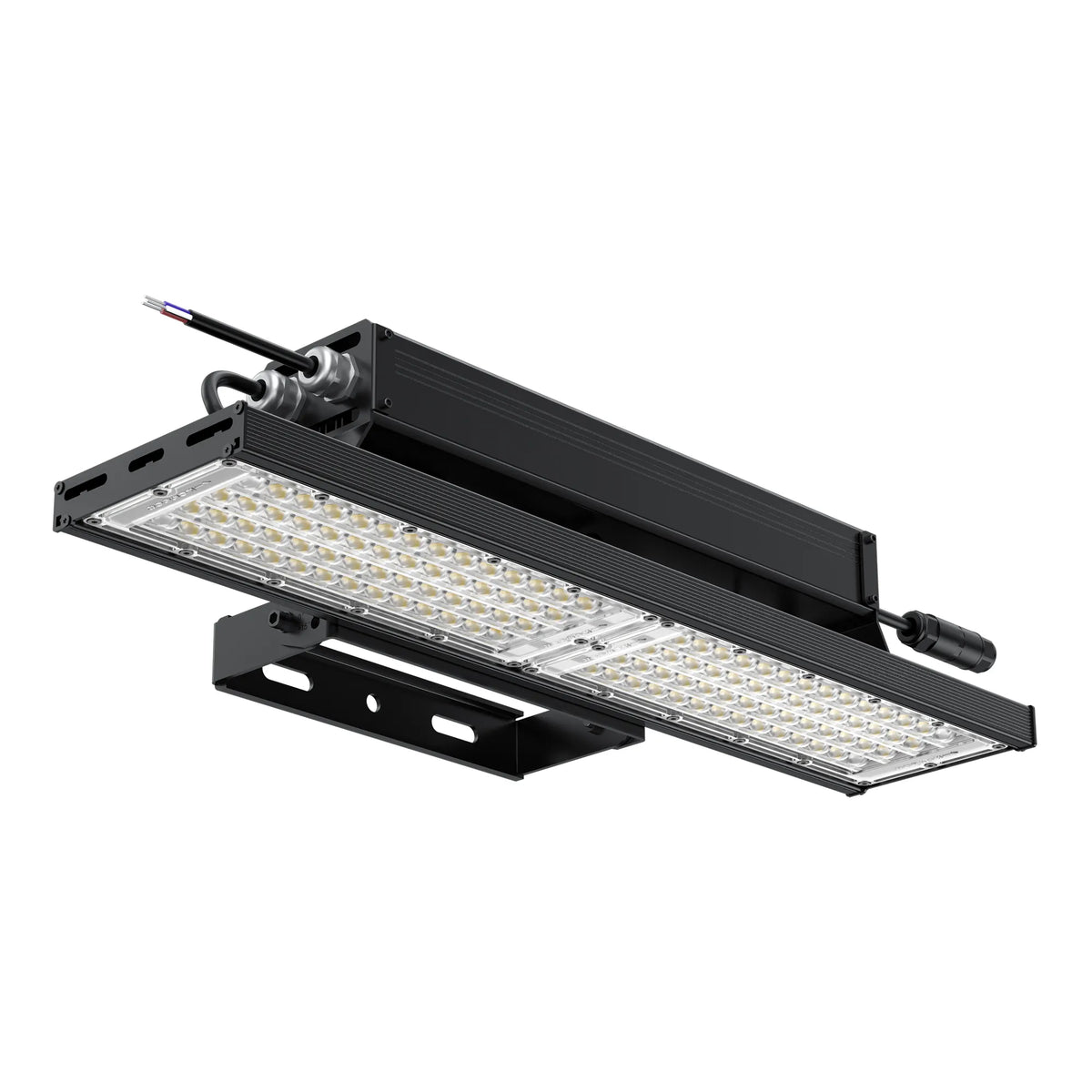

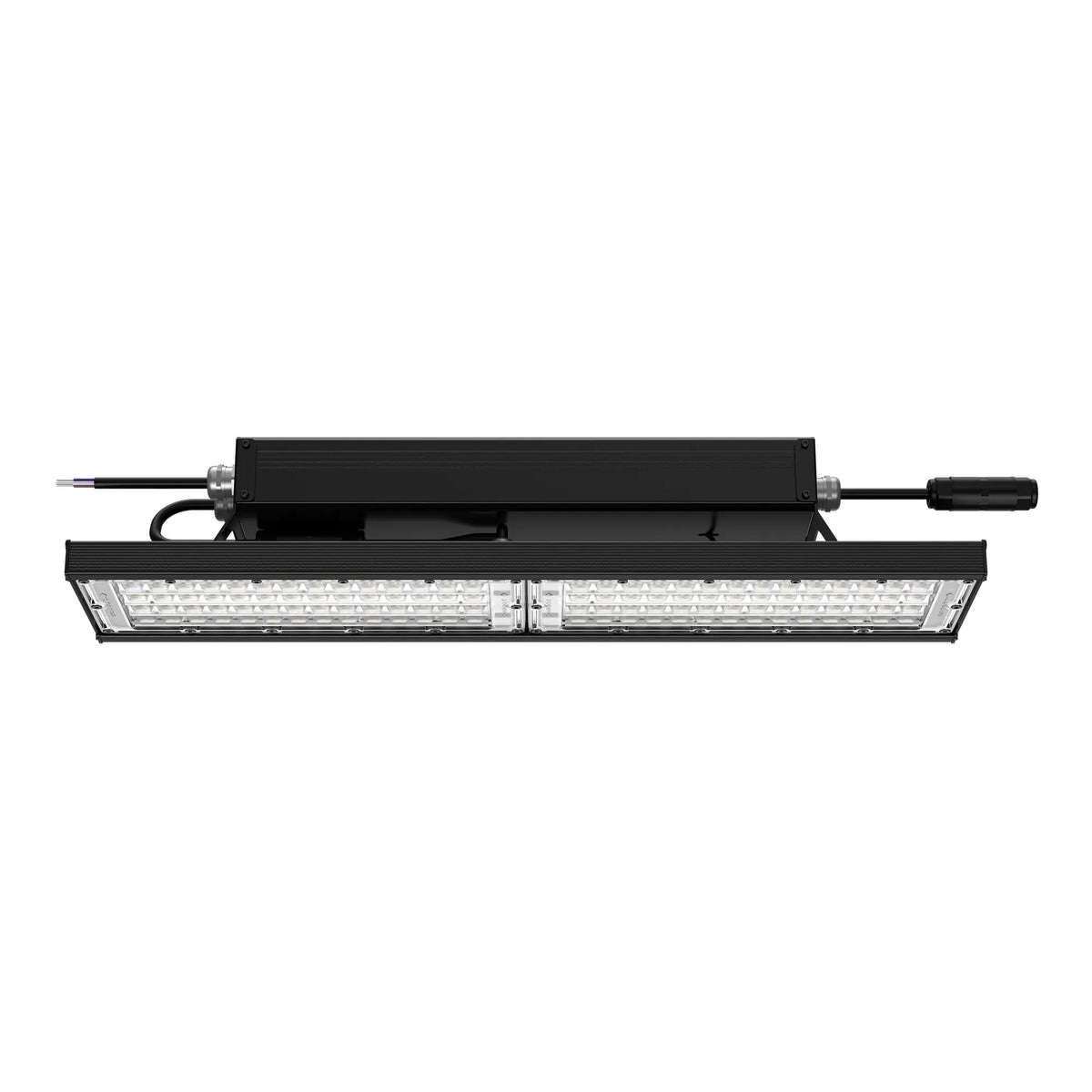

240W LED Pickleball Court Light; 41,594LM, 5000K, IP66, IK10, C5, 0-10V dimming, Yoke Mount Included
The SFP-240W-50K Pickleball Court Light is a precision LED sports light designed for outdoor and indoor pickleball and padel courts. Its 5000K LED system, asymmetrical 38° optics, and wide luminous surface help deliver uniform court illumination with reduced glare. The fixture includes a yoke mount for adjustable aiming.
Backed by a 7-year warranty
FEATURES:
– Designed specifically for pickleball and padel court lighting
– Optimized sports-light optical design for court visibility and uniformity
– Wide luminous surface helps reduce harsh hot spots
– High-efficiency performance up to 174LM/W

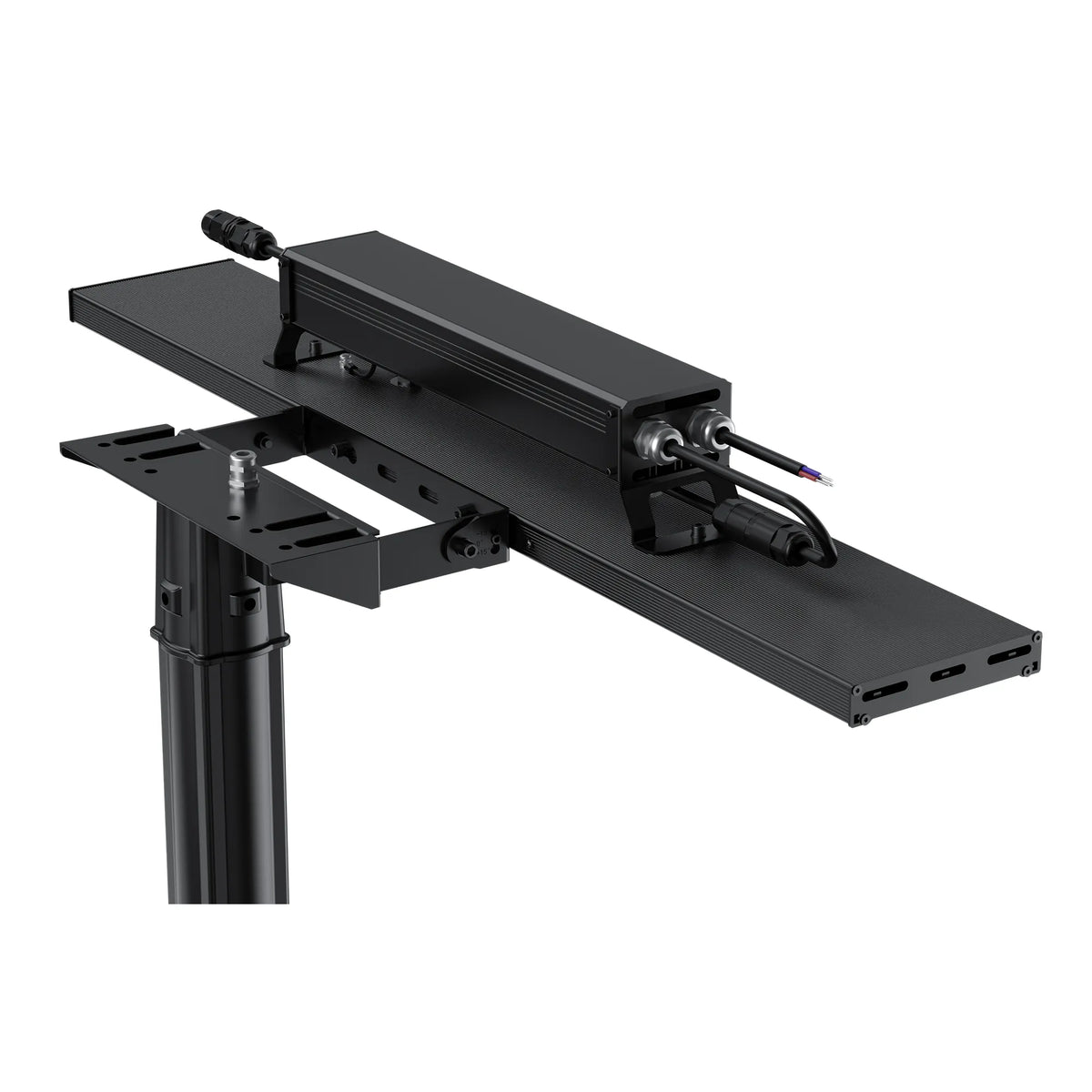

– Yoke mount included for adjustable aiming
– Optional slip-fitter pole adapter available for pole-mounted installations
– UL certified
– 7-year warranty
Technical Specs
- :: Wattage: 240W (±5%)
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Driver Type: Constant current
- :: Dimming: 0-10V
- :: Power Factor: >0.9
- :: THD: <10% at 120V
- :: Flicker Factor: <2%
- :: Surge Protection: L-N: 6KV, L/N-E: 6KV
- :: Electrical Class: Class I
- :: Operating Temperature: -22°F to +113°F
- :: Housing Material: Aluminum alloy
- :: Housing Finish: Black, RAL9017
- :: Finish Treatment: Special surface treatment with powder coating
- :: Optic Material: Polycarbonate
- :: Mounting Bracket Material: ZAM
- :: Yoke mount included
- :: Optional Slip-Fitter Pole Adapter: SFP-SF (standard 2-3/8" OD round pole tenon)
- :: Fixture Dimensions: 24.45" L x 9.76" W x 5.00" H
- :: Luminaire Weight: 8.16 lbs
- :: Mounting Bracket Weight: 1.54 lbs
- :: Windage Area: 0.938 sq. ft. at 0°, 1.123 sq. ft. at 15°
- :: Ingress Protection: IP66
- :: Impact Resistance: IK10
- :: Corrosion Category: C5, ISO 9223:2012
- :: Passed 1500-hour salt spray test
- :: Delivered Lumens: 41,594 LM
- :: Efficacy: 173 LM/W
- :: CCT: 5000K
- :: CRI: Ra70
