Description

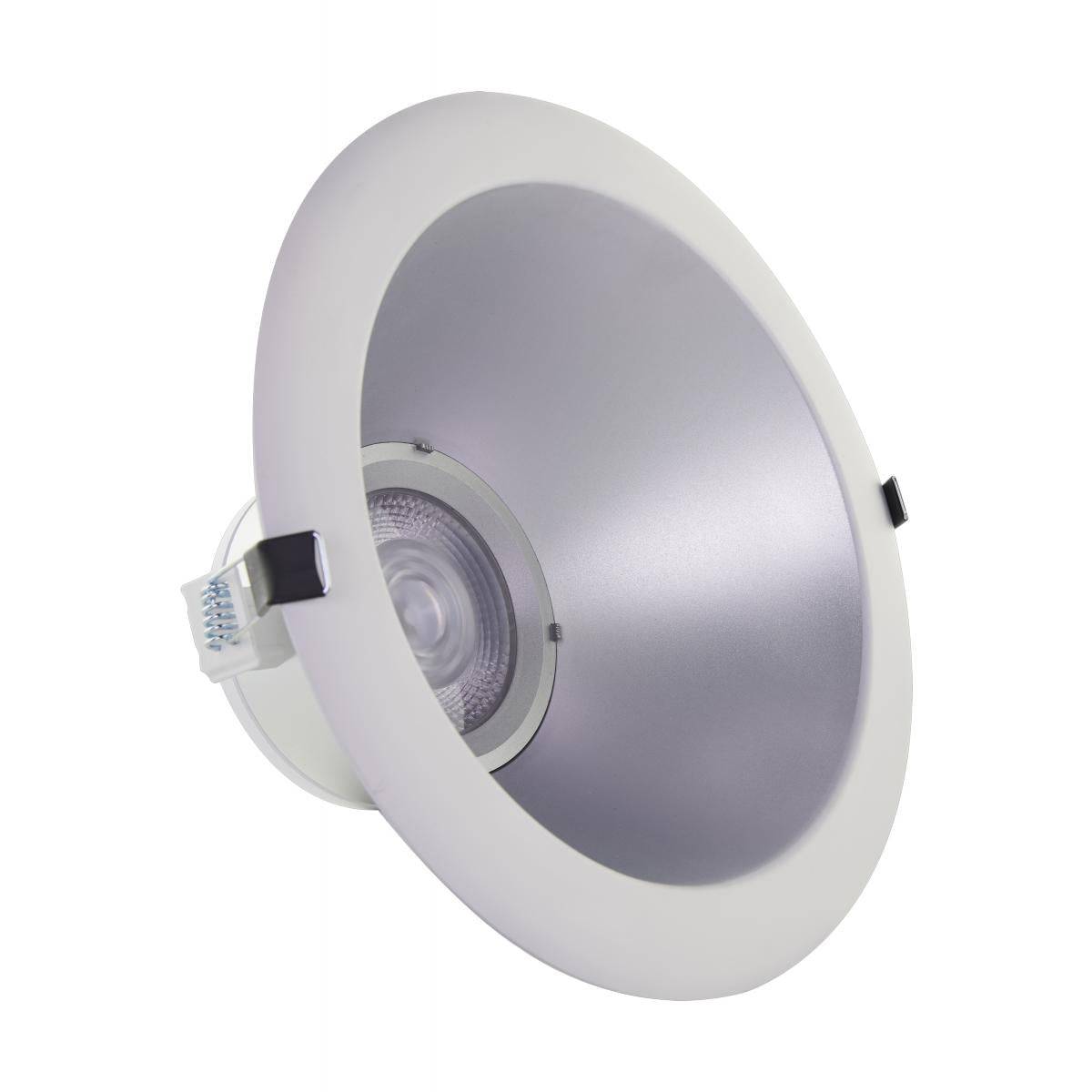

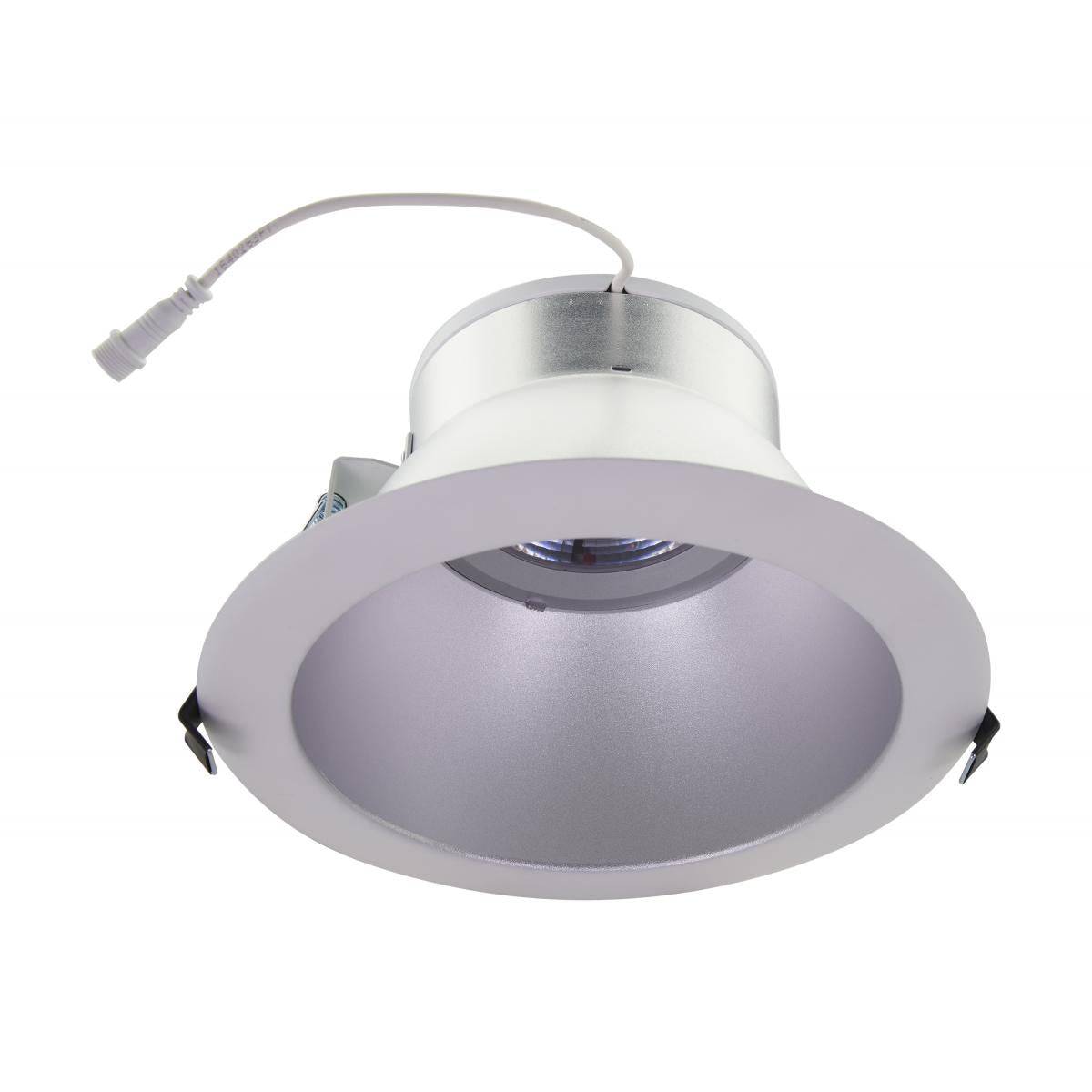

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts securely into the mounting plates, sold separately, for new construction. The spring-loaded arms ensure a tight fit in both settings.
- Lawful for sale in California
- Selectable wattage, lumens, and CCT
- Remote driver and J-box with knockouts
- Quick connect feature for easy installation
- ENERGY STAR listed
- Five year limited warranty
General
| Status | Active |
| Recessed Can Size | 6 in. |
| Wattage | 11W/16W/23W |
| Voltage | 120V-277V |
| Finish | Silver |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| Lumen Output | 900L/1200L/1750L |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 11W/16W/23W |
| Lumen Output | 900L/1200L/1750L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 40 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
Dimensions
| Width (in.) | 6.77 |
| Height (in.) | 3.87 |
| Weight (lb.) | 1.47 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Damp |
| Energy Star | Yes |
| ES Unique ID | ESID-2353227 |
| DLC Approved | No |
| Air Tight Rated | No |
| IC Rated | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | Lawful for sale |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Additional Information
| Installation Notes | Can be installed with or without the rough-in plate (80-959) |
| Warranty | 5 Year Limited - LED Commercial Downlights |
Packaging
| Each UPC | 045923118159 |
| Each Quantity | 1 |
| Each Length (in.) | 7.48 |
| Each Width (in.) | 7.48 |
| Each Height (in.) | 6.30 |
