Description

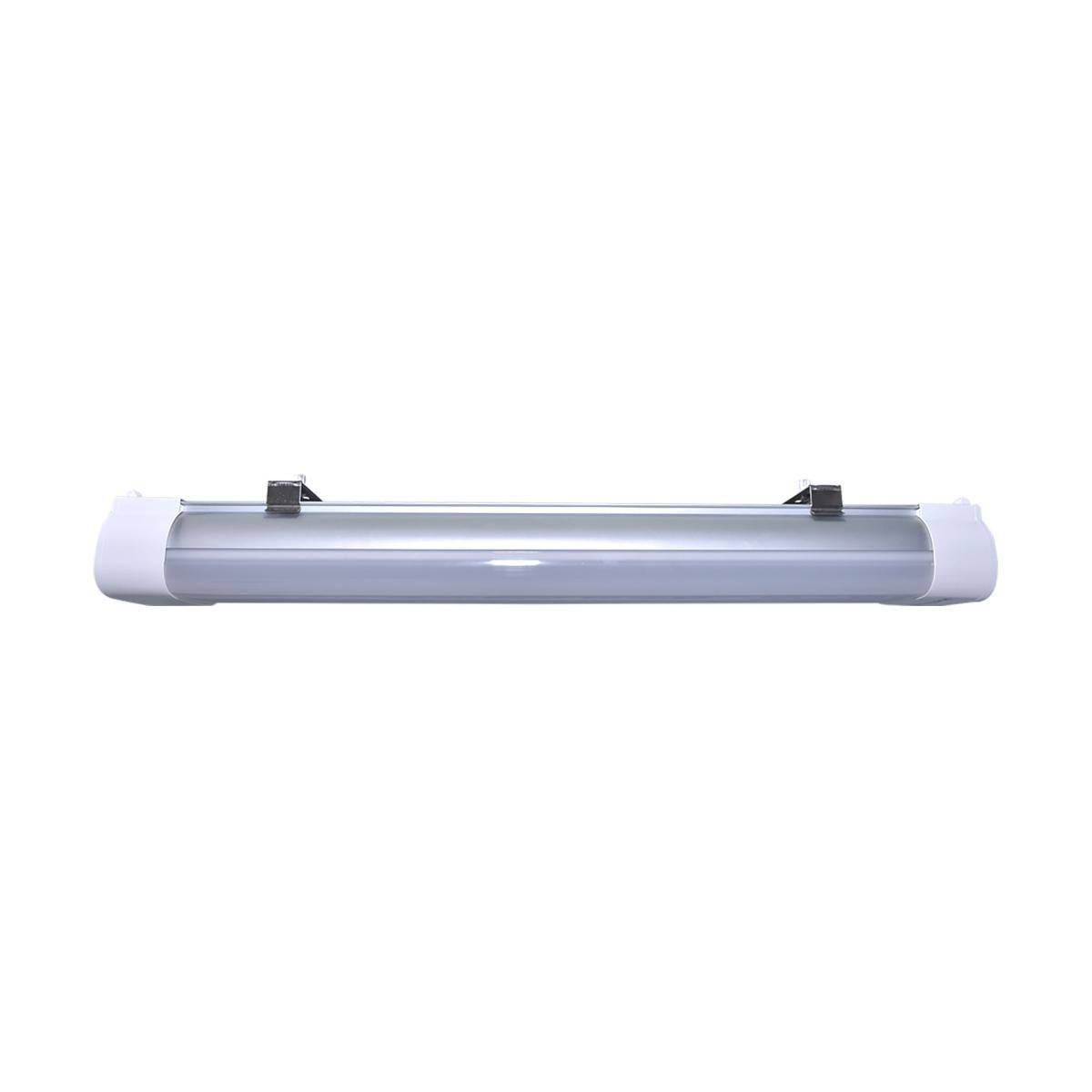

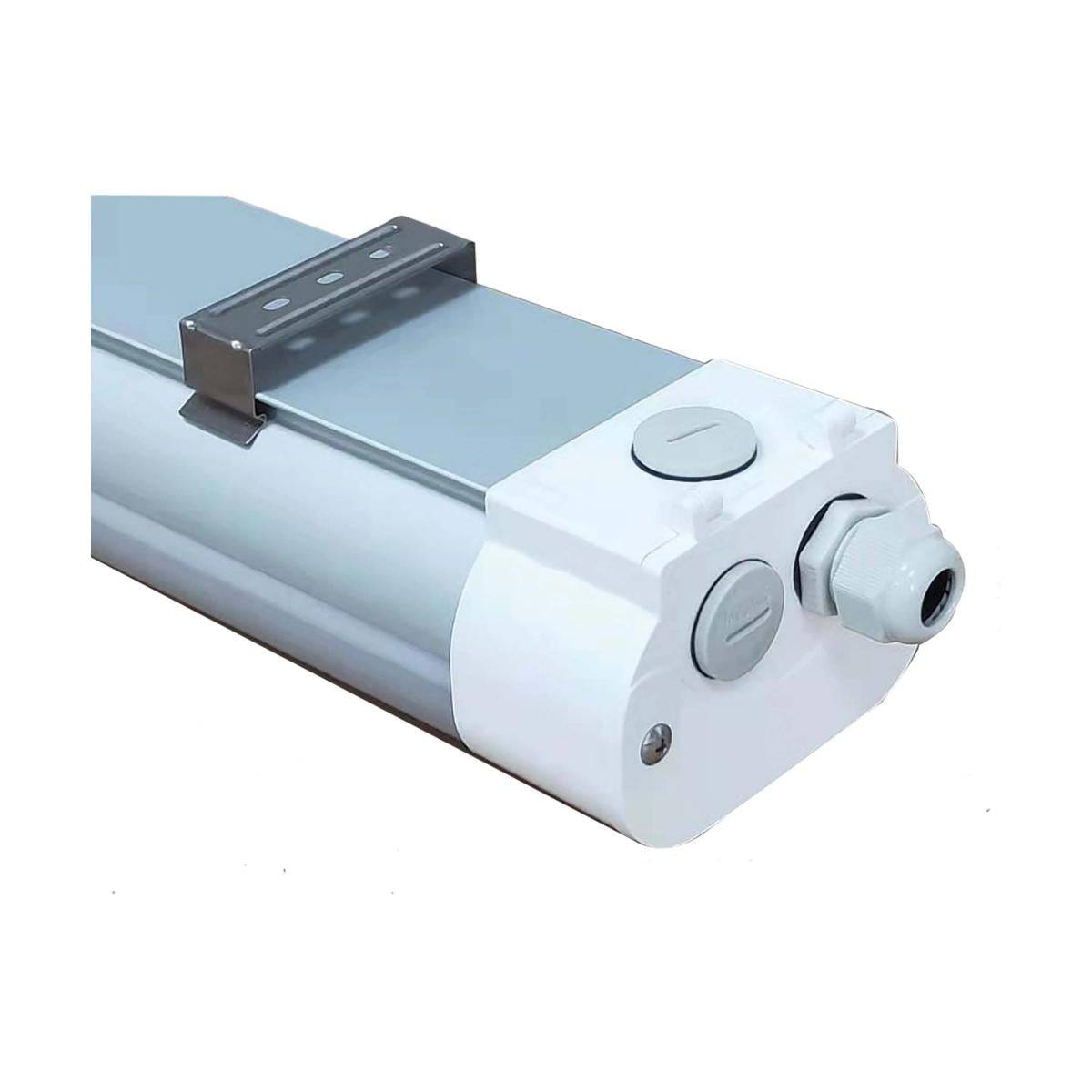

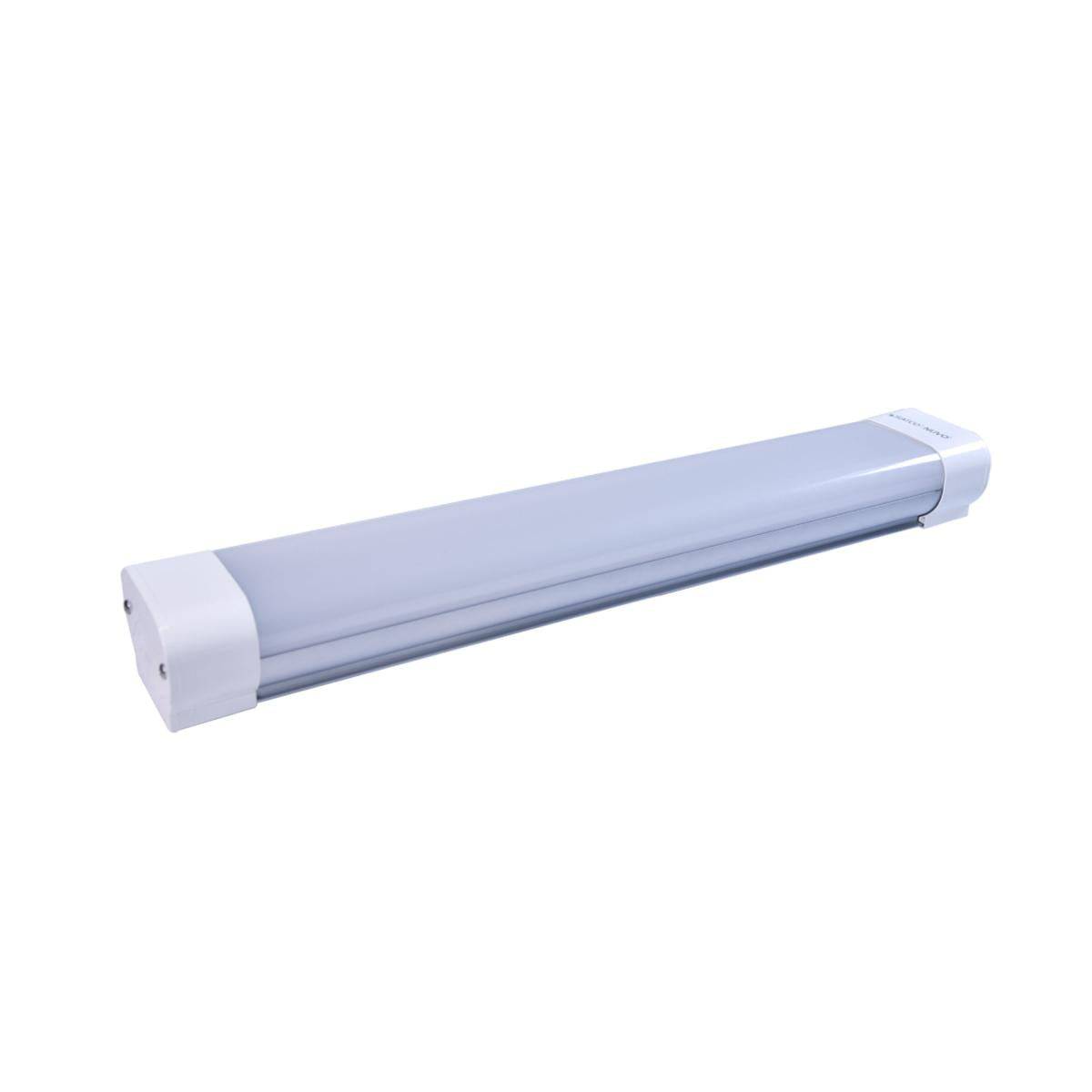

2 Foot; 20 Watt; LED Tri-Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming
65-830
2' 20W LED TRI-PROOF LINEAR
General
| Status | Active |
| Fixture Type | Vapor Tight |
| Finish | White and Gray |
| Wattage | 20W |
| Lumen Output | 2065L-2249L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Temperature | Warm to Cool White |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Indoor and Outdoor |
Specifications
| Technology | LED |
| Wattage | 20W |
| Lumen Output | 2065L-2249L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 100V-277V |
| Beam Angle | 115 |
| Rated Hours | 50000 |
| Operating Temperature | -40C (-40F) to a maximum of +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 2KV |
| Weight (lb.) | 2.65 |
| IP Rating | IP65 |
| Material | Plastic |
Dimensions
| Height (in.) | 3.11 |
| Width (in.) | 3.98 |
| Length (in.) | 23.62 |
Compliance
| Safety Listing | cETLus |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLIRMMY8BKKX |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Status | Lawful for sale in California |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | No |
Additional Information
| Warranty | 5 Year Limited |
Packaging
| Each UPC | 045923650673 |
| Each Quantity | 1 |
| Each Length (in.) | 25.98 |
| Each Width (in.) | 6.89 |
| Each Height (in.) | 4.33 |
| Each Weight (lb.) | 2.94 |
