Description

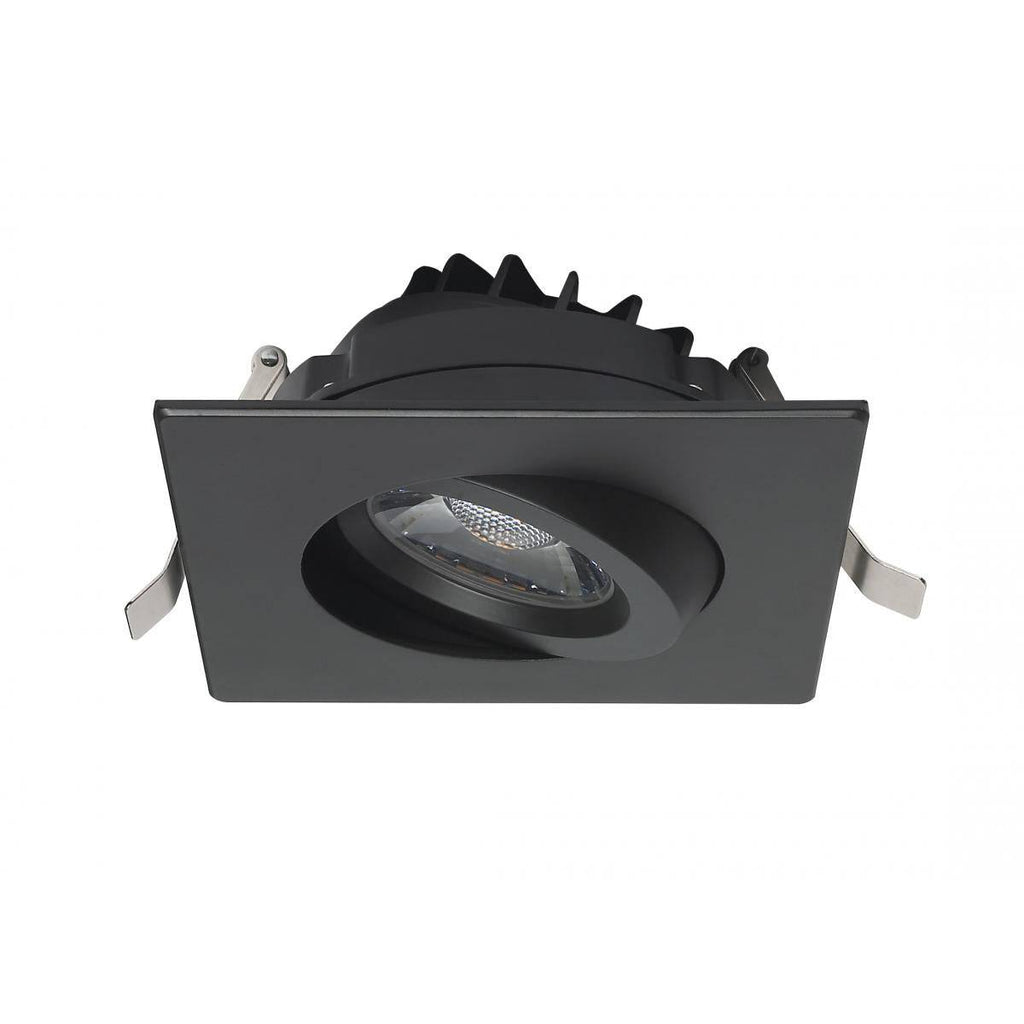

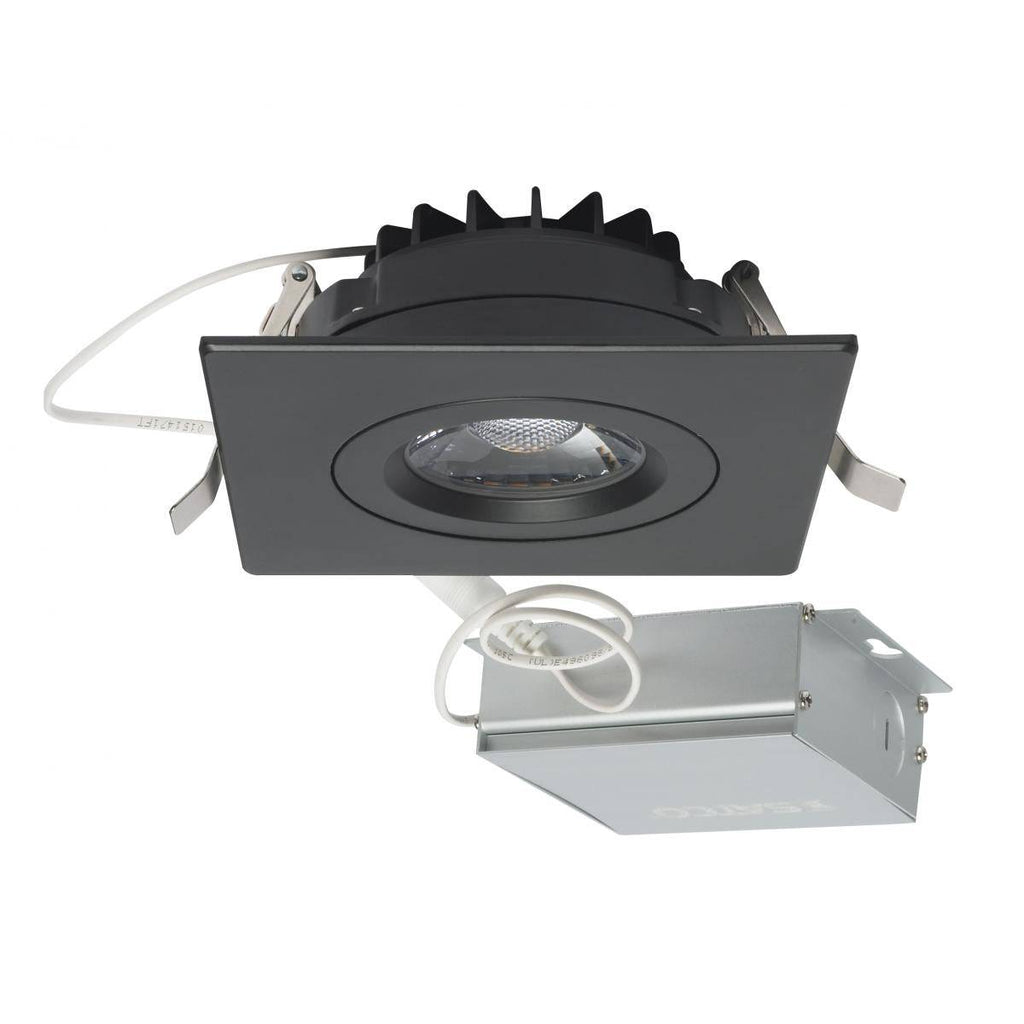

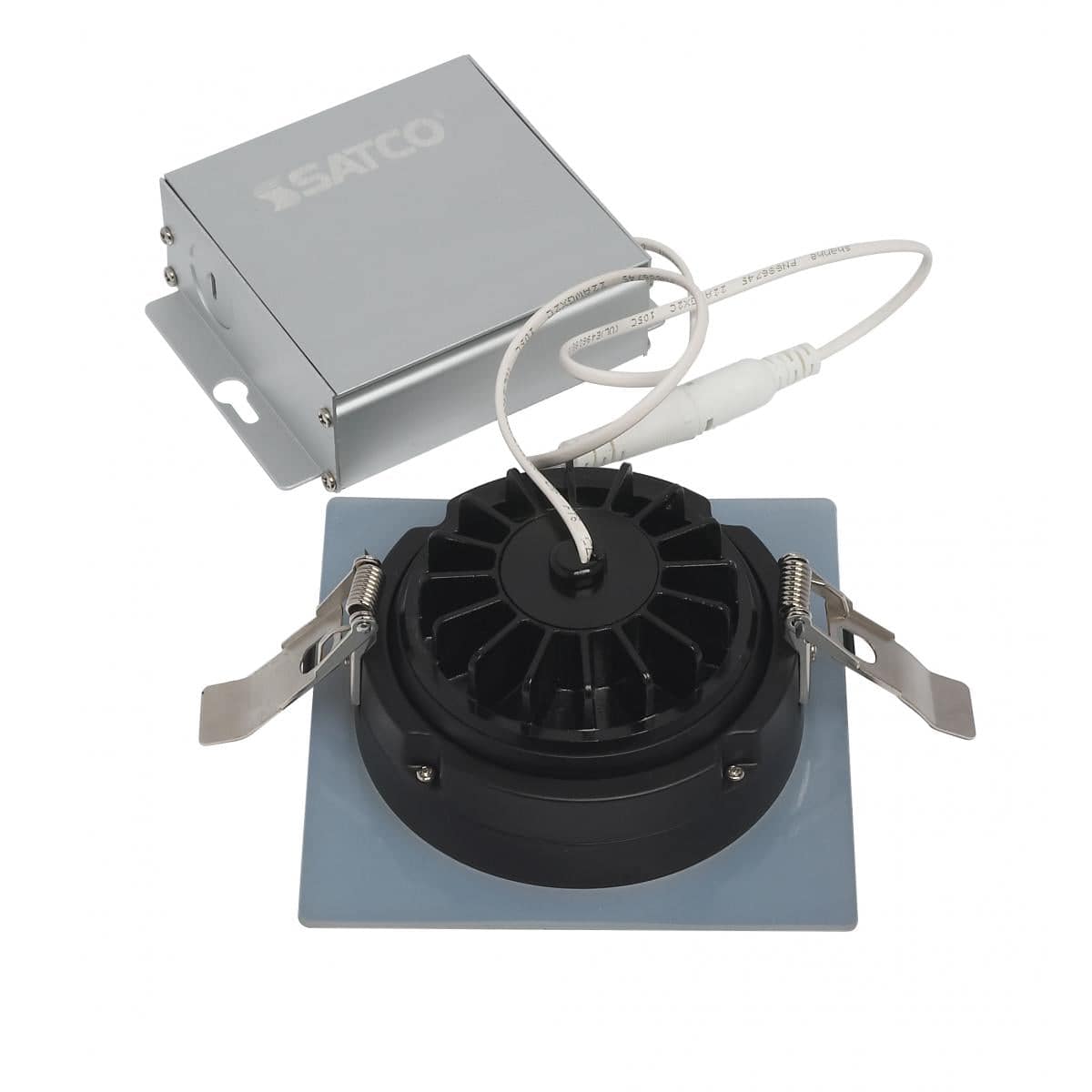

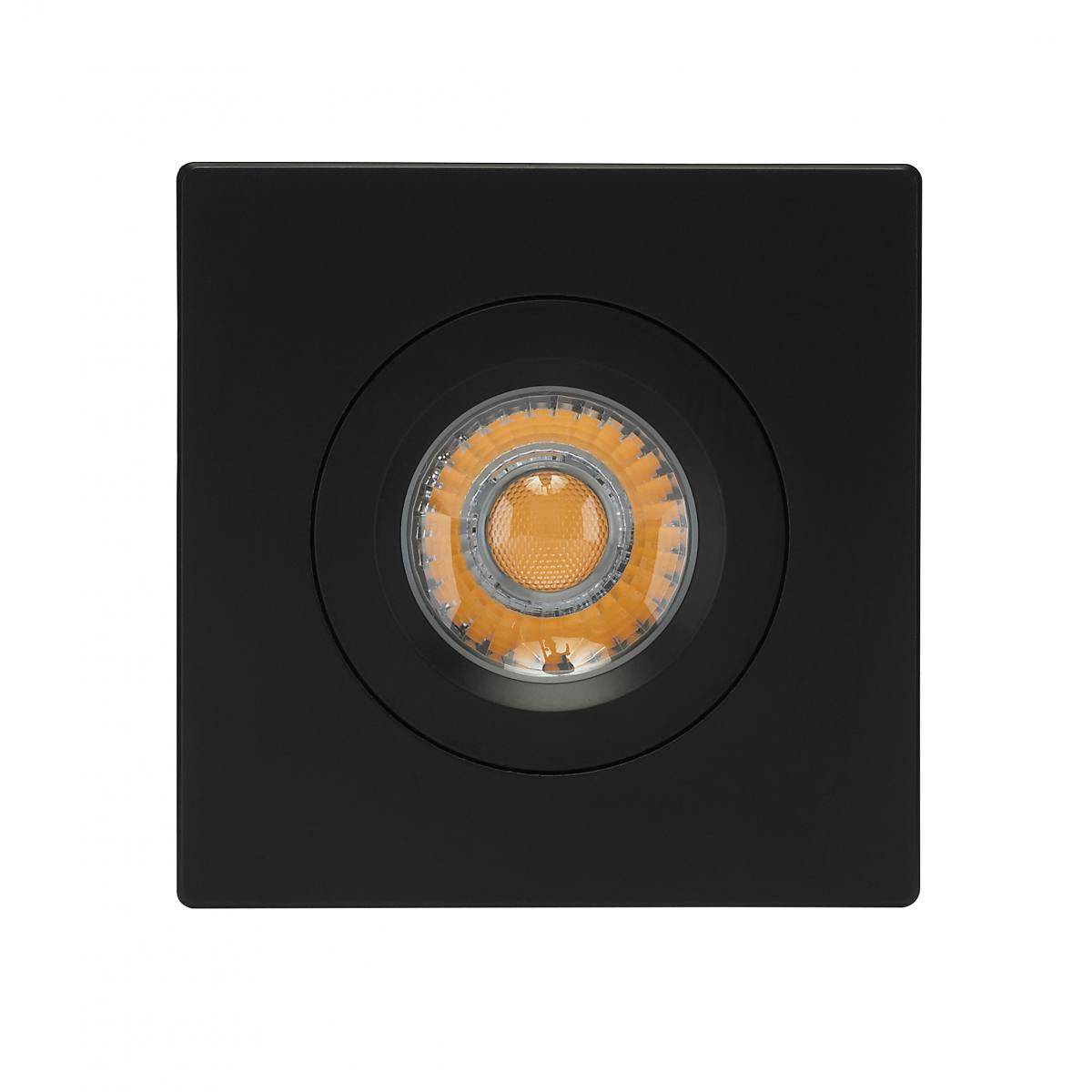

12 watt LED Direct Wire Downlight; Gimbaled; 4 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Black
S11622
12WLED/DW/GBL/4/930/SQ/RD/BK
General
| Status | Active |
| Wattage | 12W |
| Voltage | 120V |
| Finish | Black |
| CCT (Kelvin) | 3000K |
| Color Temperature | Warm White |
| Lumen Output | 850L |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 12W |
| Lumen Output | 850L |
| CCT (Kelvin) | 3000K |
| Color Temperature | Warm White |
| CRI | 90 |
| Voltage | 120V |
| Beam Angle | 40 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| IC Rated | Yes |
| Sloped Ceiling | Yes |
Dimensions
| Length (in.) | 4.88 |
| Width (in.) | 4.88 |
| Height (in.) | 2.00 |
| Weight (lb.) | 1.47 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| UL Application | Ceiling |
| Energy Star | Yes |
| ES Unique ID | ESID-2337199 |
| CA T20 / T24 Rationale | California T24 2016 & 2019 JA8 Listed |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Additional Information
| Additional Information | Integrated j-box for direct wire installation |
| Specification Note | Aiming Angle: 30dg |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923116223 |
