Description

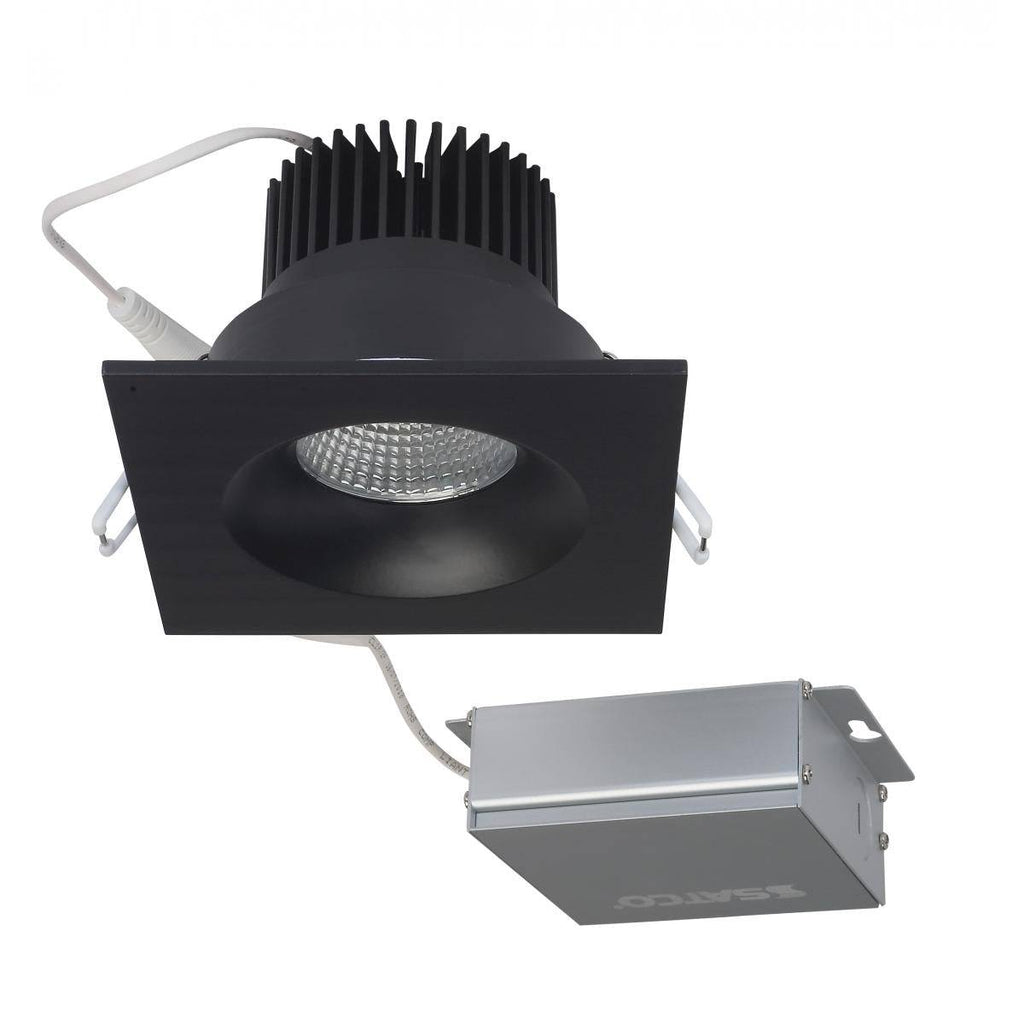

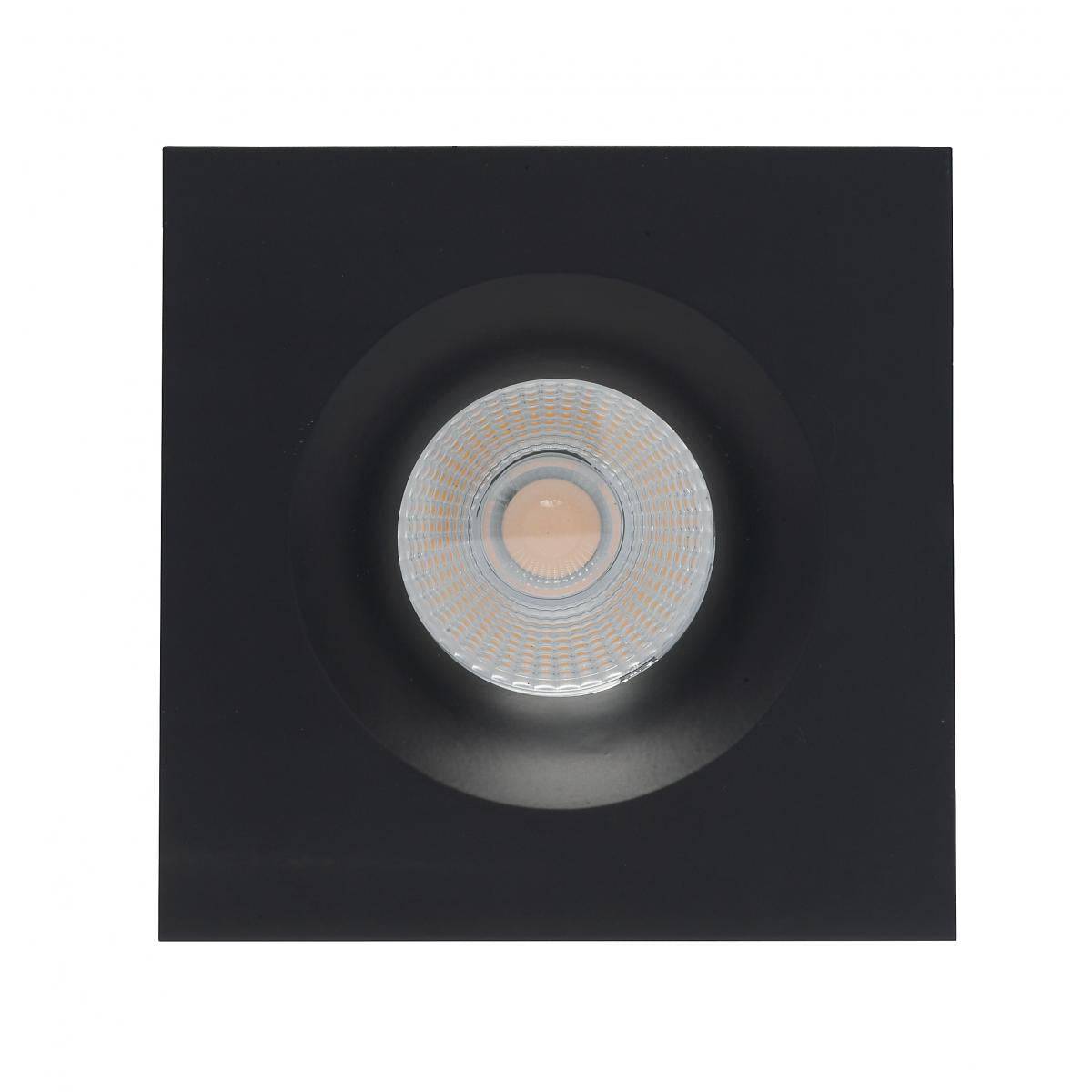

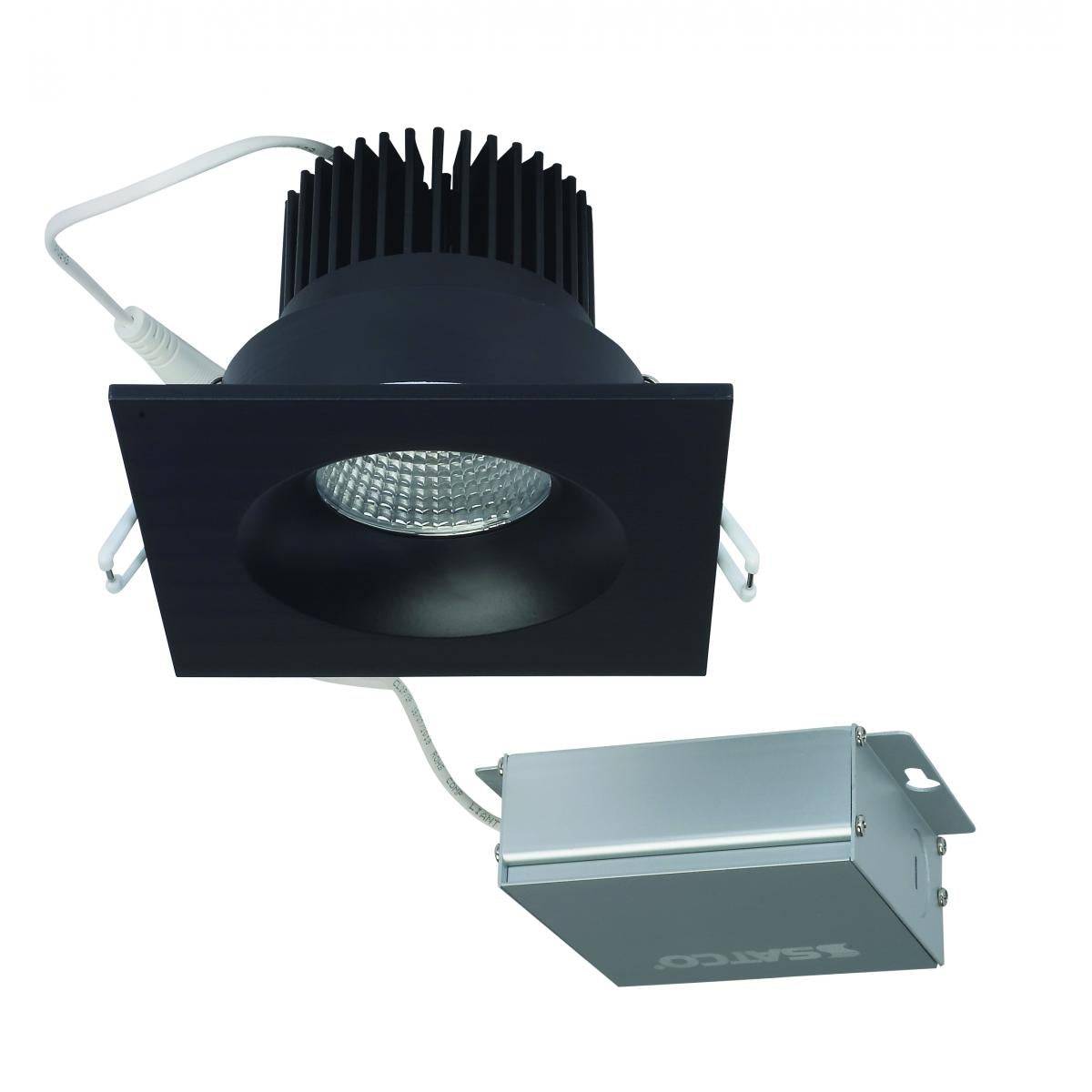

12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Black
S11634
Satco's 12 watt, 3.5 inch LED, direct wire downlight is an easy to install, low maintenance lighting solution for residential or commercial use. Illuminate your kitchen, living room, or work space with this square downlight that fits into tight and hard to reach spaces. This dimmable, black, LED fixture is rated for 50,000 hours of warm white light.
- Length: 4.38 inches, Width: 4.38 inches, Height: 3.00 inches
- Dimmable
- Wet location rated for indoor use
- 3000K Warm White Light
- Superior 90 CRI light quality
- 5 year limited warranty
- 840 lumens
- Rated for 50,000 hours
- FCC and RoHS compliant
General
| Status | Active |
| Wattage | 12W |
| Voltage | 120V |
| Finish | Black |
| CCT (Kelvin) | 3000K |
| Color Temperature | Warm White |
| Lumen Output | 840L |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 12W |
| Lumen Output | 840L |
| CCT (Kelvin) | 3000K |
| Color Temperature | Warm White |
| CRI | 90 |
| Voltage | 120V |
| Beam Angle | 40 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Sloped Ceiling | No |
Dimensions
| Length (in.) | 4.38 |
| Width (in.) | 4.38 |
| Height (in.) | 3 |
| Weight (lb.) | 1.18 |
Compliance
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| UL Application | Ceiling |
| Energy Star | Yes |
| ES Unique ID | ESID-2337203 |
| DLC Approved | No |
| Air Tight Rated | Yes |
| IC Rated | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Additional Information
| Additional Information | Integrated j-box for direct wire installation |
| Installation Notes | *If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973) |
| Warranty | 5 Year Limited - Fixtures |
Packaging
| Each UPC | 045923116346 |
| Each Quantity | 1 |
| Each Length (in.) | 6.06 |
| Each Width (in.) | 4.88 |
| Each Height (in.) | 4.80 |
