Description

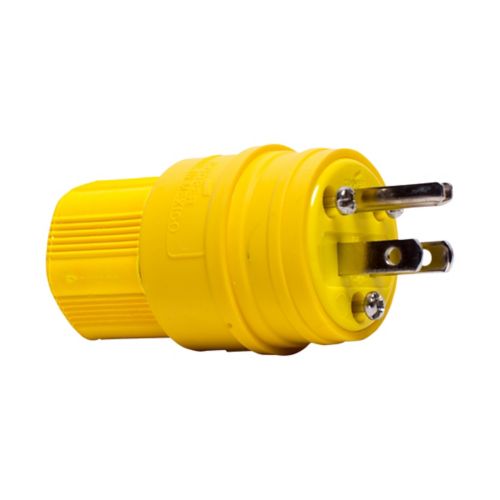

Eaton Watertight Straight Blade Plug, 15A, 125V
Eaton Arrow Hart watertight straight blade plug,#18-10 AWG,15A, Industrial,125V, Back wire, Yellow, Nickel-plated brass, IP67, Santoprene thermoplastic elastomer,5-15P, Two-pole,three-wire, grounding, Screw,0.30-0.65" in diameter, Thermoplastic
Installation Specifications
| Allowable wire size |
#18-10 AWG
|
| Connection type |
Screw
|
| Wiring method |
Back wire
|
Material Specifications
| Color |
Yellow
|
| Contact material |
Nickel plated brass
|
| Design type |
Straight blade
|
| Packaging type |
Bulk
|
Product Specifications
| Application |
Industrial
|
| Cord range |
0.30-0.65" in diameter
|
| Design type |
Straight blade
|
| Device grade |
Watertight special use
|
| Face/body material |
Santoprene thermoplastic elastomer
|
| Material |
Thermoplastic
|
| Style type |
Straight body
|
| Type |
Complex environment
|
General specifications
| Product Name |
Eaton Arrow Hart watertight straight blade plug
|
| Catalog Number |
14W47
|
| UPC |
040893630953
|
| Product Length/Depth |
1.81 in
|
| Product Height |
3.44 in
|
| Product Width |
1.81 in
|
| Product Weight |
0.25 lb
|
| Certifications |
cULus Listed
|
| Product Type |
Watertight
|
Electrical Ratings
| Amperage Rating |
15A
|
| NEMA configuration |
5-15P
|
| Number of poles |
Two-pole
|
| Number of wires |
3
|
| Receptacle type |
Two-pole, three-wire, grounding
|
| Torque rating |
14 lbf-inch
|
| Voltage rating |
125V
|
Environmental Specifications
| Environmental conditions |
Damp/wet
|
| Environmental resistance |
IP67
|
