Description

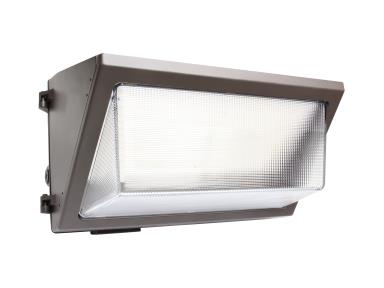

WALLMAX Wall Pack - Wattage 90/100/120 and CCT Select 3/4/5K, Photocell, Bronze
Features:
• CCT selectable between 3000K, 4000K or 5000K
• Integrated networked lighting control, c-Max Bluetooth Lighting Control
(with factory install options)
– Integral sensor receptacle
– Occupancy sensor
– High-end trim
– Energy monitoring
• Sealed housing - control nodes are mounted internally without impacting
the fixture sealing or aesthetics
• High Voltage Option: 277-480V (Contact Maxlite for details)
• Battery Backup Options - 0°C and -20°C (Contact Maxlite for details)
• 0-10V dimming driver
• Integral photocell with on/off switch option
Performance
Watts (W) 90/100/120
Voltage (V) 120-277
Delivered Lumens (lm) 16826/17664/17469
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/4000/5000
Power Factor 0.90
Min. Ambient Temp (°F) -40
Max. Ambient Temp (°F) 122
Dimensions
Size 17.9inX9.6inX9.1 in
Product Weight (lbs.) 14.10
Product Height (Inches) 9.10
Product Length (Inches) 17.90
Product Width (Inches) 9.60
