Description

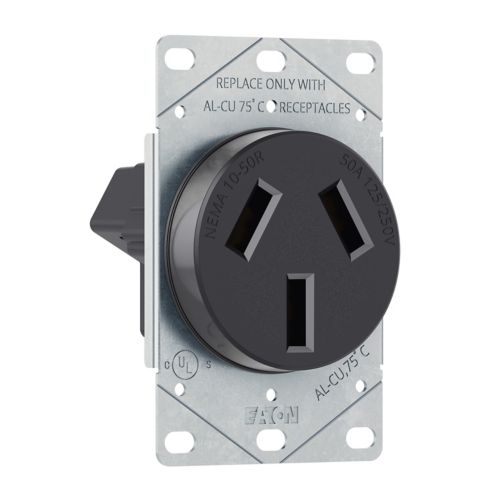

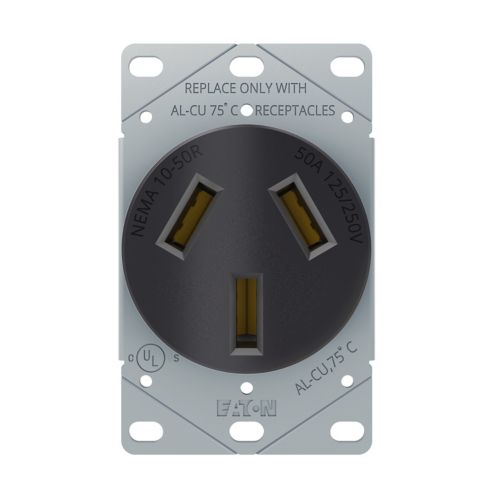

Eaton 50 -Amp 125/250-Volt Commercial Round Range Receptacle , Black
General specifications
| Product Name |
Eaton Arrow Hart power device receptacle
|
| Catalog Number |
AH32BK-F
|
| UPC |
032664005893
|
| Product Length/Depth |
2.29 in
|
| Product Height |
3.69 in
|
| Product Width |
2.25 in
|
| Product Weight |
0.3 lb
|
| Warranty |
Refer to warranty document.
|
| Certifications |
UL 498
C22.2 |
Product specifications
| Features |
Range receptacle
|
| Special features |
Range receptacle
|
| Type |
Flush mount receptacle
|
| Amperage Rating |
50A
|
| Voltage rating |
125/250V
|

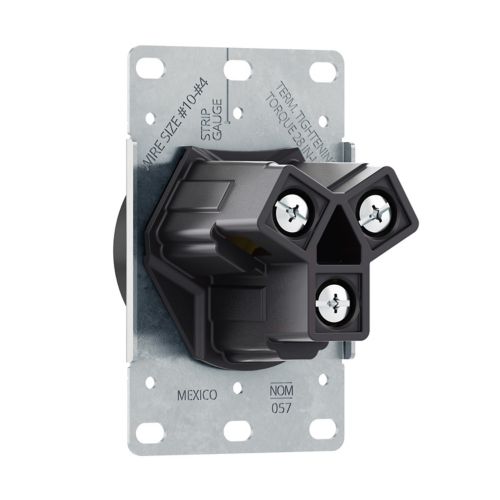

| Wiring method |
Back
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Three-pole
|
| Color |
Black
|
| Connection type |
Screw
|
| Style |
Power
|
| NEMA configuration |
10-50R
|
| Base color |
Black
|
| Design type |
Receptacle
|
| Receptacle type |
Three-pole, three-wire, non grounding
|
