Description

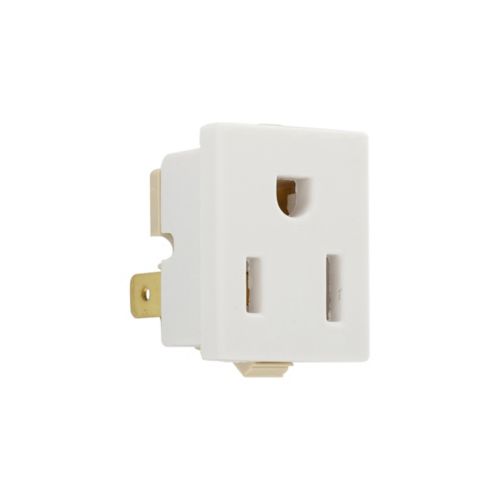

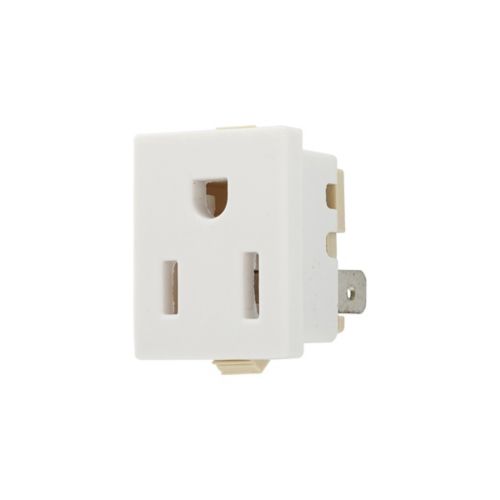

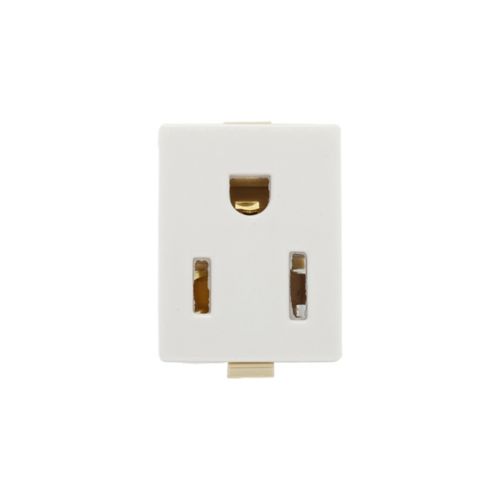

Eaton 15 Amp Snap-In Receptacle, Square, White- Quick Connect, Thermoplastic
General specifications
| Product Name |
Eaton panel mount/snap-in single receptacle
|
| Catalog Number |
67W-BU
|
| UPC |
032664599972
|
| Product Length/Depth |
0.94 in
|
| Product Height |
1.22 in
|
| Product Width |
0.65 in
|
| Product Weight |
0.04 lb
|
| Certifications |
cRUus
NOM Federal Specification Classification 6233 01 |
Product specifications
| Device type |
Receptacle
|
| Type |
OEM
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Plastic back
Plastic clip |
| Application |
Commercial
|
| Device grade |
Commercial specification grade
|
| Wiring method |
Quick connect
|
| Number of wires |
3
|
| Mounting method |
Snap-in
|
| Number of poles |
Two-pole
|
| Style type |
Snap-in, Rectangular
|
| Material |
Thermoplastic
|
| Color |
White
|
| Connection type |
Quick connect
|
| Allowable wire size |
#14-12 AWG
|
| NEMA configuration |
5-15R
|
| Design type |
Straight blade
|
| Face/body material |
Thermoset face
Polypropylene base |
| Receptacle type |
Single
|
