Description

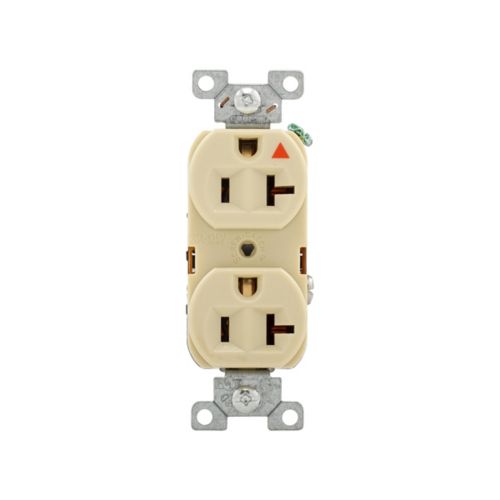

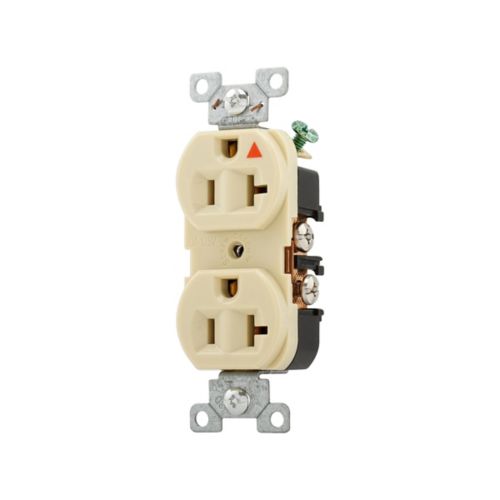

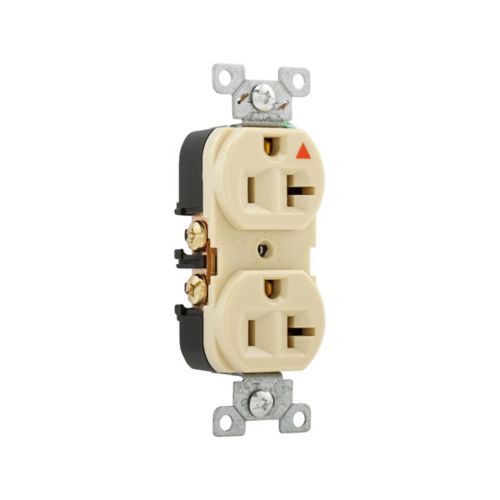

Cooper Ivory 20 Amp Duplex Receptacle- Isolated Ground, Industrial, 125V
General specifications
| Product Name |
Eaton Arrow Hart heavy-duty industrial specification grade duplex receptacle
|
| Catalog Number |
IG5362V
|
| UPC |
032664735455
|
| Product Length/Depth |
1.3 in
|
| Product Height |
4.19 in
|
| Product Width |
0.84 in
|
| Product Weight |
0.001 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
UL
NOM Federal Specification Classification 6233 01 |
Product specifications
| Device type |
Receptacle
|
| Type |
Duplex receptacle
|
| Amperage Rating |
20A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Isolated ground
|
| Application |
Industrial
|
| Device grade |
Heavy-duty industrial specification grade
|
| Wiring method |
Back and side
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Nylon
|
| Color |
Ivory
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
5-20R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
Glass-filled nylon base
High-impact nylon face |
| Receptacle type |
Duplex
|
