Description

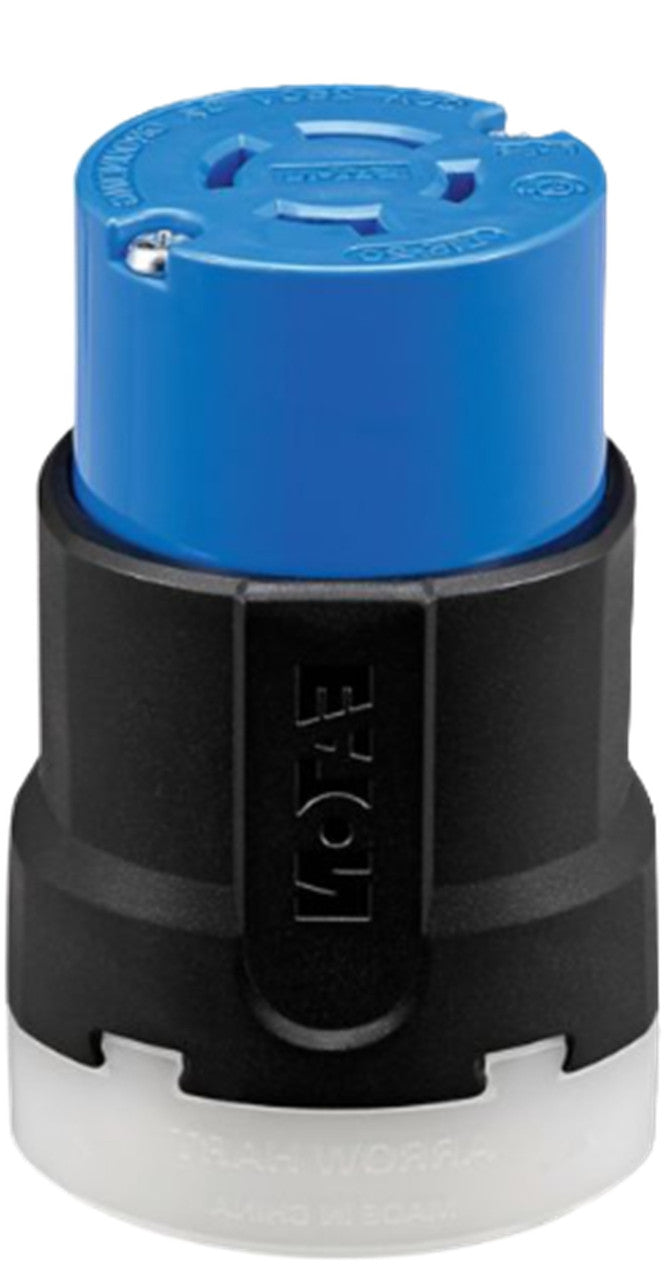

Cooper Color Coded Locking Connector, #14-8 AWG, 20A, Industrial, 3ØY 120/208V
General specifications
| Product Name |
Eaton Arrow Hart Color Coded Locking Connector
|
| Catalog Number |
AHCL1820C
|
| UPC |
032664759840
|
| Product Length/Depth |
2.13 in
|
| Product Height |
3.94 in
|
| Product Width |
2.3 in
|
| Product Weight |
0.001 lb
|
| Compliances |
RoHS Compliant
NAFTA |
| Certifications |
cULus Listed
NOM |
Product specifications
| Special features |
Voltage Color Coding
|
| Type |
Locking Connector
|
| Amperage Rating |
20A
|
| Voltage rating |
3ØY 120/208 V
|
| Application |
Industrial
|
| Wiring method |
Back
|
| Number of wires |
4
|
| Number of poles |
Four-pole
|
| Color |
Black
Blue |
| Cord diameter |
0.38-1.16 in (9.5-29.5 mm)
|
| Material |
Nylon
|
| Operating temperature |
-40 to 60 °C (-40 to 140 °F)
|
| Allowable wire size |
#14-8 AWG
|
| NEMA configuration |
L18-20
|
| Torque rating |
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
|
| Design type |
Ultra grip
|
| Face/body material |
Nylon
|
