Description

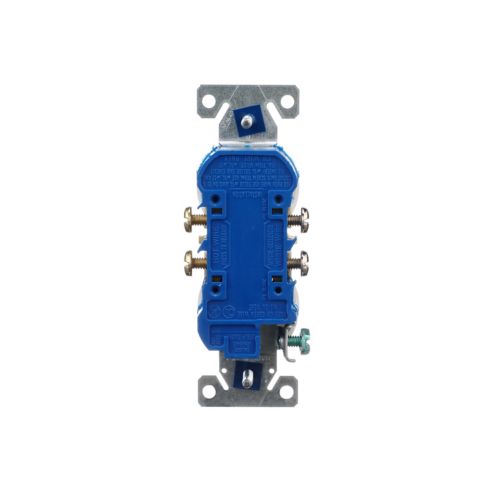

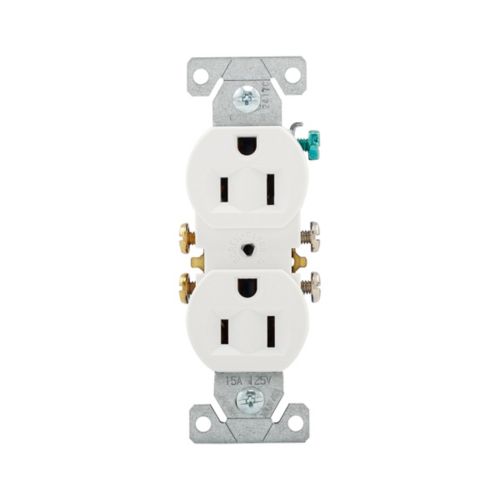

Cooper 15A White Duplex Recepticle- 125V, Impact-Resistant Thermoplastic
General specifications
| Product Name |
Eaton residential grade duplex receptacle
|
| Catalog Number |
270W
|
| UPC |
032664750830
|
| Product Length/Depth |
1.31 in
|
| Product Height |
4.19 in
|
| Product Width |
0.69 in
|
| Product Weight |
0.01 lb
|
| Compliances |
RoHS Compliant
NAFTA |
| Certifications |
UL
NOM Federal Specification Classification 6233 01 |
Product specifications
| Device type |
Receptacle
|
| Type |
Duplex receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Application |
Commercial/residential
|
| Device grade |
Standard grade
|
| Wiring method |
Side and push
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Thermoplastic
|
| Packaging type |
Single
|
| Color |
White
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
5-15R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
Impact-resistant thermoplastic
|
| Receptacle type |
Duplex
|
